structureViz: Linking Cytoscape and Chimera

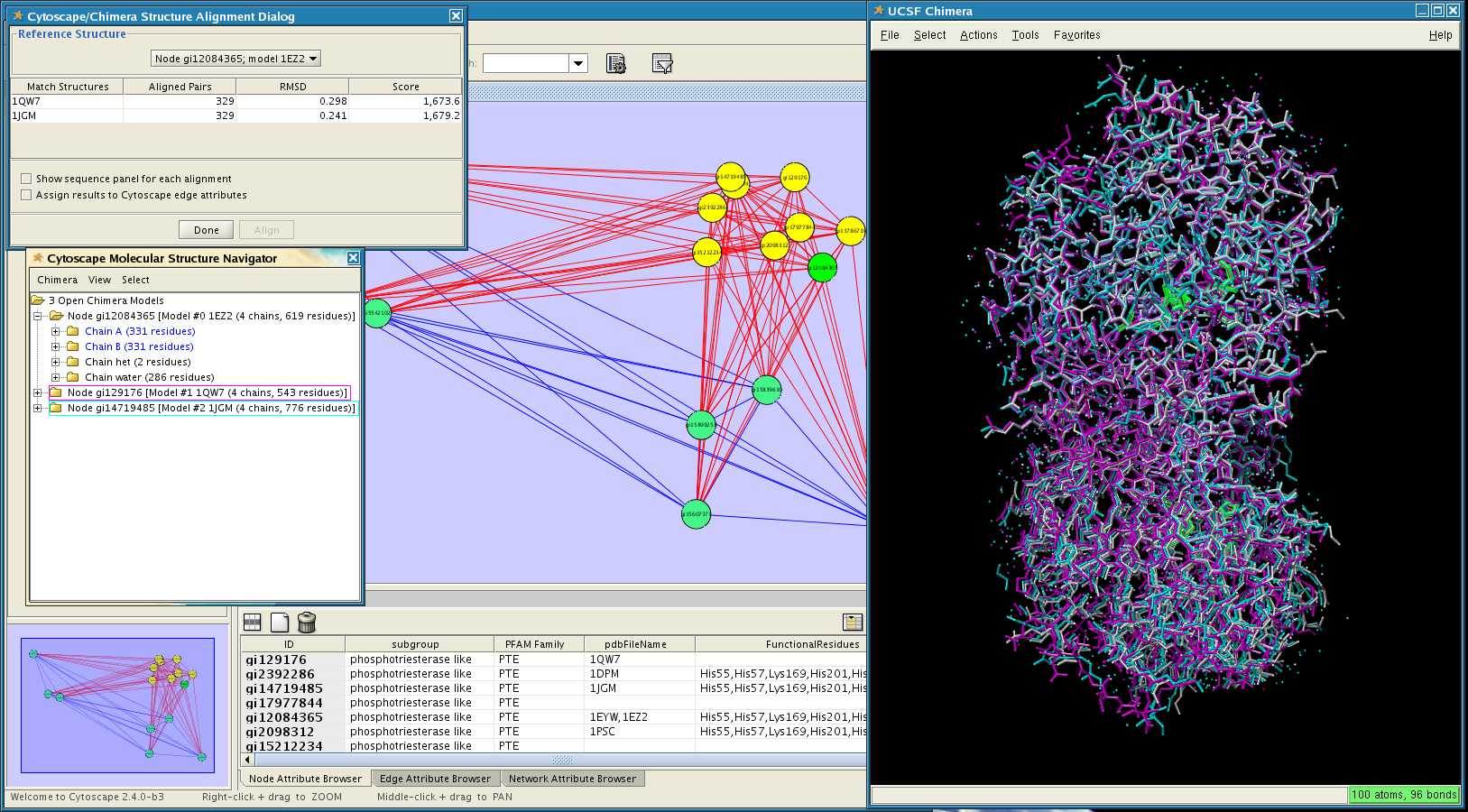

Figure 1. structureViz in action. In this screenshot, the PFAM family PTE (phosphotriesterase) has been opened in Cytoscape. Three of the available structures have been opened in UCSF Chimera and spatially aligned. Parts of one structure (pdb: 1EZ2) are selected, as indicated with green outlines in the Chimera window. Click on the image to enlarge it.

UCSF structureViz is a Cytoscape plugin that links visualization of biological networks in Cytoscape with visualization and analysis of molecular structures in UCSF Chimera. It is part of a broader effort to develop and apply tools for the visualization and analysis of biological context.

Networks have nodes and edges. For structureViz, molecular structures are associated with nodes using the node attributes. Macromolecular structures are specified by Protein Data Bank identifiers (PDB IDs) and small molecule structures by SMILES strings. Homology-modeled protein structures can also be associated, as detailed below.

As an alternative to interacting with Chimera directly, structureViz provides a simplified, tree-based interface to structures called the Cytoscape Molecular Structure Navigator. This interface allows selecting models, chains, and residues and adjusting their display. Basic interfaces are also provided for spatially aligning macromolecular structures and for analyzing steric clashes and hydrogen bonds.

Contents

  1. Installation
  2. Adding structure annotations to a Cytoscape network
  3. structureViz menus
  4. The Molecular Structure Navigator
    1. Top-level menus
    2. Context menus
      1. Generic actions
      2. Model actions
  5. Loading modeled structures
  6. Aligning structures
  7. structureViz CyCommands
  8. Sample data and resources
[Contents] [Top]

1. Installation

  1. If you haven't already done so, download and install UCSF Chimera.
  2. Install structureViz from the Cytoscape Plugin Manager (see the Manage Plugins option in the Plugins menu; structureViz is listed under the Analysis Plugins category).
  3. Restart Cytoscape.
  4. Now structureViz actions should be available in the Cytoscape Plugins menu and node context menus.
[Contents] [Top]

2. Adding structure annotations to a Cytoscape network

Annotating a network with structures entails creating new node attributes and populating those attributes with structure identifiers. The type of each attribute can be String (if multiple identifiers, a comma-separated list) or List (with each identifier given as a single string).

In addition, homology-modeled structures can be fetched from ModBase if the node ID is a ModBase-searchable type of sequence identifier and models are available for that sequence (see Loading modeled structures).

[Contents] [Top]

3. structureViz menus

structureViz provides two similar sets of menus, one under the Plugins→Sequence/Structure Tools top-level menu and the other as part of the node context menus under Structure Visualization. The structureViz context menus may be accessed by mouse right-click in the Cytoscape network window. The two sets of menus currently present the same options to the user, except that Find modeled structures and Select residues are only available from the node context menu.

Open structure(s)→
Allow the user to specify which of the structures associated with the currently selected node(s) should be opened in Chimera. This action is enabled when structureViz detects a node attribute with one of the recognized names for structure annotations (see Adding structure annotations...). PDB entries are fetched over the web from the RCSB PDB. Small molecule structures are generated from SMILES strings using the smi23d web service provided by the Cheminformatics Group at Indiana University. When a structure has been opened in Chimera, the Molecular Structure Navigator will appear.
Align structures
Open all structures associated with the currently selected node(s), and if there are at least two, invoke the Cytoscape/Chimera Structure Alignment Dialog (see Aligning structures). (To avoid opening all of the structures, instead open only the structures of interest with the Open structure(s)→ action described above and align them with Chimera→Align Structures→ in the Molecular Structure Navigator top-level menu.)
Select residues (node context menu only)
The Select residues menu is present only when the node has a value for the FunctionalResidues or ResidueList attribute. In that case, the relevant structures are opened (if they haven't been already) and the associated residues are selected in both Chimera and the Molecular Structure Navigator.
Find modeled structures (node context menu only)
Search ModBase for homology-modeled structures that match the ID for this node. The node ID must be a SwissProt, TrEMBL, GenPept or PIR sequence accession code. If modeled structures are available for the sequence, they are fetched over the web and opened in Chimera (see Loading modeled structures).
Close structure(s)→
Allow the user to specify which of the open structures should be removed from both Chimera and the Molecular Structure Navigator.
Exit Chimera
Close all structures and quit from UCSF Chimera.
[Contents] [Top]

4. The Molecular Structure Navigator

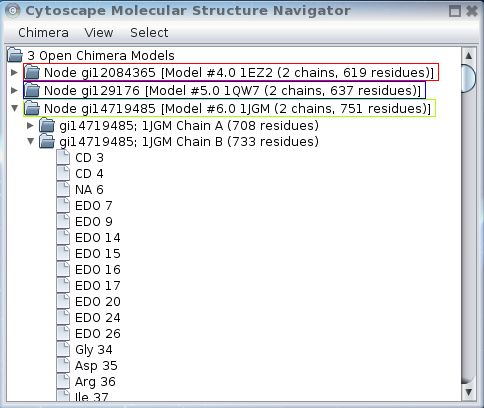

Figure 2. The Molecular Structure Navigator dialog. In this image, the Molecular Structure Navigator shows three open structures (models): 1EZ2, 1QW7, and 1JGM. The entry for 1JGM has been expanded to show the two chains, and the second chain has been expanded to show the initial residues in the PDB entry.

When structureViz is used to open structures in Chimera, the Molecular Structure Navigator appears (see Figure 2). This dialog provides an easy and convenient way to interact with structures regardless of a user's familiarity with Chimera. Each structure has three levels:

The levels in the hierarchy can be expanded and contracted. Selecting a model, chain, or residue in the Molecular Structure Navigator selects the corresponding structural element in Chimera.

In Figure 2, there are three entries at the model level, reflecting the three open structures. The model entry for 1JGM has been expanded to show the two chains that are part of this model (phosphotriesterase is a dimer), and the second chain (B) has been expanded to show the residues contained within that chain.

In addition to selection and navigation within the structural hierarchy, the Molecular Structure Navigator provides menus (top-level and context) for aligning and analyzing structures and adjusting their display. It serves as an alternative interface to UCSF Chimera, but the standard Chimera menus, tools, and commands can also be employed.

[Contents] [Top]

4.1 Top-level menus

The menu bar across the top of the Molecular Structure Navigator contains the following:

[Contents] [Top]

4.2 Context menus

Two categories of context menus can be accessed by mouse right-click in the Molecular Structure Navigator: those with generic actions, and those which also include special actions depending on the context level (model, residue, or chain).

[Contents] [Top]
4.2.1 Generic actions

Generic actions are always available, although the scope of the action depends on the context of the pop-up menu. When the mouse cursor is placed on a specific item (model, chain, or residue) when the menu is popped up, the action applies specifically to that item. If the mouse pointer is placed over an empty area, the action applies to any selected models, chains, or residues. Note that when nothing is selected, the context menu can not be popped up in an empty area.

Show→
Control the display of atoms and bonds in the current context.
All
Show all atoms.
Backbone only
Show backbone atoms only (these may be obscured by ribbons).
Sequence
Show the sequence of each chain in a separate window (Chimera's Sequence tool). In the residue context, the entire chain sequence will still be shown, but with any residue(s) selected in Chimera and the Molecular Structure Navigator highlighted in bright green.
Hide
Hide all atoms.
Focus
Adjust the view and center of rotation in Chimera to focus on the models, chains, or residues specified by the context.
Color→
Rainbow by chain
(only available in the model context) Assign each chain in the model a separate color.
Rainbow by residue
(only available in the model or chain context) Rainbow-color-code the residues in each chain, starting from blue and ending at red.
Atoms/Bonds→
Change atom/bond color.
By element
Color-code atoms by element: grey for carbon, red for oxygen, blue for nitrogen, yellow for sulfur, etc. (see element colors).
By heteroatom
Use the model default color for carbon, color-code other atoms by element.
Ribbons→
Change ribbon color.
Surfaces→
Change surface color.
Labels→
Change label color.
Depict→
Control display styles. Different styles can serve to highlight different aspects of a structure, from overall shape to specific atomic interactions.
Wire
Show bonds as wires and atoms as dots; this style is the simplest and least computationally demanding.
Stick
Show bonds as sticks and atoms as endcaps (rounded ends).
Ball & Stick
Show bonds as sticks and atoms as balls.
Sphere or CPK
Show atoms as spheres using their VDW radii.
Ribbon→
A ribbon is a cartoon-like representation that traces the backbone of a protein or nucleic acid. It is particularly useful for viewing the secondary structure of a protein.
Hide
Hide ribbon.
Flat
Show flat ribbon.
Edged
Show edged ribbon (rectangular cross-section).
Round
Show rounded ribbon (rounded cross-section).
Surface→
Molecular surfaces highlight the overall shapes of structures and their binding pockets.
Hide
Hide molecular surface.
Solid
Show surface as solid. To reveal underlying objects, adjust Transparency (below).
Mesh
Show surface as mesh.
Dot
Show surface as dots.
Transparency→
Adjust surface transparency.
Label→
Hide
Hide atom and residue labels.
Atom name
Label atoms by name.
Element
Label atoms by element symbol.
IDATM type
Label atoms by IDATM type.
Residue
Label residues by identifier.
Clear selection
Clear the selection (deselect all atoms). This action applies to all selected items, regardless of the context of the pop-up.
Delete selection
Delete all atoms in the current selection. This action applies to all selected items, regardless of the context of the pop-up. Note that deleted atoms cannot be restored except by reopening the original structure, and that deletion will also remove any corresponding ribbon or surface.

[Contents] [Top]
4.2.2 Model actions
Close model(s)
Close all of the models in the current context. This will remove them from the Molecular Structure Navigator as well as closing them in Chimera
Select→
Select parts of the models in the current context.
Protein
Select all amino acid residues.
Nucleic acid
Select all nucleic acid residues.
Ligand
Select all ligand residues.
Ions
Select all monatomic ions.
Solvent
Select all solvent residues.
Secondary structure→
Select amino acid residues according to their secondary structure assignments:
Helix
Strand
Coil   (non-helix, non-strand amino acid residues)
Functional Residues
Select functional residues (available when the appropriate node attribute has been assigned).
[Contents] [Top]

5. Loading modeled structures

If the ID of a node is a SwissProt, TrEMBL, GenPept or PIR sequence accession code, ModBase can be searched for homology-modeled structures of the corresponding sequence using Find modeled structures in the node context menu. If ModBase contains modeled structures of that sequence, they are fetched over the web and opened in Chimera. Chimera also displays a dialog, the ModBase Model List, that lists the models and some associated information. There may be a large number of modeled structures, whereas a user may want only one. Clicking a row in the ModBase Model List shows just the corresponding model (hides the others in the list), and the scores and other information in the list can help to identify an appropriate model for further analysis. To close all other models in Chimera, select the desired model in the Molecular Structure Navigator, invert the selection (Select→Invert selection), and then use Close model(s) in the model context menu.

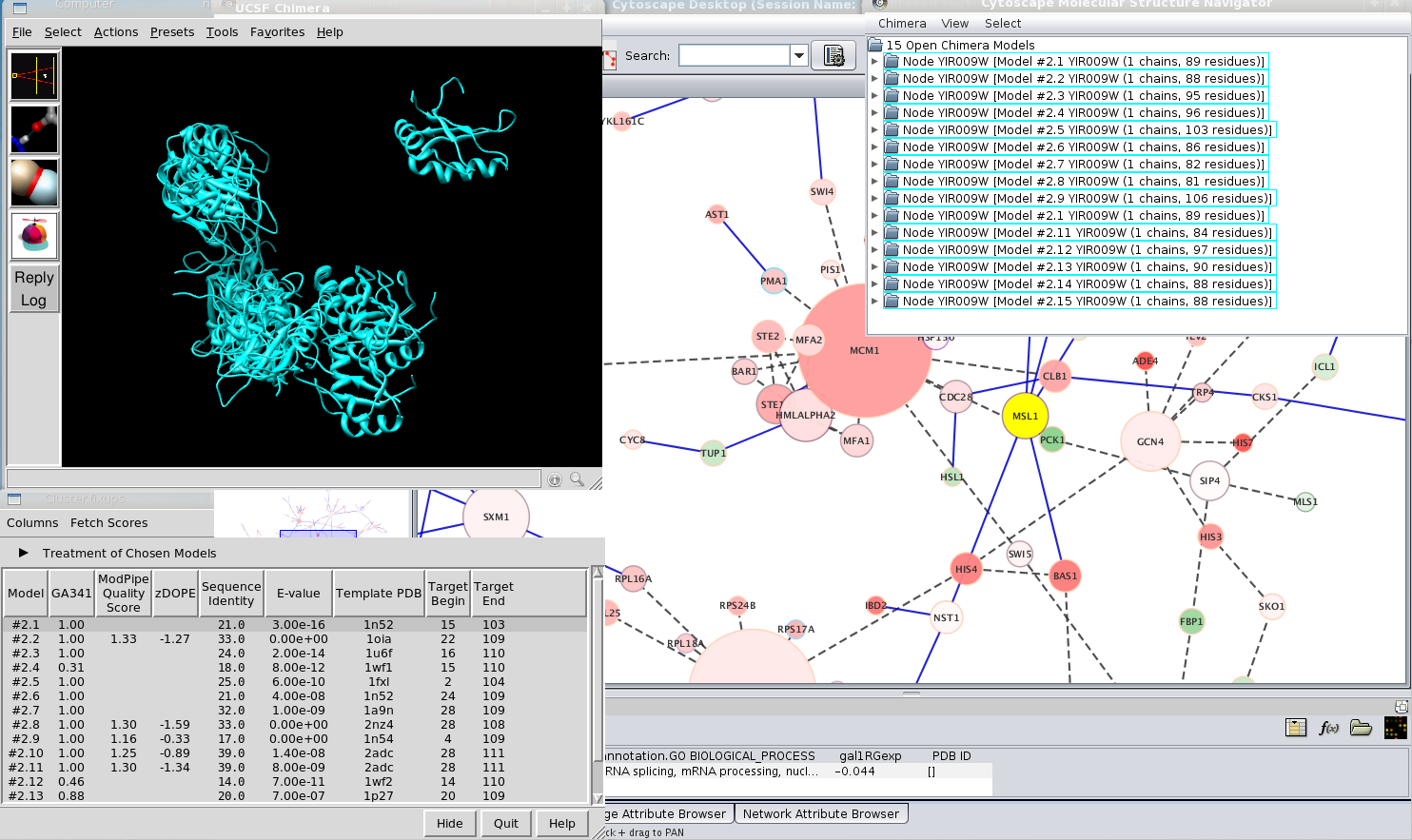

Figure 3. Importing modeled structures. In this image, the Molecular Structure Navigator shows the result of finding modeled structures for node MSL1, which has the ID YIR009W. UCSF Chimera has queried ModBase and retrieved the results.

[Contents] [Top]

6. Aligning structures

Structures can be spatially aligned (superimposed) and the corresponding alignment scores assigned to edges in the Cytoscape network. The Cytoscape/Chimera Structure Alignment Dialog can be invoked from the structureViz menu or the Molecular Structure Navigator top-level menu. In the latter menu, Align structures includes suboptions by chain for choosing specific chains to use in the alignment, versus by model for choosing whole models.

In the dialog, it is necessary to specify one reference model (chain, if aligning by chain) and one or more models (chains) to match. Each structure to match is superimposed on the reference structure by first creating a sequence alignment and then fitting the aligned residue pairs. The sequence alignment is constructed using a score based both on residue type (as in a traditional sequence alignment) and on secondary structure assignments (preferentially aligning helix with helix and strand with strand). If models were chosen rather than specific chains, all pairwise combinations of chains in the two models are aligned and the chain pair with the best score is used for the fit. The fit is iterated to remove far-apart residue pairs so that only a well-superimposed structural core is used for the final fit. (For details, see the Chimera MatchMaker documentation; default alignment and matching settings are used.) Additional dialog options:

Users should be aware that the scores may not correlate well with structural similarity or superposition quality when the sequences are dissimilar and hard to align. Successful superposition only requires the sequence alignments to be partly correct, as incorrect regions tend to be omitted during fit iteration. Omitting parts of the sequence alignment from the fit will affect the number of residue pairs used and the RMSD, even if the resulting superposition is entirely correct. However, in typical usage, the proteins are similar and their sequences easy to align.

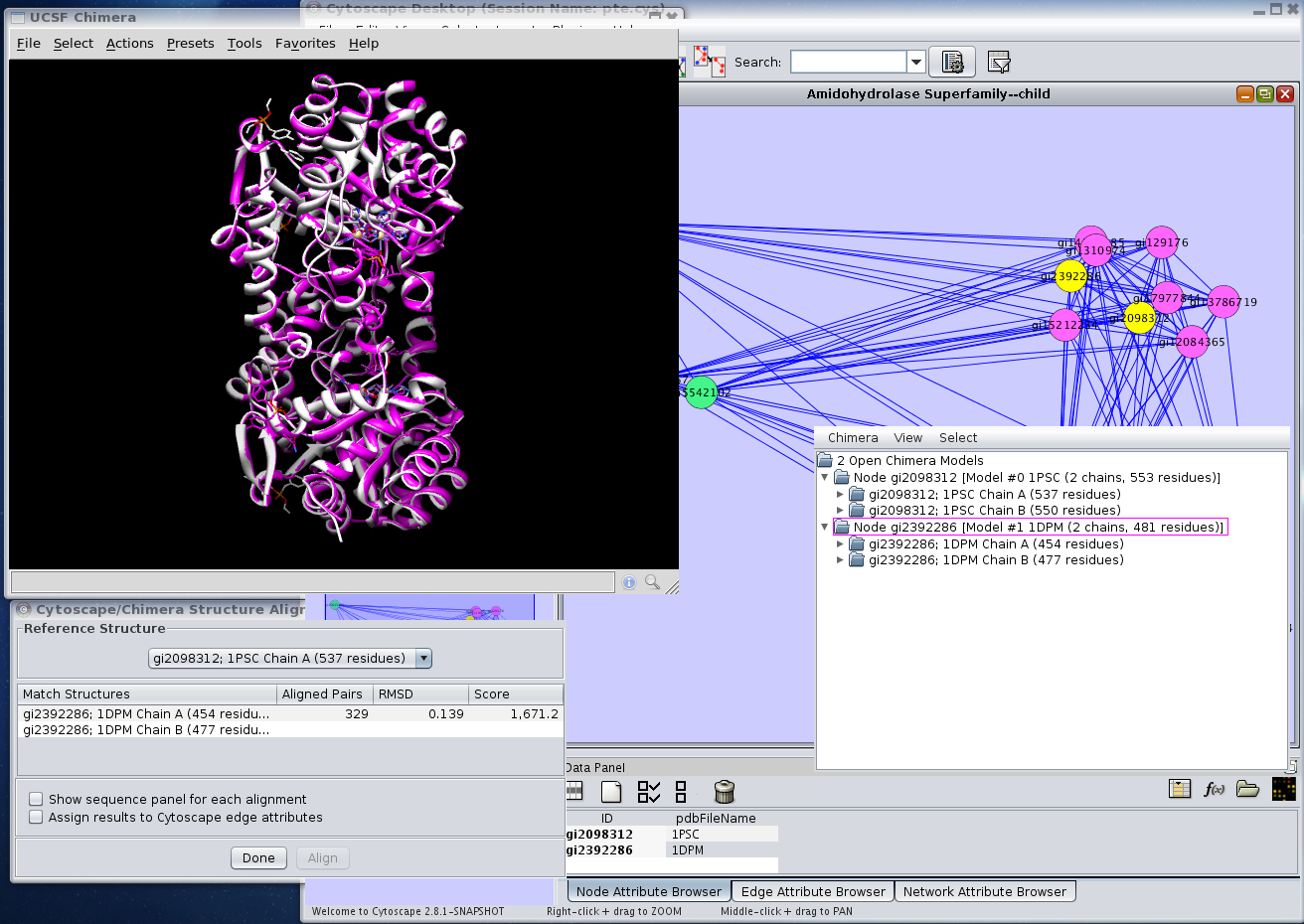

Figure 4. Using UCSF Chimera's MatchMaker capabilities to perform an alignment of two structures. In this image two structures: 1PSC and 1DPM had been loaded into Chimera and aligned (Chimera→Align structures→by chain).

[Contents] [Top]

7. structureViz CyCommands

In order to facilitate the use of structureViz and UCSF Chimera from other plugins, the structureViz plugin exports a number of commands using the CyCommand mechanism. These commands may be used by other plugins, or as part of scripts that are executed using the commandTool plugin.

There are a number of arguments which are repeated for several of the commands. In particular: structurelist, atomspec, and structuretype are defined here and referenced from each of the commands outlined below:

structurelist
This a list of structures which may be specified as either a list of open PDB identifiers, model numbers, or Cytoscape nodes that are associated with open structures. As with other lists, these values are comma-separated and enclosed in quotes. Examples:
"1tup,1gzh,1tsr"
"#0,#2"
"tp53"
selected
all
Note the special keywords selected, which will be converted into all of the models which are selected or partially selected, and all which refers to all currently open structures.
atomspec
An atomspec is the specification for an atom in Chimera, however structureViz will only allow specification to the residue level. The general form of the atomspec is:
#model.submodel:residuelist.chain
where model and submodel are the model and submodel numbers, respectively; residuelist is a comma-separated list of residues; and chain is the chain identifier, which is usually a letter (e.g. 'A'). The model is required, but all other specifiers are optional. For example, to specify chain 'A' for the first model, all that is required is #0:.A or even #0.A (this form is not legal in Chimera, but it is allowed in structureViz). As with structurelist a special form of the atomspec is the selected keyword, which refers to the currently selected models, chains, or residues. More information on the Chimera atom specification syntax is available in the Chimera User's Guide. structureViz supports only a limited set of the full specification provided by Chimera.
structuretype
This argument is used to control the selection or display of structural components based on the class or chemical attribute of the component. The legal keywords are:
full: Display or select the full backbone.
minimal: Display or select the minimal backbone.
ions: Display or select ions
ligand: Display or select ligands
main: Display or select the main structure
nucleic acid: Display or select nucleic acids
protein: Display or select proteins
solvent: Display or select the solvent
helix: Display or select components with helical secondary structure
strand: Display or select components with strand (or sheet) secondary structure
coil: Display or select components that are neither helix nor strand
with CA/C1': Display or select atoms in side chains including the CA (for amino acids) and C1' (for nucleic acids)
without CA/C1': Display or select atoms in side chains excluding the CA and/or C1'

In general, all of the commands include several arguments, which are described below the command description. The arguments and their values are specified as name, value pairs separated by an equals sign (=). For example, to align two structures, the user might enter:

	align structures reference="1tup" structurelist="1gzh,1tsr" assignattributes=false showsequences=true
Note that the text arguments are placed within quotes.

If the argument has a default value, that value is shown below in brackets ([]). Literal values, such as the booleans true and false or the keyword selected are shown in bold, while descriptions of the argument type such as atomSpec or chainSpec are shown in italics, usually with an example following in parentheses.

structureviz align chains
Perform sequence-driven structural superposition on a group of structures by chain.
Arguments:
  • referencechain=chainSpec: This is the chain to be used as the reference for the pairwise alignments. The format is the same as an atomspec except that only the chain component is used.
  • chainlist=chainlist
  • : The list of chains to align to the referencechain, where each element in the list is an atomspec from which only the model and chain component are extracted.
  • showsequences=[false]: If true, the sequence alignment for each pair of structures is shown.
  • createedges=[false]: If true new edges will be created in the Cytoscape network that represent the similarity of each structure with the reference chain.
  • assignattributes=[true]: If true the RMSD, Alignment Score, and number of aligned pairs are added to the Cytoscape network as attributes.
structureviz align structures
Perform sequence-driven structural superposition on a group of structures.
Arguments:
  • reference=structure: This is the structure to be used as the reference for the pairwise alignments. The format is the same as an structurelist except that only a single structure may be specified.
  • structurelist=structurelist
  • : The list of structures to align to the reference structure.
  • showsequences=[false]: If true, the sequence alignment for each pair of structures is shown.
  • createedges=[false]: If true new edges will be created in the Cytoscape network that represent the similarity of each structure with the reference chain.
  • assignattributes=[true]: If true the RMSD, Alignment Score, and number of aligned pairs are added to the Cytoscape network as attributes.
structureviz clear clashes
Clear the clashes shown in the display and disable clash detection.
No arguments
structureviz clear hbonds
Clear the hydrogen bonds shown in the display.
No arguments
structureviz clear selection
Clear all selections.
No arguments
structureviz close
Close some or all of the currently opened structures.
Arguments:
  • structurelist=[selected]: This is the list of structures (in the form of a structurelist to be closed.
structureviz color
Color part or all of a structure. This command allows the user to specify the color for residues, labels, ribbons, and surfaces. The color is specified as a recognized Chimera color name or a hexidecimal RGB value: #rrggbb.
Arguments:
  • preset=preset_type: One of the recognized Chimera presets (e.g. preset="interactive 1"). If this argument is used, no structurelist or atomspec argument is required (and if provided, is ignored).. All other color arguments require either a sturcturelist or an atomspec, or an atomspec of "selected" is assumed.
  • residues=color: set the color of the targeted residues to color.
  • labels=color: set the color of the targeted labels to color.
  • ribbons=color: set the color of the targeted ribbons to color.
  • surfaces=color: set the color of the targeted surfaces to color.
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to apply the specified colors to.
  • atomspec=atomspec: This is the list of models, chains, or residues (in the form of a list of atomspecs to apply the specified colors to.
structureviz depict
Change the depiction (display style) of a structure.
Arguments:
  • preset=preset_type: One of the recognized Chimera presets (e.g. preset="interactive 1"). If this argument is used, no structurelist or atomspec argument is required (and if provided, is ignored).. All other depict arguments require either a sturcturelist or an atomspec, or an atomspec of "selected" is assumed.
  • style=[none|wire|stick|bs|sphere|cpk]: This is the style of depiction to use for residues in the specified structurelist or atomspec argument, but does not change the visibility of those items. If all of the resides of a structure are hidden (for example because a ribbon representation is being used) this command will appear to have no effect. You will need to first show the sidechains for those residues.
  • ribbonstyle=[none|flat|edged|round]: This is the style of depiction to use for ribbons in the specified structurelist or atomspec argument. Unlike the style argument setting the ribbonstyle acts to display the ribbon for the selected structural elements. Setting the ribbonstyle to none hides the ribbon.
  • surfacestyle=[none|solid|mesh|dot]: This is the style of depiction to use for surfaces in the specified structurelist or atomspec argument. Like ribbonstyle this argument causes the surface to be calculated and displayed.
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to change the depiction of.
  • atomspec=atomspec: This is the list of models, chains, or residues (in the form of a list of atomspecs to change the depiction of.
structureviz exit
Exit Chimera.
No arguments
structureviz find clashes
Find clashes between two models or parts of models.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to detect classed between.
  • atomspec=[selected]: This is the list of models, chains, or residues (in the form of a list of atomspecs to detect clashed between.
  • continuous=[true]: This argument tells Chimera to continually update the clash detection and the display of the clashing residues.
structureviz find hbonds
Find hydrogen bonds between two models or parts of models.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to look for hydrogen bonds between.
  • atomspec=[selected]: This is the list of models, chains, or residues (in the form of a list of atomspecs to look for hydrogen bonds betwee.
structureviz focus
Focus the Chimera display on a structure or part of a structure. If no arguments are supplied, the entire scene is focused.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to focus on.
  • atomspec=atomspec: This is the list of models, chains, or residues (in the form of a list of atomspecs to focus on.
structureviz hide
Hide parts of a structure.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to hide.
  • atomspec=[selected]: This is the list of models, chains, or residues (in the form of a list of atomspecs to hide.
  • structuretype=structuretype: The structure type to narrow the selection to or to implicitly select for hiding.
structureviz list chains
List the chains in a structure.
Arguments:
  • structurelist=[all]: This is the list of structures (in the form of a structurelist to list the chains for.
structureviz list residues
List the residues in a structure.
Arguments:
  • structurelist=[all]: This is the list of structures (in the form of a structurelist to list the residues for.
  • chainlist=chainlist: The list of chains to show residues for, where each element in the list is an atomspec from which only the model and chain component are extracted.
Only one of structurelist or chainlist may be specified.
structureviz list selected chains
List all of the currently selected chains in Chimera.
Arguments:
  • structurelist=[all]: This is the list of structures (in the form of a structurelist to list the selected chains for.
structureviz selected models
List all of the currently selected models in Chimera.
No arguments
structureviz list selected residues
List the currently selected residues in Chimera.
Arguments:
  • structurelist=[all]: This is the list of structures (in the form of a structurelist to list the selected residues for.
  • chainlist=chainlist: The list of chains to show selected residues for, where each element in the list is an atomspec from which only the model and chain component are extracted.
Only one of structurelist or chainlist may be specified.
structureviz list structures
List all of the open structures.
No arguments
structureviz move
Move (translate) a model.
Arguments:
  • x=x location: The x coordinate to move the model to.
  • y=y location: The y coordinate to move the model to.
  • z=z location: The z coordinate to move the model to.
  • structurelist=[selected]: This is the list of structures (in the form of a structurelist to be moved.
structureviz open structure
Open a new structure in Chimera.
Arguments:
  • pdbid=pdbid: The ID of the structure in the PDB. This will cause Chimera to fetch the designated structure from the PDB.
  • modbaseid=modbaseid: The ID of a modeled structure in ModBase. Chimera will fetch the modeled structure from ModBase and display it.
  • nodelist=nodelist: A list of nodes in Cytoscape to attempt to find attributes with structural identifiers and open all the identifiers for those nodes.
  • showdialog=[false]: if true show the Molecular Structure Navigator dialog after opening the structure in Chimera.
structureviz rainbow
Color part or all of a structure in a rainbow scheme.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to color in a rainbow.
  • atomspec=[selected]: This is the list of models, chains, or residues (in the form of a list of atomspecs to color in a rainbow.
structureviz rotate
Rotate a model.
Arguments:
  • x=angle: The amount (in angles) to turn around the x axis.
  • y=angle: The amount (in angles) to turn around the y axis.
  • z=angle: The amount (in angles) to turn around the z axis.
  • center=centerspec: The center of the rotation. This may be one of the keywords: view, models, or front or an x,y,z value representing a point in the scene, or an atomspec for designating a portion of the structure to rotate around.
  • structurelist=[selected]: This is the list of structures (in the form of a structurelist to be rotated.
structureviz select
Select a structure or parts of a structure.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to select.
  • atomspec=[selected]: This is the list of models, chains, or residues (in the form of a list of atomspecs to select.
  • structuretype=structuretype: The structure type to select.
structureviz send
Send a command to Chimera.
Arguments:
  • command=chimera command: The command to send to Chimera. No special parsing or handling is done on the string. For a list of Chimera commands and syntax, see the Chimera User's Guide.
structureviz show
Show parts of a structure.
Arguments:
  • structurelist=structurelist: This is the list of structures (in the form of a structurelist to show.
  • atomspec=[selected]: This is the list of models, chains, or residues (in the form of a list of atomspecs to show.
  • structuretype=structuretype: The structure type to narrow the selection to or to implicitly select for displaying.
[Contents] [Top]

8. Sample data and resources


Laboratory Overview | Research | Outreach & Training | Available Resources | Visitors Center | Search
