Trajectory and Ensemble Analysis Tutorial

This tutorial focuses on visualization and analysis of molecular dynamics (MD) trajectories and other structural ensembles with the MD Movie tool. Part 1 uses an MD trajectory of a collagen peptide, and Part 2 uses an NMR ensemble of Met-enkephalin.


Part 1 - Collagen Peptide

We will view an MD trajectory of the nonmutant collagen peptide described in:

R. J. Radmer and T. E. Klein, "Severity of Osteogenesis Imperfecta and Structure of a Collagen-like Peptide Modeling a Lethal Mutation Site" Biochemistry 43:5314 (2004).
(Thanks to the authors for providing the data!) To follow along, download the data files: On Windows/Mac, click the chimera icon; on UNIX, start Chimera from the system prompt:
unix: chimera

A basic Chimera window should appear after a few seconds. Show the Command Line (Tools... General Controls... Command Line) and start MD Movie (Tools... MD/Ensemble Analysis... MD Movie). In the resulting dialog, the inputs can be specified in two different ways:

Once the inputs have been specified, click OK. The first set of coordinates will be displayed and the MD Movie controller will appear. Show the structure with sticks and ribbons, color by element, and undisplay the hydrogens:
Command: repr stick
Command: ribbon
Command: ribrepr smooth
Command: col byelement
Command: ~disp H
Move and scale the structure as desired throughout the tutorial. The structure contains three chains. Each chain is in a left-handed polyproline II helix conformation, and together the chains form the right-handed triple helix characteristic of fibrillar collagen. The ribbons are narrow because the peptides are not in a standard alpha-helical conformation.

MD Movie
controller buttons
Use the MD Movie controller to play the trajectory. From left to right, the buttons mean: play backward continuously; go back one step; stop; go forward one step; and play forward continuously. The rate of continuous play can be adjusted with the Playback speed slider. The Frame number is reported and can also be entered directly to view a specific frame. Frame number and Step size changes take effect when return (Enter) is pressed. If the controller becomes obscured by other windows, it can be raised using its instance in the Tools menu (near the bottom of the menu, below the horizontal line).

Show the sequence with Tools... Structure Analysis... Sequence. Fibrillar collagen typically contains many -Gly-X-Y- repeats, where X is often Pro (proline) and Y is often Hyp (hydroxyproline). Both Pro and Hyp are shown as P in the sequence panel. Mousing over the sequences shows that the residues in the peptides are numbered 1-34, 35-68, and 69-102, respectively. Selecting residues highlights both the sequences and the structures:

Command: sel :gly
Command: sel :pro
Command: sel :hyp
Close the sequence panel.

It may be useful to hold certain atoms steady during trajectory playback. For example, hold Glu-86 steady to view its interactions:

Command: sel :86
(from the controller menu) Actions... Hold selection steady
Command: color magenta sel
Command: ~sel
Even though it is no longer selected, residue 86 will be held steady during playback (as possible; there will still be internal motions) until Hold selection steady with a different selection or Stop holding steady is used. The structure can still be moved with the mouse, however. Try playing the trajectory with residue 86 held steady and then without holding any atoms steady (from the controller menu, choose Actions... Stop holding steady).

We will create a short movie of several frames in the trajectory. The following procedure is just one example; there are many possibilities of what to show, how to show it, whether to use a script, and so on.

Adjust the Chimera window to the dimensions desired for the movie. If needed, use the Side View (Tools... Viewing Controls... Side View) to adjust the clipping planes. Turn off the ribbon to reveal the backbone atoms:

Command: ~ribbon
Use 2D Labels to add a title (Tools... Utilities... 2D Labels). When the Mouse setting in the 2D Labels dialog is labeling, the left mouse button (button 1) is reassigned to labeling: clicking starts a new 2D label and previously created 2D labels can be repositioned by dragging. Click in the Chimera window where you would like to start a title and type in the title text; drag the text if you want to reposition it. Adjust the Font size and Color (click the color well, use the Color Editor) to your liking. Changing the Mouse setting to normal returns the left mouse button to its previous function (by default, rotation of models).

Create another 2D label, this time using the 2dlabels command so that the label will have a name:

Command: 2dlabels create mylabel text temp
This label will be used to display the frame number. Make sure that the Mouse setting in the 2D Labels dialog is labeling, then drag the temporary text to near the lower left corner of the Chimera window. Adjust its Font size and Color to your liking, then Close the 2D Labels dialog.

Next, define a script to execute at each frame. Halt any playback. From the MD Movie controller menu, choose Per-Frame... Define script. Enter a script to be interpreted as Chimera commands:

findhbond linewidth 2 color yellow
2dlabels change mylabel text "frame <FRAME>"
Uncheck the option to Use leading zeroes... This script will calculate the hydrogen bonds in each frame, show them as yellow lines, and display the current frame number in the label named mylabel. Click OK to dismiss the dialog with the script. Play a few steps by clicking the button to go forward or backward one step at a time. The number and arrangement of H-bonds vary somewhat from step to step. (Although the number of H-bonds cannot be accessed in Chimera commands, a Python script could be used to display this information. For example, hbcount.py would show the H-bond count instead of the frame number in mylabel.)

Halt any playback, but move the Playback speed slider all the way to the right. From the controller menu, choose File... Record movie. If a dialog with an MPEG license agreement appears, click Accept since the movie will not be used for commercial purposes. In the dialog for recording, choose a File type you will be able to play back on your computer (the choices are MPEG-1, MPEG-2, MPEG-4, AVI MSMPEG-4v2, and Quicktime). Change the Ending frame to 25, specify a convenient name and location for the output file, and click Record. Frames 1-25 will then be played, saved as images, and automatically assembled into a movie file. (Do not obscure any parts of the Chimera window while this is occurring.) View the resulting 1-second movie with the appropriate application on your computer.

Click Quit on the controller to close the trajectory and exit from MD Movie. An easy way to delete all of the 2D labels is with File... Close Session. Go on to Part 2 below, OR terminate the Chimera session:

Command: stop


Part 2 - Met-Enkephalin

We will view an NMR ensemble of Met-enkephalin in negatively charged bicelles, as described in:

I. Marcotte, F. Separovic, M. Auger, and S. M. Gagne, "A Multidimensional 1H NMR Investigation of the Conformation of Methionine-Enkephalin in Fast-Tumbling Bicelles" Biophys J 86:1587 (2004).
To follow along, download the data file 1plx.pdb.

With Chimera started and the Command Line shown (as in Part 1), choose Tools... MD/Ensemble Analysis... MD Movie. In the resulting dialog, choose PDB as the Trajectory format and indicate that the frames are contained in a single file. Browse to the file 1plx.pdb, then click OK (alternatively, a metafile in the same directory as 1plx.pdb could have been used).

The first set of coordinates will be displayed and the MD Movie controller will appear. Show the structure with sticks colored by element:

Command: repr stick
Command: col byelement
Move and scale the structure as desired throughout the tutorial. This structure is Met-enkephalin, with the sequence Tyr-Gly-Gly-Phe-Met. Enkephalins are neuropeptides that activate opioid receptors. Different subtypes of opioid receptors mediate different but overlapping responses in the body. For example, molecules that selectively activate μ-opioid receptors are more effective for treating severe pain than molecules that selectively activate δ-opioid receptors, but are also more likely to cause constipation. The conformations of molecules that bind opioid receptors (enkephalins, morphine, etc.) are of interest because they influence the selectivity of receptor binding and thus the physiological response.

Use the MD Movie controller to flip through the different conformations, as described above. The frames do not reflect time ordering, as this is an NMR ensemble rather than a trajectory. If desired, simplify the view by undisplaying hydrogens:

Command: ~disp H

It is thought (see the reference and papers cited therein) that a conformation of enkephalin in which the Tyr and Phe rings point in different directions (like frames 1 and 25) binds to μ-opioid receptors and a conformation in which they point toward each other (like frames 2 and 80) binds to δ-opioid receptors.

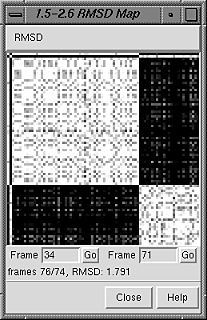

One way to analyze the ensemble is to calculate root-mean-square deviations (RMSDs) between pairs of frames. From the controller menu, choose Analysis... RMSD map. Click Apply on the RMSD parameters dialog to perform the calculation without closing the dialog. This will compute all pairwise RMSDs between frames and show the result as a map in grayscale. After the initial calculation, the map will be recolored to enhance contrast.

In the RMSD map, the axes are frame numbers; lighter squares reflect pairs of frames with lower RMSDs (more similar structures) and darker squares reflect pairs of frames with higher RMSDs (less similar structures). Mousing over the map shows the RMSD values and the numbers of the frames being compared. Clicking on the map enters the corresponding pair of Frame numbers below the map. Clicking Go then displays that frame in the main Chimera window.

Roughly, the upper left block of white in the map represents conformations more similar to to a μ-binding conformation, and the lower right block of white represents conformations more similar to a δ-binding conformation. Similar conformations are mostly grouped together in this ensemble, but will not necessarily be grouped together in ensembles in general. Also, ensembles usually contain many more groups of conformations, especially for larger structures with more degrees of freedom.

All atoms were used in the RMSD calculation, because although the parameter Restrict map to current selection, if any was set to true, nothing was selected. Select the nonhydrogen backbone atoms only,

Command: sel @n,ca,c,o
and this time click OK to dismiss the RMSD parameters dialog and perform the calculation. Although the two maps span different ranges in RMSD, they reveal essentially the same groups of conformations. Close both maps.

Another way to analyze the ensemble is to calculate spatial occupancy maps for atoms of interest. From the controller menu, choose Analysis... Calculate occupancy. The resulting dialog will show the warning message "No atoms being held steady." This means you have not previously selected a set of atoms and chosen Actions... Hold selection steady from the controller menu for this ensemble.

Why might it be useful to hold atoms steady while calculating occupancy? The contents of different frames may move around enough to obscure certain spatial patterns. Even if the structure as a whole is held fairly steady, one may want to hold a particular set of atoms (such as a sidechain) steady to examine local interactions. However, if the structure or region of interest is already sufficiently steady, the "hold steady" step can be omitted.

One approach to analyzing the relative positions of the aromatic rings is to hold the Phe ring atoms steady and map the occupancy of the Tyr ring atoms:

  1. Select the six Phe ring atoms. One way is to pick them from the screen (Ctrl-click on one, Shift-Ctrl-click on each of the other five). Another way is with a command:
    Command: sel :phe@cg,cd?,ce?,cz
    -OR- (these are equivalent)
    Command: sel :phe & aromatic ring
  2. Choose Actions... Hold selection steady from the controller menu.
  3. Select the six Tyr ring atoms, by picking or with a command:
    Command: sel :tyr@cg,cd?,ce?,cz
    -OR- (these are equivalent)
    Command: sel :tyr & aromatic ring
  4. If the occupancy dialog is not already up, choose Analysis... Calculate occupancy from the controller menu.
  5. Click OK on the occupancy dialog.
frame 2, 4 blobs
frame 2, 2 blobs
When the map has been computed, the Volume Viewer tool will appear. This tool shows a histogram of the values in the map; the slider controls what contour level is displayed.

Clear the selection in Chimera (Select... Clear Selection). In the Volume Viewer tool, change from surface to mesh and move the slider to a value of approximately 2. Use the Side View (Tools... Viewing Controls... Side View) to move the clipping planes so that all of the mesh is visible. Optionally, change the color of the mesh surface by clicking the color well below the histogram and using the Color Editor. (Volume Viewer is complex tool with many features. For more on this tool, see the Volume Viewer manual page and the Chimera tutorials on the web.)

You will see four main blobs or volumes representing probable positions of the Tyr ring relative to the Phe ring (similar to the upper image, which also shows frame 2). The two larger volumes represent μ-type conformations and the two smaller volumes represent δ-type conformations. The volume pairs are related by approximately 180-degree flips of the Phe ring. Although the atom pairs CD1/CD2 and CE1/CE2 in the Phe ring are chemically equivalent, each atom is distinguishable by name and is treated as distinct for holding steady.

If desired, flip through the ensemble (still holding the Phe ring steady) to verify that the volumes show areas occupied by the Tyr ring. To delete the volume display, choose File... Close data from the Volume Viewer menu.

Finally, calculate a map without holding any atoms steady. Choose Actions... Stop holding steady from the controller menu. Since this ensemble maintains the Tyr ring in roughly the same place, simply map the occupancy of the Phe ring atoms. Select the Phe ring atoms (as above), choose Analysis... Calculate occupancy, and click OK. This time, the conformations are not as well separated; two lobes of occupancy are apparent at a contour level of approximately 2 (similar to the lower image, which also shows frame 2). One lobe represents μ-type conformations and the other represents δ-type conformations.

When finished with the Met-enkephalin ensemble, quit from Chimera (File... Quit).
