Metal Geometry Metal Geometry icon

1qin metal site

Metal Geometry is a tool for analyzing metal ion coordination geometries. It also allows adding or deleting coordination pseudobonds. See also: Structure Measurements, FindHBond, Build Structure, PseudoBond Reader

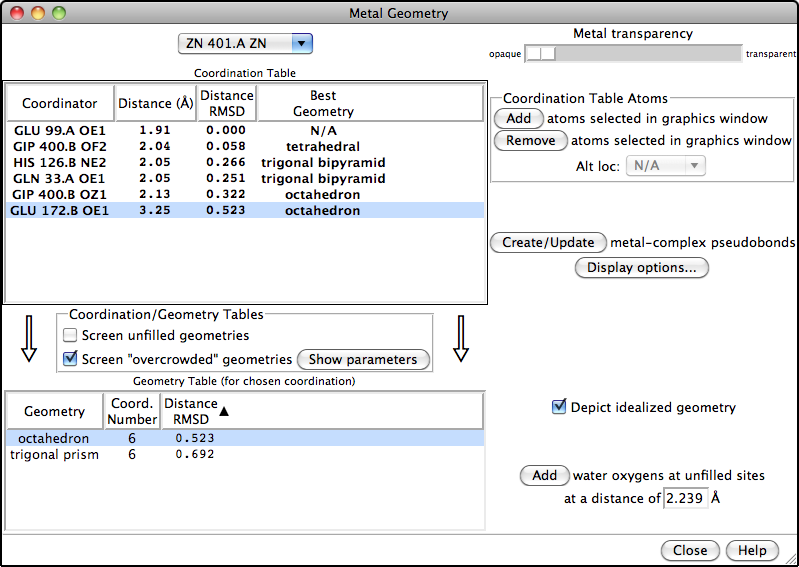

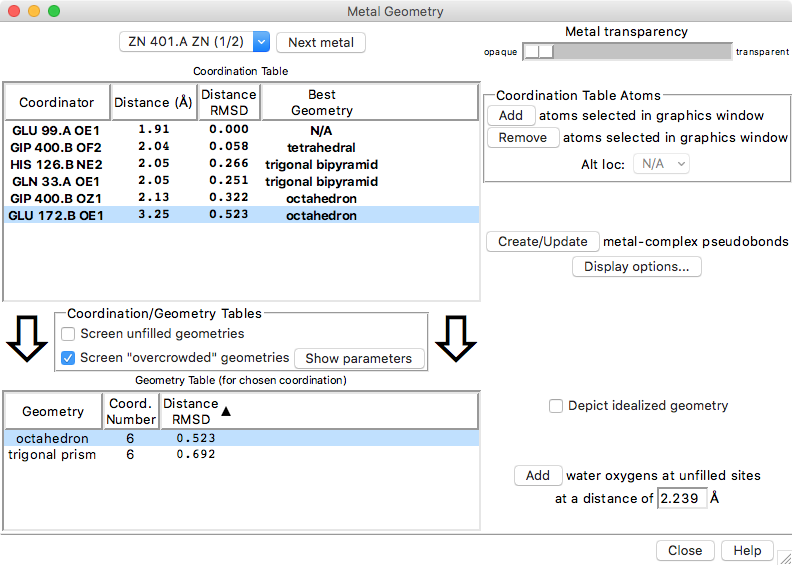

There are several ways to start Metal Geometry, a tool in the Structure Analysis category. If more than one metal ion is present, the ion of interest should be chosen from the pulldown menu at the top of the dialog. Metal Geometry can also be started by by double-picking a metal ion from the graphics window (doubleclicking it with the button assigned to picking) and choosing Coordination Geometry from the resulting context menu.

The view in the graphics window will focus on the specified metal ion and nearby atoms. The Metal transparency slider allows adjusting the transparency of the displayed metal ion.

The Coordination Table lists atoms that might be coordinated to the metal ion, sorted by distance. Each row represents a ligation set comprised of not only the atom named in that row, but also all of the atoms in the rows above it. Clicking a row chooses that ligation set as the current ligation set and selects its atoms. The rows cannot be reordered, but atoms can be added to or removed from the list by selecting them in the graphics window and clicking the Add or Remove buttons on the right. Only one location of an atom with alternate locations can be listed at a time, and which location is listed can be controlled with the Alt loc menu to the right of the table. Columns:

Clicking Create/Update will generate or delete coordination pseudobonds to the metal as needed to represent the current ligation set. Clicking Display options... brings up a list of pseudobond attributes for this group, allowing changes in properties such as color, linewidth, and whether the lines are dashed. When an individual pseudobond is selected, its attributes can be altered with the Selection Inspector.

The Geometry Table lists possible metal coordination geometries for the current ligation set, subject to certain screens. Columns:

Clicking a row in the Geometry Table chooses that metal coordination geometry. Depict idealized geometry shows the chosen geometry with arrow objects, and water oxygens can be Added to occupy any unfilled sites. The distance from the metal at which to add water oxygens is automatically set to the average for the current ligation set, but can be edited.

Unlikely geometries can be screened out of the tables:

Close closes the Metal Geometry dialog. Help opens this manual page in a browser window.

Distance RMSD

In an idealized coordination geometry, the ligating atoms fall along vectors that emanate from the metal ion. The angles between the vectors are characteristic of the specific Geometry. The radiating set of vectors is repositioned to coincide as much as possible with the real positions of the metal ion and ligating atoms, and then for each real ligating atom, an idealized ligating atom is placed along the corresponding vector at the same distance from the idealized metal ion as the real atom is from the real metal ion. The best-fit root-mean-square deviation between the real atoms (including the metal ion) and their idealized positions is computed.

UCSF Computer Graphics Laboratory / May 2012
