The Model Panel Model Panel icon

Each file of coordinates opened in Chimera becomes a model with an associated model ID number. Nonmolecular models are also given ID numbers. A molecule model can share an ID number with one or more molecular surface models and/or objects (any of the other model types).

Some files contain multiple structures or multiple sets of coordinates for the same structure. In PDB files, these multiple structures are delimited with MODEL and ENDMDL records. The concept of submodels was created to allow unique atom specifications even when multiple structures in the same file contain identical residue and atom names. Submodel numbers are assigned sequentially starting with 1 (#0.1, #0.2, etc.). Each submodel can be treated as a separate model. Thus, "models" will be used to indicate submodels and/or models that are not subdivided into submodels.

The Model Panel lists the models in Chimera and conveniently enables many operations upon them. There are several ways to start the Model Panel, a tool in the General Controls category.

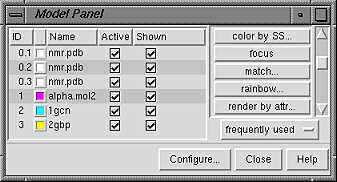

Model Panel
The panel can be customized; the figure shows the default columns.

Individual models or blocks of models can be chosen with the left mouse button. Ctrl-click adds to an existing choice rather than replacing it. To choose a block of models without dragging, click on the first (or last) and then Shift-click on the last (or first) in the desired block. In the figure, models 0.2 and 1 have been chosen.

Once one or more models have been chosen within the left side of the Model Panel, any of several functions represented by buttons on the right side of the panel can be executed. Each function is classified as frequently used or infrequently used; the toggle button below the list controls which set is listed.

Configure... allows customization of what is included in the left side of the panel, which functions are considered frequently used, and which functions are applied to double-clicked models. Close dismisses the Model Panel. Help opens this manual page in a browser window.

The functions are:

Model Panel Configuration

The Configure... button brings up another panel with three sections for customizing the Model Panel. The three sections are organized like index cards with their names on tabs across the top: Buttons, Columns, and Double Click. Clicking on a tab brings the corresponding card to the front.
