Quality Assurance

Introduction

• The more you invest in quality, the less time it takes to develop working software [Glass 2002]
• Quality is not just testing
  • “Trying to improve the quality of software by doing more testing is like trying to lose weight by weighing yourself more often.” (Steve McConnell)
• Quality is:
  • Designed in
  • Monitored and maintained through the whole software lifecycle
• This lecture looks at basic things every developer can do to maintain quality
  • See [Whittaker 2003] for more information
• Send comments

You Can Skip This Lecture If...

• You know that no amount of testing can prove that software is correct
• You know what unit testing, integration testing, and regression testing are
• You know what a fixture is
• You know what an exception is, and how to raise one
• You know what test-driven design is
• You know what defensive programming is
• You know what design by contract is
• Send comments

Limits to Testing

• Suppose you have a function that compares two 7-digit phone numbers, and returns True if the first is greater than the second
  • (10⁷)² possible inputs
  • At ten million tests per second, that's 155 days
• If they're 7-character alphabetic strings, it's 254 years
  • Then you move on to the second function…
• And how do you know that your tests are correct?
• All a test can do is show that there may be a bug
• Send comments

Terminology

• A unit test exercises one component in isolation
  • Developer-oriented: tests the program's internals
• An integration test exercises the whole system
  • User-oriented: tests the software's overall behavior
• Regression testing is the practice of rerunning tests to check that the code still works
  • I.e., make sure that today's changes haven't broken things that were working yesterday
  • Programs that don't have regression tests are difficult (sometimes impossible) to maintain [Feathers 2005]
• Send comments

Test Results and Specifications

• Any test can have one of three outcomes:
  • Pass: the actual outcome matches the expected outcome
  • Fail: the actual outcome is different from what was expected
  • Error: something went wrong inside the test (i.e., the test contains a bug)
    • Don't know anything about the system being tested
• A specification is something that tells you how to classify a test's result
  • You can't test without some sort of specification
  • Discuss ways of creating specifications below, and in a later lecture
• Send comments

Structuring Tests

• How to write tests so that:
  • It's easy to add or change tests
  • It's easy to see what's been tested, and what hasn't
• A test consists of a fixture, an action, and an expected result
  • A fixture is something that a test is run on
  • Can be as simple as a single value, or as complex as a networked database
• Every test should be independent
  • I.e., the outcome of one test shouldn't depend on what happened in another test
  • Otherwise, faults in early tests can distort the results of later ones
• So each test:
  • Creates a fresh instance of the fixture
  • Performs the operation
  • Checks and records the result
• Send comments

A Simple Example

• Test string.startswith
  • Specification: returns True if the string starts with the given prefix, and False otherwise
  • Hm… What if the prefix is the empty string?
• Store the tests in a table
  • Easy to read and add to

  Tests = [
      # String  Prefix  Expected
      ['a',     'a',    True],
      ['a',     'b',    False],
      ['abc',   'a',    True],
      ['abc',   'ab',   True],
      ['abc',   'abc',  True],
      ['abc',   'abcd', False],
      ['abc',   '',     True]
  ]

  • String and prefix are fixture
• Now run them

  passes = 0
  failures = 0
  for (s, p, expected) in Tests:
      actual = s.startswith(p)
      if actual == expected:
          passes += 1
      else:
          failures += 1
  print 'passed', passes, 'out of', passes+failures, 'tests'

  • Hm… Where's the code to handle and report errors in the tests themselves?
• Send comments

Catching Errors

• Python uses exceptions for error handling
  • Separates normal operation from error handling
  • Makes both easier to read
• Structured like if/else
  • Code for healthy case goes in a try block
  • Error handling code goes in a matching except block
• When something goes wrong in the try block, Python raises an exception
  • This is caught by the matching except
  • Python then executes the code in the exception handler
• Can add an optional else block
  • Executed when things don't go wrong inside the try block
• Send comments

Simple Exception Example

• Try dividing by zero and some non-zero values:

  • for num in [-1, 0, 1]:
        try:
            inverse = 1/num
        except:
            print 'inverting', num, 'caused error'
        else:
            print 'inverse of', num, 'is', inverse


    inverse of -1 is -1
    inverting 0 caused error
    inverse of 1 is 1




Figure 11.1: Flow of Control in Try/Except/Else

• Send comments

Exception Objects

• When Python raises an exception, it creates an object to hold information about what went wrong
  • Typically contains an error message
• Can choose which errors to handle by specifying an exception type in the except statement
  • E.g., handle division by zero, but not out-of-bounds list index

  • # Note: mix of numeric and non-numeric values.
    values = [0, 1, 'momentum']

    # Note: top index will be out of bounds.
    for i in range(4):
        try:
            print 'dividing by value', i
            x = 1.0 / values[i]
            print 'result is', x
        except ZeroDivisionError, e:
            print 'divide by zero:', e
        except IndexError, e:
            print 'index error:', e
        except:
            print 'some other error:', e


    dividing by value 0
    divide by zero: float division
    dividing by value 1
    result is 1.0
    dividing by value 2
    some other error: float division
    dividing by value 3
    index error: list index out of range


• The except blocks are tested in order—whichever matches first, wins
  • If a “naked” except appears, it must come last (since it catches everything)
  • Generally better to use except Exception, e so that you have the exception object
• Send comments

Exception Hierarchy

• Exceptions are organized in a hierarchy
  • E.g., ZeroDivisionError, OverflowError, and FloatingPointError are all types of ArithmeticError
  • A handler for the general type catches all its specific sub-types

Name			Purpose
Exception			Root of exception hierarchy
	ArithmeticError		Illegal arithmetic operation
		FloatingPointError	Generic error in floating point calculation
		OverflowError	Result too large to represent
		ZeroDivisionError	Attempt to divide by zero
	IndexError		Bad index to sequence (out of bounds or illegal type)
	TypeError		Illegal type (e.g., trying to add integer and string)
	ValueError		Illegal value (e.g., math.sqrt(-1))
	EnvironmentError		Error interacting with the outside world
		IOError	Unable to create or open file, read data, etc.
		OSError	No permissions, no such device, etc.
Table 11.1: Common Exception Types in Python

• Send comments

Functions and Exceptions

• Each time Python enters a try/except block, it pushes the except handlers on a stack
  • Just like the function call stack
  •

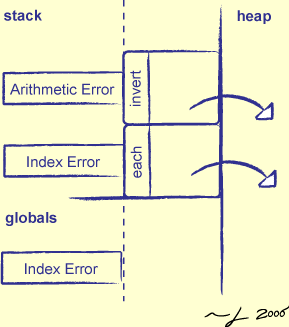

    Figure 11.2: Stacking Exception Handlers

• When an exception is raised, Python searches this stack for the top-most matching handler
  • Often means jumping out of the middle of a function

  • def invert(vals, index):
        try:
            vals[index] = 10.0/vals[index]
        except ArithmeticError, e:
            print 'inner exception handler:', e

    def each(vals, indices):
        try:
            for i in indices:
                invert(vals, i)
        except IndexError, e:
            print 'outer exception handler:', e

    # Once again, the top index will be out of bounds.
    values = [-1, 0, 1]
    print 'values before:', values
    each(values, range(4))
    print 'values after:', values


    values before: [-1, 0, 1]
    inner exception handler: float division
    outer exception handler: list index out of range
    values after: [-10.0, 0, 10.0]


• Send comments

Raising Exceptions

• Use raise to trigger exception processing
  • Specify the type of exception you're raising using raise Exception('this is an error message')
  • Please make your error messages more informative…

  • for i in range(4):
        try:
            if (i % 2) == 1:
                raise ValueError('index is odd')
            else:
                print 'not raising exception for %d' % i
        except ValueError, e:
            print 'caught exception for %d' % i, e


    not raising exception for 0
    caught exception for 1 index is odd
    not raising exception for 2
    caught exception for 3 index is odd


• Send comments

Exceptional Style

• Always use exceptions to report errors instead of returning None, -1, False, or some other value
  • Allows callers to separate normal code from error handling
  • And sooner or later, your function will probably actually want to return that “special” value
  • Note: Python's own list.find breaks this rule
    • Returns -1 if something can't be found
• Throw low, catch high
  • I.e., throw lots of very specific exceptions…
  • …but only catch them where you can actually take corrective action
  • Because every application handles errors differently
    • If someone is using your library in a GUI, you don't want to be printing to stderr
• Send comments

Handling Errors in Tests

• Now know how to check for errors in tests
  • Wrap the test in try/except

  • Tests = [
        ['a',     'a',    False],    # wrong expected value
        ['a',     1,      False],    # wrong type
        ['abc',   'a',    True]      # everything legal
    ]

    passes = failures = errors = 0
    for (s, p, expected) in Tests:
        try:
            actual = s.startswith(p)
            if actual == expected:
                passes += 1
            else:
                failures += 1
        except:
            errors += 1

    print 'tests:', passes + failures + errors
    print 'passes:', passes
    print 'failures:', failures
    print 'errors:', errors


    tests: 3
    passes: 1
    failures: 1
    errors: 1


  • Note the deliberate errors in the test cases to exercise the testing code
• Send comments

Test-Driven Design

• Tests are actually specifications
  • “Given these inputs, this code should behave the following way”
• So write the tests first, then the application code
  • Test-driven development (TDD)
• Sounds backward, but:
  • A great way to clarify specifications
    • I write the tests
    • “All” you have to do is write code that passes those tests
  • Gives programmers a definite goal
    • Coding is finished when all tests run
    • Particularly useful when trying to fix bugs in old code, as it forces you to figure out how to re-create the bug
    • Helps prevent the “one more feature” syndrome
  • Ensures that tests actually get written
    • People are often too tired, or too rushed, to test after coding
  • Helps clarify the Application Programming Interface (API) before it is set in stone
    • If something is awkward to test, it can be redesigned before it's written
• Send comments

TDD Example

• I want you to write a function that calculates a running sum of the values in a list
  • Doesn't specify whether to create a new list, or overwrite the input
  • Doesn't specify how to handle errors
• You'd probably prefer something like this:

  Tests = [
      [[],        [],          'empty list'],
      [[1],       [1],         'single value'],
      [[1, 3],    [1, 4],      'two values'],
      [[1, 3, 7], [1, 4, 11],  'three values'],
      [[-1, 1],   [-1, 0],     'negative values'],
      [[1, 3.0],  [1, 4.0],    'mixed types'],
      ["string",  ValueError,  'non-list input'],
      [['a'],     ValueError,  'non-numeric value']
  ]

  • If the expected result is an exception, pass only if that exception is raised
  • If the test doesn't pass, print the comment so that the programmer knows what to look at
• Send comments

Design by Contract

• Functions ought to carry their specifications around with them
  • Keeping specification and implementation together makes both easier to understand
  • And improves the odds that programmers will keep them in sync
• A function is defined by:
  • Its pre-conditions: what must be true in order for the function to work correctly
  • Its post-conditions: what the function guarantees will be true if its pre-conditions are met
  • May also have invariants: things that are true throughout the execution of the function
• Leads to a style of programming called design by contract
• Pre- and post-conditions constrain how the function can evolve
  • Can only ever relax pre-conditions (i.e., take a wider range of input)…
  • …or tighten post-conditions (i.e., produce a narrower range of output)
  • Tightening pre-conditions, or relaxing post-conditions, would violate the function's contract with its callers
• Send comments

Assertions

• Normally specify pre- and post-conditions using assertions
  • A statement that something is true at a particular point in a program
  • If the assertion's condition is not met, Python raises an AssertionError exception
• For example:
  • Pre-condition: input argument is a non-empty list
  • Post-condition: two values from the list such that the first is less than the second

  def find_range(values):
      '''Find the non-empty range of values in the input sequence.'''
      assert (type(values) is list) and (len(values) > 0)
      left = min(values)
      right = max(values)
      assert (left in values) and (right in values) and (left <= right)
      return left, right


• Note that the post-condition isn't as exacting as it should be
  • Doesn't check that left is less than or equal to all other values, or that right is greater than or equal to
  • The code to check the condition exactly is as likely to contain errors as the function itself
  • Which is one of the reasons design by contract isn't as popular as it might be
• Send comments

Defensive Programming

• You can (and should) use assert liberally
  • Even if you don't practice design by contract
• Defensive programming is like defensive driving
  • Program as if the rest of the world is out to get you
  • “Fail early, fail often”
    • The less distance there is between the error and you detecting it, the easier it will be to find and fix
• Good practice: every time you fix a bug, put in an assertion and a comment
  • Because if you made the error, the right code can't be obvious
  • And you should protect yourself against someone “simplifying” the bug back in

  def can_transmute(element):
      '''Can this element be turned into gold?'''

      # Bug #172: make sure the input is actually an element.
      assert is_valid_element(element)

      # Gold is trivial.
      if element is Gold:
          return True

      # Trans-uranic metals and halogens are impossible.
      if (element.atomic_number > Uranium.atomic_number) or \
         (element in Halogens):
          return False

      # Look for a sequence of steps that leads to gold.
      steps = search_transmutations(element, Gold)
      if steps == []:
          return False
      else:
          # Bug #201: must be at least two elements in sequence.
          assert len(steps) >= 2
          return True


• Send comments

Summary

• The real goal of quality assurance isn't to find bugs: it's to figure out where they're coming from, so that they can be prevented
• But without testing, no one (including you) has any right to rely on the program's output
• Only way to ensure quality is to design it in
• Send comments
