Spreadsheets

Introduction

• A spreadsheet is a simple way to do tabular calculations
  • The first one, VisiCalc, was the original “compelling application”
  • Widely used in science as a simple database, and for statistics
• Most widely used spreadsheet today is Microsoft Excel
  • But it's not free
• This lecture will use Gnumeric instead
  • Principles and UI are the same
• Send comments

You Can Skip This Lecture If...

• You can enter and format data in a spreadsheet
• You know how to calculate totals, averages, and other aggregate values
• You can create a chart
• You know how conditionals work
• You know how to create lookup tables
• Send comments

First Steps

• Run Gnumeric
  •

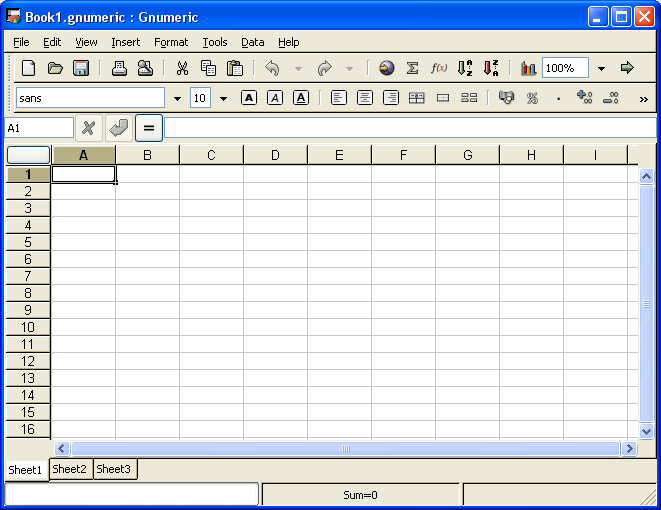

    Figure 21.1: Empty Spreadsheet

• Spreadsheet consists of cells with unique ids like A1 or C4
  • Enter data by typing in cells
  • [enter] moves to the next row, [tab] moves to next column
  • Use mouse or arrow keys to move around
• Send comments

Entering Data

• Studying the long-term effects of programming on human memory
  • How well do people remember names, faces, and where they live after they've been programming for several years?
  • How does performance change with repetition?
• Want to use a spreadsheet to store data and do calculations
• Enter the values shown below
  •

    Figure 21.2: Raw Scores

• Send comments

Formatting Data

• Spreadsheets can help make data more readable
  • I.e., easier to understand
• Select the six numbers using either the mouse or the keyboard
  • Select Format...Cells
  • Under the “Number” category, change the number of decimal places to 1
• While we're here:
  • Select the “1” label (to select the first row)
  • Select Format...Cells again
  • Under the “Font” tab, change the format to bold
  • Do the same for the title column


Figure 21.3: Scores After Formatting Titles

• Send comments

Formulas

• Often want to calculate new values from old
  • In this case, want to calculate each subject's overall performance
  • Weighting is 30% for preliminary result, 70% for final result
• Select E2 (first empty cell in Alan Turing's row)
  • Click on the “=” button to enter a formula
  • Enter (0.3*C2)+(0.7*D2)
    • C2 and D2 are references to other cells
  • 84.6 appears in cell E2

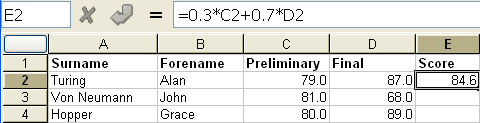

Figure 21.4: Scores With A Formula

• Send comments

Replicating Formulas

• Could type similar formulas into cells E3 and E4
  • But it would be tedious to do this for a hundred test subjects
• Instead, select E2, copy, and paste into E3, then into E4
  • Spreadsheet automatically adjusts relative references
    • Turns C2 into C3 or C4 as required
  • Grades are 84.6, 71.9, and 86.3

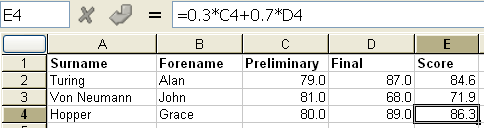

Figure 21.5: Copying Formulas

• Send comments

Built-In Functions

• What about calculating averages and other aggregate statistics?
  • Don't want to have to type in (0.01*A1+0.01*A2+...+0.01*A100)
  • Especially if we might add another row or column later on
• Solution is to use built-in functions
  • Select C5
  • Enter the formula AVERAGE(C2:C4)
    • C2:C4 is a range of cells
  • Copy and paste into D5 to calculate the average final score
• Add MAX below average, along with a label
  • Spreadsheets are programs, and programs should be documented
• Then insert a row above average for MIN
  • The spreadsheet does the right thing with relative references when rows are inserted or deleted

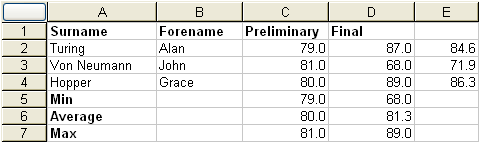

Figure 21.6: Minimum, Average, and Maximum Scores

• Send comments

Commonly-Used Functions

Function	Purpose
AND(e1,e2,...)	True if all expressions are true; false otherwise
AVERAGE(values)	Return the average of the given values (which may be a range)
DATE(year,month,day)	Return the number of days since January 1, 1900 for the given date
INDEX(array,row,col)	Return the section of an array indexed by row and column indices
LOOKUP(value,lookup_vector,result_vector)	Find a value in a lookup vector, and return the corresponding entry from the result vector
NOT(e)	True if the expression is 0; false otherwise
OR(e1,e2,...)	True if any expression is true; false otherwise
RAND()	Return a random value between 0 and 1
REPLACE(old,start,num,new)	Replace part of a string
ROUND(number)	Round off a number
SIN(e)	Return the sine of an expression
TODAY()	Return the number of days since January 1, 1900 for today
Table 21.1: Gnumeric Functions

• Send comments

Dependencies

• Spreadsheets update dependencies between cells automatically
  • Just like Make updates dependencies between files
• A declarative programming language
  • As opposed to imperative languages like Python
• Example:
  • Copy the equation for overall grade from E4 into E5, E6, and E7
  • Change John von Neumann's final score from 68 to 86
  • Several cells' values immediately change
  •

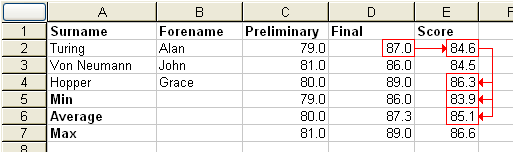

    Figure 21.7: Dependencies Between Cells

• This is why people use spreadsheets: the data is the program
• Send comments

Conditionals

• Who remembered enough to be able to carry out simple tasks?
  • Field studies show that people need at least 75% recall
• Syntax for a conditional is IF(condition,true_value,false_value)
  • First argument to function must be a Boolean expression
  • Second is the function's value if the first argument is true
  • Third is its value if the first argument is false
• Put IF(E2>75,"success","failure") in cell F2
  • Copy and paste into F3 and F4
  •

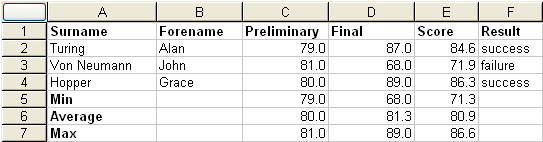

    Figure 21.8: Conditionals

• Send comments

Multi-Valued Conditionsl

• Want more specific diagnosis than just “success” or “failure”
  • Could use nested conditional expressions
  • IF(E2<70,"Failure",IF(E2<80,"Marginal",IF(E2<86,"Good","Excellent")))
• But it would be hard to read
• And what if there were a hundred options?
• Send comments

Lookup Tables

• Use a lookup table instead
  • Find a value in one row, and use the contents of a corresponding cell from another row
• Syntax is LOOKUP(value,lookup_vector,result_vector)
  • value is a single cell
  • lookup_vector is part of a single row or column
    • If the value isn't in the lookup vector, the spreadsheet uses the nearest cell whose value is less than or equal to it
    • So 84.6 falls back to the cell containing the value 80
    • lookup_vector must be sorted in order for this to work
  • The result vector must be exactly the same length as the lookup vector
• Send comments

Lookup Table Example

• Put cutoffs and evaluations in rows 9 and 10
  • With documentation
• Put LOOKUP(E2,B9:E9,B10:E10) in cell F2
  •

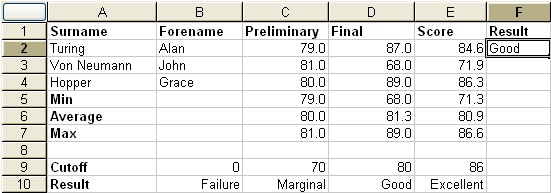

    Figure 21.9: Looking Up Results

• Send comments

Absolute References

• Copy and paste into F3 to look up letter grade for John von Neumann
  • Displays #N/A, meaning “not valid”
• Formula has been adjusted to use B10:E10 as the lookup vector and B11:E11 as the result vector
  • But these cells are empty
  •

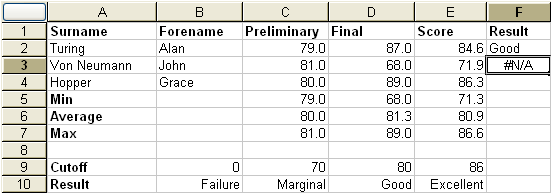

    Figure 21.10: Lookup Failure

• Send comments

Adjusting The Formula

• Use absolute references to prevent this
  • $B$9 means cell B9 even when the formula is copied, rows and columns are inserted or deleted, etc.
• So change the formula for F2 to LOOKUP(E2,$B$9:$E$9,$B$10:$E$10)
  •

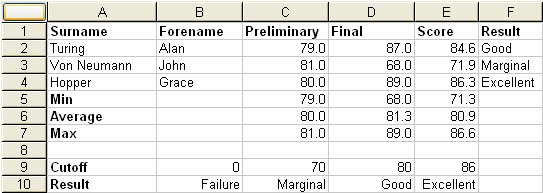

    Figure 21.11: Absolute References in Formulas

• Send comments

A Larger Data Set

• Open solarsystem.csv
  • Orbital information about planets and satellites
  • Data stored as comma-separated values

  Name,Position,Orbits,Distance,Period,Inclination,Eccentricity
  ,,,x1000km,days,degrees,degrees
  Sun,-,-,-,-,-,-
  Mercury,1,Sun,57910,87.97,7.00,0.21
  Venus,2,Sun,108200,224.70,3.39,0.01
  Earth,3,Sun,149600,365.26,0.00,0.02
  Mars,4,Sun,227940,686.98,1.85,0.09
  Jupiter,5,Sun,778330,4332.71,1.31,0.05
  Saturn,6,Sun,1429400,10759.50,2.49,0.06
  Uranus,7,Sun,2870990,30685.00,0.77,0.05

• Click on the row below the two title rows, and select View...Freeze Panes
  • Scrolling will now leave the title rows in place
  •

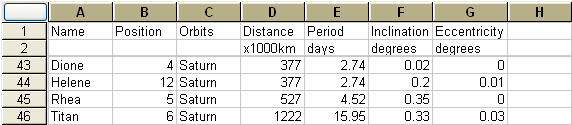

    Figure 21.12: Scrolling the Solar System

• Send comments

Creating Charts

• How are period and distance related?
  • The best (often, the only) way to understand large data sets is to view them graphically
• To create a chart:
  • Select the range D4:E78 (i.e., everything except the Sun)
  • Select Insert...Chart
  • Choose an XY scatterplot
  •

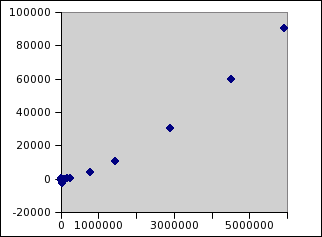

    Figure 21.13: Basic Chart

• Send comments

Customizing The Display

• Too many points crowded against left edge of chart
  • Not surprising: values for Pluto and Jupiter's innermost satellites span orders of magnitude
• Try log-log plot
  • Each ten-fold increase in scale is a single unit on the axis
• Can do it by setting options when creating the chart
  • More informative in this case to do it by hand
• Send comments

Creating A Log-Log Chart

• Set I4 to log(D4), then copy, select I5:I78, and paste
  • Pastes into all selected cells at once
• Set J4 to log(E4), copy, and paste into
• Error: J28 and others display #NUM!

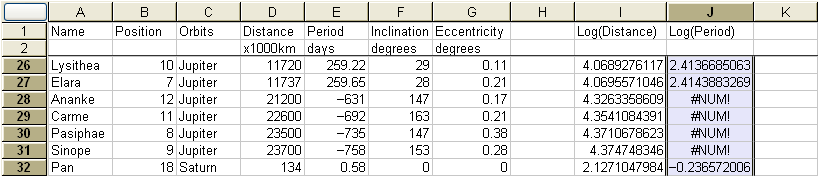

Figure 21.14: Error Creating Log-Log Plot

• Send comments

Fixing The Error

• The data uses negative periods for retrograde motion
  • Have to scrub the data in order to use it
• Change formula to log(abs(E4))
  • Now plot columns I and J
  • Add X and Y axis titles along the way
  •

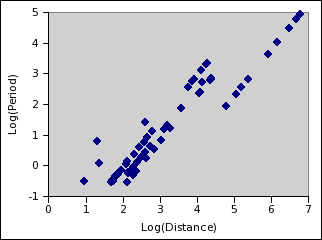

    Figure 21.15: Log-Log Plot of Distances and Periods

• Send comments

Analysis

• Looks like several straight lines lying beside one another
  • The rightmost has nine points…
  • …and there are nine planets
  • Do the other lines correspond to Jupiter, Saturn, and other orbited bodies?
• Often use spreadsheets for this kind of exploratory data analysis
  • Look for things that might be patterns
  • Then apply real statistical tools to see if they are
• It's not science until you do the second step
  • The human eye is very good at “seeing” patterns that aren't there
• Send comments

Programming

• FIXME: describe how to manipulate Gnumeric data from Python
• Send comments

Summary

• FIXME
• Send comments
