Web Server Programming

Version 1107 (Mon Nov 27 20:46:08 2006)

Most of the web's power comes from the fact that browsers can interact with programs
- More accurately, browsers can ask web servers to run programs on their behalf
This lecture looks at what to do if you receive an HTTP request
- Very important that you go through the lecture on security before putting your programs on the web
Send comments

You Can Skip This Lecture If...

You know what CGI stands for
You know how web servers communicate with CGI programs
You know what MIME types are
You know how to create an HTML form
You know how to get HTML form data from an HTTP request
You know when and how to create cookies
Send comments

The Pluggable Web

Users want to make the web do different things
- How to let them write programs that handle HTTP requests?
Option #1: Require them to write socket-level code
- Complicated and error-prone
- Can only have one program listening to a socket at a time
Option #2: have the web server accept the HTTP request, and then run the user's code
- Recompiling the web server every time someone wants to add functionality would be a pain
- So define a protocol that lets web servers run other programs
Send comments

The CGI Protocol

The Common Gateway Interface (CGI) protocol specifies:
- How a web server passes information to a program
- How that program passes information back to the web server
CGI does not specify:
- A particular language
  - You can use Fortran, the shell, C, Java, Perl, Python…
- How the web server figures out what program to run
  - Each web server has its own rules
  - We'll (briefly) talk about Apache's
Send comments

From Server To CGI

Web server runs the CGI by creating a new process

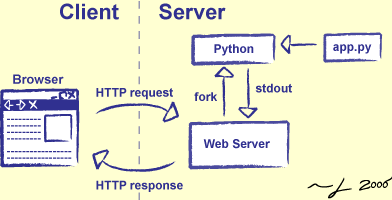

- Figure 24.1: CGI Data Processing Cycle

Web server passes some information to the CGI process through environment variables

Name	Purpose	Example
`REQUEST_METHOD`	What kind of HTTP request is being handled	`GET` or `POST`
`SCRIPT_NAME`	The path to the script that's executing	`/cgi-bin/post_photo.py`
`QUERY_STRING`	The query parameters following `"?"` in the URL	`name=mydog.jpg&expires=never`
`CONTENT_TYPE`	The type of any extra data being sent with the request	`img/jpeg`
`CONTENT_LENGTH`	How much extra data is being sent with the request (in bytes)	`17290`
Table 24.1: Important CGI Environment Variables

The web server may also send CONTENT_LENGTH bytes to the CGI on standard input
- E.g., when a file is being uploaded
Send comments

From CGI To Server

The CGI program sends data back to the web server by printing it to standard output
The web server then forwards this directly to the client
- Which means that the CGI program is responsible for creating headers
Note: none of this works unless the web server has been configured to run the CGI
- By default, modern servers won't do this unless they're told they can
Send comments

MIME Types

Clients and servers need a way to specify data types to each other
- Remember, bytes are just bytes: the browser doesn't magically know how to interpret them
Multipurpose Internet Mail Extensions standard specifies how to do this
- Organizes data types into families, and provides a two-part name for each type
- Use the "Content-Type" header to specify the MIME type of the data being sent

Family	Specific Type	Describes
Text	`text/html`	Web pages
Image	`image/jpeg`	JPEG-format image
Audio	`audio/x-mp3`	MP3 audio file
Video	`video/quicktime`	Apple Quicktime video format
Application-specific data	`application/pdf`	Adobe PDF document
Table 24.2: Example Mime Types

Send comments

Hello, CGI

Simplest possible CGI pays no attention to query parameters or extra data
- Just prints HTML to standard output, to be relayed to the client
- Along with a Content-Type header to tell the client to expect HTML…
- …and a blank line to separate the headers from the data

#!/usr/bin/env python

# Headers and an extra blank line
print 'Content-type: text/html'
print

# Body
print '<html><body><p>Hello, CGI!</p></body></html>'

Send comments

Invoking a CGI

Invoke it by going to http://www.yourserver.com/cgi-bin/hello_cgi.py
- By convention, CGI programs are put in a cgi-bin directory
Browser displays the simple HTML page generated by the program

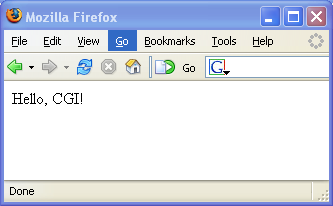

- Figure 24.2: Basic CGI Output
Send comments

Generating Dynamic Content

But the whole point of CGI is to generate content dynamically

E.g., show a list of environment variables and their values

#!/usr/bin/env python

import os, cgi

# Headers and an extra blank line
print 'Content-type: text/html'
print

# Body
print '<html><body>'
keys = os.environ.keys()
keys.sort()
for k in keys:
    print '<p>%s: %s</p>' % (cgi.escape(k), cgi.escape(os.environ[k]))
print '</body></html>'

You'll use this frequently when debugging…

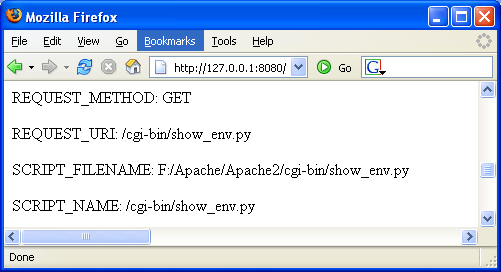

Figure 24.3: Environment Variable Output

Send comments

Forms

Next step is to allow users to enter data
- Without manually editing URLs to append parameters
HTML forms allow users to enter text, choose items from lists, etc.
- Not nearly as sophisticated as desktop interfaces
- Although programmers are doing more every day (particularly using Javascript)
Send comments

Creating Forms

Create a form using a <form>…</form> element
- action attribute specifies the URL to send data to
- method attribute specifies the type of HTTP request to send
  - Usually "POST" for HTML forms
Inside the form, can have:
- <select/> elements to let users choose values from a list
  - List items specified using <option/> elements
- <input/> elements for other kind of data
  - If type is "text", get a one-line text entry box
  - If type is "checkbox", get an on/off checkbox
  - "submit" and "reset" create buttons to submit the form, or re-set the data to initial values
Send comments

A Simple Form

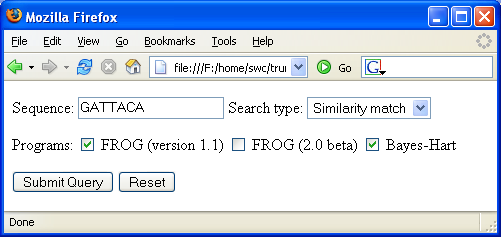

Figure 24.4: A Simple Form

Send comments

Parameter Names

Each <input/> element has a name attribute
- These become the names of the parameters that the client sends to the server
- The input elements' values are the parameters' values
Submitting the form shown above with default values produces:
- os.environ['REQUEST_METHOD']: "POST"
- os.environ['SCRIPT_NAME']: "/cgi-bin/simple_form.py"
- os.environ['CONTENT_TYPE']: "application/x-www-form-urlencoded"
- os.environ['REQUEST_LENGTH']: "80"
- Standard input: sequence=GATTACA&search_type=Similarity+match&program=FROG-11&program=Bayes-Hart
Send comments

Handling Forms

Could handle form data directly
- Read and parse environment variables
- Read extra data from standard input
But the mechanics are the same each time, so use Python's cgi module instead
- Defines a dictionary-like object called FieldStorage
  - Keys are parameter names
  - Values are either strings (if there's a single value assocatied with the parameter) or lists (if there are many)
When a FieldStorage object is created, it reads and stores information contained in the URL and environment
- Which means that a CGI program should only ever create one
Program can read extra data from sys.stdin
Send comments

Form Handling Example

Example: show the parameters send to a script

#!/usr/bin/env python
import cgi

print 'Content-type: text/html'
print
print '<html><body>'
form = cgi.FieldStorage()
for key in form.keys():
    value = form.getvalue(key)
    if isinstance(value, list):
        value = '[' + ', '.join(value) + ']'
    print '<p>%s: %s</p>' % (cgi.escape(key), cgi.escape(value))
print '</body></html>'

URL	Value of `a`	Value of `b`
`http://www.third-bit.com/swc/show_params.py?a=0`	`"0"`	None
`http://www.third-bit.com/swc/show_params.py?a=0&b=hello`	`"0"`	`"hello"`
`http://www.third-bit.com/swc/show_params.py?a=0&b=hello&a=22`	`[0, 22]`	`"hello"`
Table 24.3: Example Parameter Values

Send comments

Development Tips

During development, add import cgitb; cgitb.enable() to the top of the program
- cgitb is the CGI traceback module
- When enabled, it will create a web page showing a stack trace when something goes wrong in your script
Testing whether a FieldStorage value is a string or a list is tedious
- In almost all cases, you'll know whether to expect one value or many
- Use FieldStorage.getfirst(name) to get the unique value
  - Returns the first, if there are many
- FieldStorage.getlist(name) always returns a list of values
  - Empty list if there's no data associated with name
  - If there's only one value, get a single-item list
Send comments

Maintaining State

Often want to change the data a server is managing, as well as read it
- Update a description of an experiment, change your preferred email address, etc.
The industrial-strength solution is to use a three-tier architecture

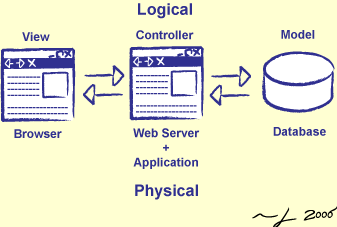

- Figure 24.5: Three Tier Architecture
- CGI program stuffs parameters from HTTP requests into SQL queries
- Runs the queries
- Translates results into HTML to send back to the client
Send comments

Maintaining State in Files

Simple programs can often get away with using files
- The CGI program re-reads the file each time it processes a request
- And re-writes it if there have been any updates

Example: append messages to a web page

Old messages are saved in a file, one per line

Hi, is anyone reading this site?
I was wondering the same thing.
I wasn't sure if we were supposed to post here.
Good point.  Is there way to delete messages?

Script checks the incoming parameters to decide what to do

If newmessage is there, append it, and display results
If newmessage isn't there, someone's visiting the page, rather than submitting the form

# Get existing messages.
infile = open('messages.txt', 'r')
lines = [x.rstrip() for x in infile.readlines()]
infile.close()

# Add more data?
form = cgi.FieldStorage()
if form.has_key('newmessage'):
    lines.append(form.getfirst('newmessage'))
    outfile = open('messages.txt', 'w')
    for line in lines:
        print >> outfile, line
    outfile.close()

Send comments

HTML Generation

Note that there is no static HTML page in this example
- What the user sees is always generated by a program

# Display.
print 'Content-Type: text/html'
print
print '<html><body>'
for line in lines:
    print '<p>' + line + '</p>'
print '''
<form action="http://www.third-bit.com/swc/message_form.py" method="post">
  <p>Your message:
     <input name="newmessage" type="text"/>
  </p>
  <p>
    <input type="submit"/>
    <input type="reset"/>
  </p>
</form>
'''
print '</body></html>'

Send comments

HTML Templating

A lot of this program is devoted to copying values into an HTML template
- There are lots of good systems out there, in many languages, for doing this
- Kid in Python
- Java Server Pages (JSPs) in Java
- Please do not write one of your own
Send comments

What About Concurrency?

What happens if two users try to save messages at the same time?
- I/O is typically slower than processing
- So most web servers try to overlap operations
Race condition:
- First instance of message_form.py opens messages.txt, reads lines, closes file
- Second instance opens messages.txt, reads the same lines, closes file
- First instance re-opens file, writes out original data plus one new line
- Second instance re-opens file, writes out original plus a different new line
- First instance's message has been lost!
Send comments

File Locking

Solution is to lock the file
- As the name implies, gives one process exclusive rights to the file
- After the first process acquires the lock, any other process that tries to read or write the file is suspended until the first releases it
Mechanics are different on different operating systems
- But the Python Cookbook includes a generic file locking function that works on both Unix and Windows
Send comments

Implementing Locking

# Get existing messages.
msgfile = open('messages.txt', 'r+')
fcntl.flock(msgfile.fileno(), fcntl.LOCK_EX)
lines = [x.rstrip() for x in msgfile.readlines()]

# Add more data?
form = cgi.FieldStorage()
if form.has_key('newmessage'):
    lines.append(form.getfirst('newmessage'))
    msgfile.seek(0)
    for line in lines:
        print >> msgfile, line

# Unlock and close.
fcntl.flock(msgfile.fileno(), fcntl.LOCK_UN)
msgfile.close()

Send comments

Who Are You?

How to maintain state on the client?
- Need to know which shopping cart to display for a particular user
HTTP is a stateless protocol
- If a client makes a second (or third, or fourth…) request, server has no reliable way of connecting it to the first one
Can guess based on client address, elapsed time, etc.
- But it's just a guess
Send comments

Cookies

Solution is for the server to create a cookie
- A string that is sent to the client in an HTTP response header
Client saves it (either in memory or on disk)

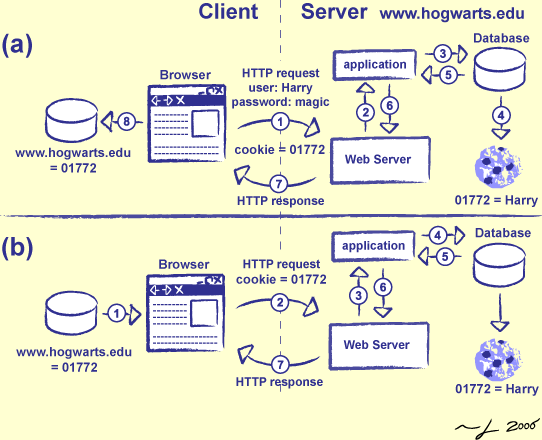

- Figure 24.6: Cookies
The next time the client sends a request to the site, it sends the cookie back to the server
- Like giving someone a claim check for their luggage
Send comments

Creating Cookies

Represent cookies in Python using Cookie.SimpleCookie
- Do not use SmartCookie: it is potentially insecure
When creating, add values to a cookie as if it were a dictionary
- Convert it to a string (e.g., by printing it) to create the required HTTP header
When the cookie comes back:
- Get the value associated of the environment variable "HTTP_COOKIE"
- Create a SimpleCookie
- Pass the "HTTP_COOKIE" value to the cookie's load method
Send comments

Cookie Example

Example: count the number of times a user has visited a web site
- If there's no cookie, create one with a count of 1
- Otherwise, increment the count
- Create a new cookie to send back to the user
- Display the count

# Get old count.
count = 0
if os.environ.has_key('HTTP_COOKIE'):
    cookie = Cookie.SimpleCookie()
    cookie.load(os.environ['HTTP_COOKIE'])
    if cookie.has_key('count'):
        count = int(cookie['count'].value)

# Create new count.
count += 1
cookie = Cookie.SimpleCookie()
cookie['count'] = count

# Display.
print 'Content-Type: text/html'
print cookie
print
print '<html><body>'
print '<p>Visits: %d</p>' % count
print '</body></html>'

Send comments

Cookie Tips

Can control how long a cookie is valid by setting an expiry value
- Either the number of milliseconds
- Or the time it should expire (in UTC)
  - Use time.asctime(time.gmtime()) to create the value
Do not put sensitive information in cookies
- Browsers store them in files on disk
- Villains can watch network traffic, and steal data
Cookies should instead be random values that act as keys into server-side information
- Talk about this more in the next lecture
Send comments

Summmary

CGI is example of event-driven programming
- The framework invokes your code at specific times, and passes it specific information
- What happens the rest of the time isn't your concern
  - At least, until something goes wrong, and you have to debug it
Simple CGI programs can accomplish a lot
- The entire first generation of web applications were built this way
But they can easily become very complicated
- Discuss alternatives in the final lecture
Send comments

Exercises

Exercise 24.1:

One way to test a CGI application is to send it HTTP requests, and examine the responses. Write a program that takes a hostname, port, and partial URL as command-line parameters, and sends the URL to the server identified by the hostname and port. The program should display the status code, reason, headers, and response page (if any) that are returned by the web server.

For example, if your program is run as httptest localhost 80 /greeting.html, it should send a request for /greeting.html to a web server running on port 80 on the local machine, and display something like:

STATUS: 200
REASON: OK
HEADERS:
        content-length [49]
        server ['Apache/2.0.54 (Debian GNU/Linux) DAV/2 SVN/1.1.4 mod_python/3.1.3 Python/2.3.5]
        last-modified ['Wed, 19 Apr 2006 13:59:19 GMT']
        date ['Sun, 30 Apr 2006 14:12:13 GMT']
        content-type ['text/html']
PAGE:
        <html>
        <body>
        <h1>Hello, CGI!</h1>
        </body>
        </html>

What are the pros and cons of testing a CGI application this way?

Exercise 24.2:

Another way to test a CGI application is to construct a mock container to take the place of the web server. As described in the lecture, CGI applications read data from environment variables and standard input; by using the subprocess module described in the integration lecture, you can run the CGI yourself, passing it whatever test data you want. Write a program that does this. (For bonus marks, explain how you would test the mock container…)

Exercise 24.3:

The third way to test a CGI application is to construct a mock container that calls the CGI directly, rather than creating a new process and passing it data through environment variables and standard input. In order for this to work, the CGI program must import specially-crafted versions of the sys and os libraries that provide the CGI with data from the testing program, rather than reading it from the real sources:

if testing:
    import test_sys as sys
    import test_os as os
else:
    import sys, os

What other changes must be made to the CGI application to allow it to be tested this way? What are the pros and cons of making such changes?

Send comments
