# Sets, Dictionaries, and Complexity

## Introduction

• The world is not made of lists
• Just because it's the first data structure you meet, doesn't make it the right one for every task
• This lecture introduces two other fundamental data structures
• Allow you to create programs that are simpler and more efficient
• Also look at what “efficient” really means

## You Can Skip This Lecture If...

• You know what a set is
• You understand why a set's elements must be immutable
• You know what O-notation is
• You know what a dictionary is

## Sets

• A set is an unordered collection of distinct items
• Unordered: items are looked up by value, rather than location
• Distinct: any value appears at most once
• Fundamental in mathematics, but an afterthought in most programming languages
• The `set` type is built in to Python 2.4 and higher
• Create a new set by calling `set()`
• Then insert and remove values, test for membership, etc.
• ```vowels = set()
for char in 'aieoeiaoaaeieou':
print vowels
```
```Set(['a', 'i', 'e', 'u', 'o'])
```

## Set Operations

• Like other objects, sets have methods
• Many of which can be expressed using operators as well
• MethodPurposeExampleResultAlternative Form
Example values:`ten = set(range(10))``lows = set([0, 1, 2, 3, 4])``odds = set([1, 3, 5, 7, 9])`
`add`Add an element to a set`lows.add(9)``None``lows` is now `set([0, 1, 2, 3, 4, 9]])`
`clear`Remove all elements from the set`lows.clear()``None``lows` is now `set()`
`difference`Create a set with elements that are in one set, but not the other`lows.difference(odds)``set([0, 2, 4]])``lows - odds`
`intersection`Create a set with elements that are in both arguments`lows.intersection(odds)``set([1, 3]])``lows & odds`
`issubset`Are all of one set's elements contained in another?`lows.issubset(ten)``True``lows <= ten`
`issuperset`Does one set contain all of another's elements?`lows.issuperset(odds)``False``lows >= odds`
`remove`Remove an element from a set`lows.remove(0)``None``lows` is now `set([1, 2, 3, 4]])`
`symmetric_difference`Create a set with elements that are in exactly one set`lows.symmetric_difference(odds)``set([0, 2, 4, 5, 7, 9]])``lows ^ odds`
`union`Create a set with elements that are in either argument`lows.union(odds)``set([0, 1, 2, 3, 4, 5, 7, 9]])``lows | odds`
Table 12.1: Set Methods and Operators

## Set Example

• Have several files with observations of birds
• Want to find out which species have been seen
• Program:
• ```lines = [
]

seen = set()
for line in lines:

for bird in seen:
print bird
```
```northern fulmar
snow goose
long-tailed jaeger
```
• Note: `for` loops over the values in the set

## How Set Values Are Stored

• Implementation goal is to make lookup as quick as possible
• Without making insertion and removal expensive
• Use a hash table
• Figure 12.1: Hashing

• Calculate a hash code for the object being inserted
• Store the value at that location in an array
• If the hash function is good, collisions will be rare
• When they occur, chain values together in a sub-list
• Result: looking up a value takes constant time, regardless of how many values are being stored

## Immutability

• This only works if a value's hash code never changes after it is inserted
• If it does, the value will be in the wrong place

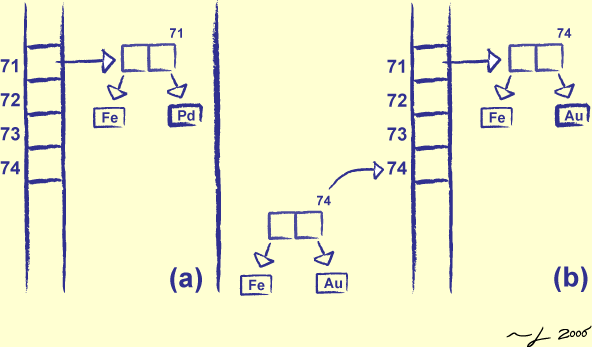

• Figure 12.2: Misplaced Values

• Python therefore only allows sets to contain immutable values
• Booleans, numbers, strings, tuples…
• …but not lists
• ```values = set()
print values
print values
print values
```
```        Traceback (most recent call last):
File "mutable_in_set.py", line 8, in ?
File "/usr/lib/python2.3/sets.py", line 521, in add
self._data[element] = True
TypeError: list objects are unhashable

```
• This is one of the reasons tuples were invented
• Allow you to store multi-part values like `("snow", "goose")`

## Frozen Sets

• What about sets of sets?
• Sets themselves have to be mutable, so that values can be inserted and removed
• Python also provides “frozen" sets
• No changes allowed after creation
• So they're almost always initialized from a collection of some kind
• ``````\$ python
```>>> birds = set()
>>> arctic = frozenset(['goose', 'tern'])
>>> print birds
```set([frozenset(['goose', 'tern'])])
```AttributeError: 'frozenset' object has no attribute 'add'
``````

## A Note on Language Design

• Many languages allow mutable elements in sets, and trust users not to modify them after insertion
• Which is a rich source of hard-to-find bugs
• Could also have values keep track of which sets they're in
• “Move” them when their values change
• Would make all programs slow for the benefit of a few
• Every software system contains tradeoffs like this

## Efficiency

• So is using sets worthwhile?
• Imagine storing species names in a list instead of a set
• Each `if name in seen` check requires N/2 comparisons on average
• So building up those N values requires N(N+1)/4 comparisons
• Only requires N for a set
• Difference is dramatic

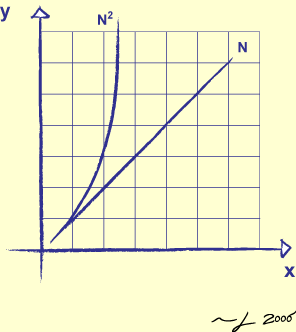

• Figure 12.3: List vs. Set Performance

## Complexity Curves

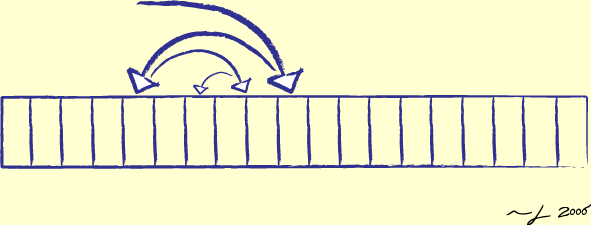

• Can get better performance out of the list if we keep it sorted
• K checks is enough to find a value in a list of length 2K
• So a list containing N values can be searched in log2N computational steps
• Building a list of N values therefore requires roughly N log2 N steps

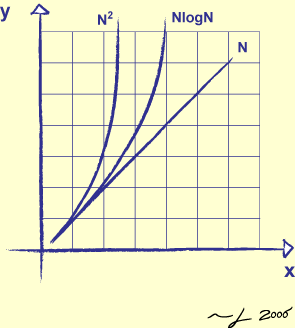

• Figure 12.5: List vs. Set Performance Revisited

## Algorithmic Complexity

• The relationship between problem size and running time is called algorithmic complexity
• Usually described in terms of upper bounds
• If f(x) < kg(x) for large x and some constant k, then f(x) is O(g(x))
• For example:
• Something that takes the same time, regardless of data size, is O(1)
• If the time grows as the logarithm of the data size, it is O(log N)
• If the time is proportional to the number of values, it is O(N)
• Storing species names in a list is O(N2)
• Because if you throw away the constant 4, the difference between N(N+1)/4 = (N2 + N)/4 and N2 becomes insignificant as N grows large

## Motivating Dictionaries

• Suppose you want to count how often each species of bird is seen
• Can't store `(name, count)` in set…
• …because then you couldn't look up a species' count unless you already knew what it was
• Could fall back on lists of pairs…
• Better solution: store extra data with each element of a set
• A dictionary associates one value with each of its keys
• An unordered mutable collection
• Also called maps, hashes, and associative arrays
• Often visualized as two-column table
• Figure 12.6: Dictionaries as Tables

## Creating and Indexing

• Create a dictionary by putting key/value pairs inside `{}`
• `{'Newton':1642, 'Darwin':1809}`
• Empty dictionaries are written `{}`
• Look up the value associated with a key using `[]`
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809
}
print "Darwin's birthday:", birthday['Darwin']
print "Newton's birthday:", birthday['Newton']
```
```Darwin's birthday: 1809
Newton's birthday: 1642
```
• Can only access keys that are present
• Just as you can't index elements of a list that aren't there
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809
}
print birthday['Turing']
```
```Traceback (most recent call last):
File "key_error.py", line 5, in ?
print birthday['Turing']
KeyError: 'Turing'
```

## Updating Dictionaries

• Assigning to a dictionary key:
• Creates a new entry if the key is not already in dictionary
• Overwrites the previous value if the key is already present
• ```birthday = {}
birthday['Darwin'] = 1809
birthday['Newton'] = 1942  # oops
birthday['Newton'] = 1642
print birthday
```
```{'Darwin': 1809, 'Newton': 1642}
```
• Remove an entry using `del d[k]`
• Can only remove entries that are actually present
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809,
'Turing' : 1912
}

print 'Before deleting Turing:', birthday
del birthday['Turing']
print 'After deleting Turing:', birthday
```
```Before deleting Turing: {'Turing': 1912, 'Newton': 1642, 'Darwin': 1809}
After deleting Turing: {'Newton': 1642, 'Darwin': 1809}
```
```Traceback (most recent call last):
File "dict_del.py", line 10, in ?
```

## Membership and Loops

• Test whether a key `k` is in a dictionary `d` using `k in d`
• Once again, inconsistent with behavior of lists, but useful
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809
}

for name in ['Newton', 'Turing']:
if name in birthday:
print name, birthday[name]
else:
print 'Who is', name, '?'
```
```Newton 1642
Who is Turing ?
```
• `for k in d` loops over the dictionary's keys (rather than its values)
• Different from lists, where `for` loops over the values, rather than indices
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809,
'Turing' : 1912
}
for name in birthday:
print name, birthday[name]
```
```Turing 1912
Newton 1642
Darwin 1809
```

## Dictionary Methods

• Yes, dictionaries are objects too…
• MethodPurposeExampleResult
`clear`Empty the dictionary.`d.clear()`Returns `None`, but `d` is now empty.
`get`Return the value associated with a key, or a default value if the key is not present.`d.get('x', 99)`Returns `d['x']` if `"x"` is in `d`, or 99 if it is not.
`keys`Return the dictionary's keys as a list. Entries are guaranteed to be unique.`birthday.keys()``['Turing', 'Newton', 'Darwin']`
`items`Return a list of (key, value) pairs.`birthday.items()``[('Turing', 1912), ('Newton', 1642), ('Darwin', 1809)]`
`values`Return the dictionary's values as a list. Entries may or may not be unique.`birthday.values()``[1912, 1642, 1809]`
`update`Copy keys and values from one dictionary into another.See the example below.
Table 12.2: Dictionary Methods in Python
• Example:
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809,
'Turing' : 1912
}

print 'keys:', birthday.keys()
print 'values:', birthday.values()
print 'items:', birthday.items()
print 'get:', birthday.get('Curie', 1867)

temp = {
'Curie'    : 1867,
'Hopper'   : 1906,
'Franklin' : 1920
}
birthday.update(temp)
print 'after update:', birthday

birthday.clear()
print 'after clear:', birthday
```
```keys: ['Turing', 'Newton', 'Darwin']
values: [1912, 1642, 1809]
items: [('Turing', 1912), ('Newton', 1642), ('Darwin', 1809)]
get: 1867
after update: {'Curie': 1867, 'Darwin': 1809, 'Franklin': 1920, 'Turing': 1912, 'Newton': 1642, 'Hopper': 1906}
after clear: {}
```

## Counting Frequency

• So, back to our birds…
• Use species names as keys in a dictionary
• The value associated with each key is the number of times it has been seen so far
• ```# Data to count.
names = ['tern','goose','goose','hawk','tern','goose', 'tern']

# Build a dictionary of frequencies.
freq = {}
for name in names:

# Already seen, so increment count by one.
if name in freq:
freq[name] = freq[name] + 1

# Never seen before, so add to dictionary.
else:
freq[name] = 1

# Display.
print freq
```
```{'goose': 3, 'tern': 3, 'hawk': 1}
```

## A Slight Simplification

• Can simplify this code using `dict.get`
• Get either the count associated with the key, or 0, then add one to it
• ```freq = {}
for name in names:
freq[name] = freq.get(name, 0) + 1
print freq```
```{'goose': 3, 'tern': 3, 'hawk': 1}
```

## Imposing Order

• A dictionary's keys are unordered (just like the elements in a set)
• Remember, we deliberately randomize (hash) in order to make lookup fast
• So, to print counts in alphabetic order:
• Get the list of keys
• Sort that list
• Loop over it
• ```keys = freq.keys()
keys.sort()
for k in keys:
print k, freq[k]```
```goose 3
hawk 1
tern 3
```

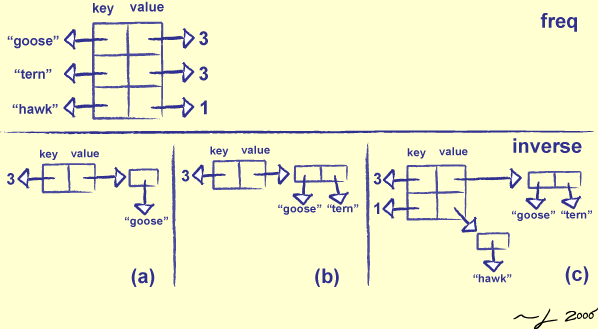

## Inverting a Dictionary

• But how to print in order of frequency?
• Need to invert the dictionary
• I.e., swap the keys and values
• But there might be collisions, since values aren't guaranteed to be unique
• What is the inverse of `{'a':1, 'b':1, 'c':1}`?
• Solution: store a list of values instead of just a single value
• Use `dict.get(key, [])` instead of `dict.get(key, 0)`
• ```inverse = {}
for (key, value) in freq.items():
seen = inverse.get(value, [])
seen.append(key)
inverse[value] = seen

keys = inverse.keys()
keys.sort()
for k in keys:
print k, inverse[k]```
```1 ['hawk']
3 ['goose', 'tern']
```
• Figure 12.7: Inverting a Dictionary

## Another Way to Do It

• The previous example can also be written as:
```inverse = {}
for (key, value) in freq.items():
if value not in inverse:
inverse[value] = []
inverse[value].append(key)```
• I.e., store an empty list when needed, and always append

## Formatting Strings with Dictionaries

• Complex string formatting can be hard to understand
• Especially if one value needs to be used several times
• Instead of a tuple, `"%"` can take a dictionary as its right argument
• Use `"%(varname)s"` inside the format string to identify what's to be substituted
• ```birthday = {
'Newton' : 1642,
'Darwin' : 1809,
'Turing' : 1912
}
entry = '%(name)s: %(year)s'
for (name, year) in birthday.items():
temp = {'name' : name, 'year' : year}
print entry % temp
```
```Turing: 1912
Newton: 1642
Darwin: 1809
```

## Extra Keyword Arguments

• Consider this example:
• ```def settings(title, **kwargs):
print 'title:', title
for key in kwargs:
print '    %s: %s' % (key, kwargs[key])

settings('nothing extra')
settings('colors', red=0.0, green=0.5, blue=1.0)
```
```title: nothing extra
title: colors
blue: 1.0
green: 0.5
red: 0.0
```
• The `**` in front of `kwargs` means “Put any extra keyword arguments in a dictionary, and assign it to `kwargs`
• Allows you to create functions that can handle arbitrary arguments

## Extra Positional Arguments

• Can do something similar with extra positional (unnamed) arguments
• ```def sum(*values):
result = 0.0
for v in values:
result += v
return result

print "no values:", sum()
print "single value:", sum(3)
print "five values:", sum(3, 4, 5, 6, 7)
```
```no values: 0.0
single value: 3.0
five values: 25.0
```
• The single `*` in front of `values` means “Put any extra unnamed arguments in a tuple, and assign it to `values`
• Can have at most one `*` argumen per function
• Question: what does `**` mean? How and why would you use it?

## Summary

• The world isn't made of lists
• Other basic data structures can make your programs much simpler, and much more efficient
• And learning a few advanced features of whatever language you're using can do the same
