Binary Data

Version 1107 (Mon Nov 27 20:46:05 2006)

All data is stored as 1's and 0's
But those 1's and 0's may represent:
- Characters that can be displayed as text
- Something else
That “something else” is (misleadingly) called binary data
- Usually means “anything you can't manipulate with a standard text editor”
This lecture describes how binary values are stored and manipulated
- Please, don't write code to manipulate binary formats unless you absolutely have to
- Good libraries exist for working with every image, sound, and video format out there
Send comments

You Can Skip This Lecture If...

You know what two's complement is
You know what bit shifting is
You know that roundoff errors are not random
You know how to pack and unpack binary values
Send comments

Why Binary?

Size: "10239472" is 8 bytes long, but the 32-bit integer it represents is 4 bytes
Speed: takes dozens of operations to add the integer represented by "34" to the one represented by "57"
Hardware interfaces: someone has to convert the electrical signal from the gas chromatograph to a readable number
Lack of anything better
- It's possible to represent images as text (ASCII art, PostScript)
- But sound? Or movies?
Send comments

How Numbers Are Stored

Positive numbers stored in base-2 format
- 1001₂ is (1×2³)+(0×2²)+(0×2¹)+(1×2⁰) = 9
Could use sign-and-value for negative numbers
- First bit is 0 for positive, 1 for negative
- 0011₂ is 3₁₀, and 1011₂ is -3₁₀
Problem: there are two zeroes (0000 and 1000)
Send comments

Two's Complement

Almost all computers use two's complement instead
- “Roll over” when going below zero, like a car's odometer
- 1111₂ is -1₁₀, 1110₂ is -2₁₀, etc.
- 1000₂ is the most negative 4-bit integer, 0111₂ the most positive
- Figure 18.1: Two's Complement
Asymmetric: there is one more negative number than positive
- Since there has to be room for 0 in the middle
Can still tell whether a number is positive or negative by looking at the first bit
Send comments

Bitwise Operators

Like most languages, Python has four operators that work on bits

Name	Symbol	Purpose	Example
And	`&`	1 if both bits are 1, 0 otherwise	`0110 & 1010 = 0010`
Or	`\|`	1 if either bit is 1	`0110 & 1010 = 1110`
Xor	`^`	1 if the bits are different, 0 if they're the same	`0110 & 1010 = 1100`
Not	`~`	Flip each bit	`~0110 = 1001`
Table 18.1: Bitwise Operators in Python

The name “xor” is short for “exclusive or”, i.e., either/or

Use these to write a function that displays the bits in an integer

def format_bits(val, width=1):
    '''Create a base-2 representation of an integer.'''
    result = ''
    while val:
        if val & 0x01:
            result = '1' + result
        else:
            result = '0' + result
        val = val >> 1
    if len(result) < width:
        result = '0' * (width - len(result)) + result
    return result

tests = [
    [ 0, None, '0'],
    [ 0, 4,    '0000'],
    [ 5, None, '101'],
    [19, 8,    '00010011']
]

for (num, width, expected) in tests:
    if width is None:
        actual = format_bits(num)
    else:
        actual = format_bits(num, width)
    print '%4d %8s %10s %10s' % (num, width, expected, actual)

   0     None          0          0
   0        4       0000       0000
   5     None        101        101
  19        8   00010011   00010011

Send comments

Shifting

Shifting an integer's bits left N places written as x << N
- Each leftward shift corresponds to multiplying by 2
- Just as shifting a decimal number left corresponds to multiplying by 10
- Example: 3<<2 is 0011₂<<2, or 1100₂, which is 12
Shifting a number right corresponds to division by 2 (throwing away the remainder)
- 7₁₀>>1 is 0111₂>>1, or 0011₂, which is 3₁₀
Send comments

Cautions

Shifting is not more efficient than multiplication and division on modern computers
What happens if the top bit changes value as a result of a shift?
- 6₁₀<<1 = 0110₂<<1 = 1100₂
- On a 4-bit machine, this is -4₁₀, not 12₁₀
Some machines preserve the sign bit when shifting down
- So 1100₂>>1 = 1110₂, instead of 0110₂
- Depends on the hardware being used
- Java provides a separate operator for this
Send comments

Setting and Clearing Bits

Can use bitwise and, or, and not to set specific bits to 1 or 0
- Do the same things to bit that logical operations do to Booleans
To set the i^th of x to 1:
- Create a value mask in which bit i is 1 and all others are 0
- Use x = x | mask
To set the i^th of x to 0:
- Create a value mask in which bit i is 1 and all others are 0
- Negate it using ~, so that the i^th bit is 0, and all the others are 1
- Use x = x & mask

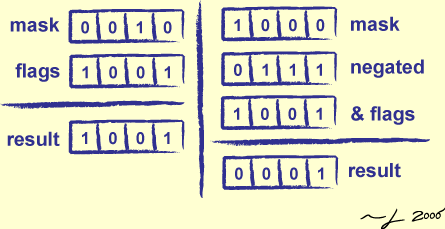

Figure 18.2: Setting and Clearing Bits

Send comments

Bit Flags

Can use bitwise operators to store several Boolean flags in a single integer
- Slower than storing each in a separate variable
- But uses much less space

Example: need to record whether a sample contains any mercury, phosphorus, or chlorine

Define constants to test for particular elements
- Use bit 1 for mercury, bit 2 for phosphorus, bit 3 for chlorine
Figure 18.3: Using Bits to Record Sets of Flags

#            hex     binary
MERCURY    = 0x01  # 0001
PHOSPHORUS = 0x02  # 0010
CHLORINE   = 0x04  # 0100

# Sample contains mercury and chlorine
sample = MERCURY | CHLORINE
print 'sample: %04x' % sample

# Check for various elements
for (flag, name) in [[MERCURY,    "mercury"],
                     [PHOSPHORUS, "phosphorus"],
                     [CHLORINE,   "chlorine"]]:
    if sample & flag:
        print 'sample contains', name
    else:
        print 'sample does not contain', name

sample: 0005
sample contains mercury
sample does not contain phosphorus
sample contains chlorine

Send comments

Floating Point

Floating point numbers are (much) more complicated
A 32-bit float has:
- One bit for the sign
- 23 bits for the mantissa (or value)
- 8 bits for the exponent

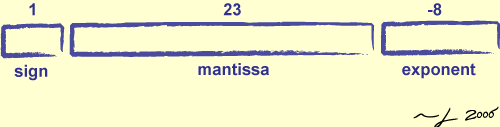

- Figure 18.4: Floating Point Representation
Floating point numbers are not real numbers
- Fixed number of bits per value means that only a limited set of values can be represented
- If the actual value isn't in that set, you must settle for the closest available approximation
Send comments

Floating Point Spacing

Consequence #1: values are unevenly spaced
- Less absolute precision for numbers with larger magnitudes
Example: 1 sign, 3 mantissa, 2 exponent bits for each number

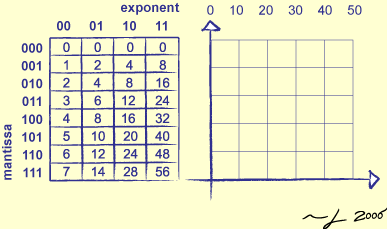

- Figure 18.5: Uneven Spacing of Floating-Point Numbers
Send comments

Floating Point Roundoff

Consequence #2: roundoff errors
- 6-bit system can represent 6, and ¼, but not 5¾
- So 6 - 0.25 is 6, not 5.75
  - And if 6 - 0.25 - 0.25 - 0.25 - 0.25 is evaluated left to right, the answer is still 6
- This is not random
  - Happens exactly the same way every time
- But it is very hard to reason about
  - Which is why people get Ph.D.'s in numerical analysis
Send comments

Binary I/O

I/O routines seen so far are line-based
Can also use byte-oriented routines
- f.read(N) reads (up to) next N bytes
  - Result is returned as a string, but there's no guarantee its contents are characters
  - If the file f is empty, returns None
- f.write(str) writes the bytes in the string str
Send comments

Binary I/O Mode

Caution: must open files in binary mode on Windows
- input = open(filename, 'rb') (and similarly for output)
Otherwise, the low-level routines Python relies on convert Windows line endings "\r\n" to Unix-style "\n"…
- …which is an unkind thing to do to an image

Example: open a file using "r", then in "rb"

Identical on Unix, but different on Windows

import sys
print sys.platform
for mode in ('r', 'rb'):
    f = open('open_binary.py', mode)
    s = f.read(40)
    f.close()
    print repr(s)

cygwin
'import sys\r\nprint sys.platform\r\nfor mode'

linux
'import sys\nprint sys.platform\nfor mode in '

Send comments

Packing and Unpacking

In C and Fortran, an integer is a raw 32-bit value
- fwrite(&array, sizeof(int), 3, file) will write 3 4-byte integers to a file
Python, Java, and other languages usually don't use raw values
- There's no guarantee that things like lists are stored contiguously in memory…
- …so programs need to pack data into contiguous bytes for writing…
- …and unpack those bytes to recreate the structures when reading

Figure 18.6: C Storage vs. Python Storage

Send comments

Packing Data

Packing looks a lot like formatting a string
- A format specifies the data types being packed (including sizes, where appropriate)
- This format exactly determines how much memory is required by the packed representation
The result of packing is a chunk of bytes
- Stored as a string in Python
- But as mentioned above, it's not a string of characters

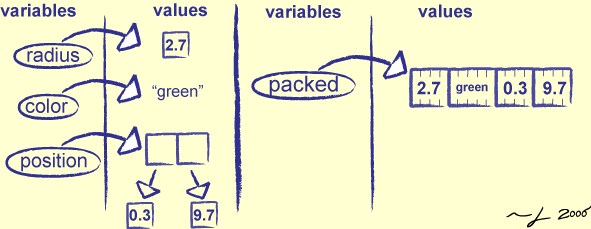

- Figure 18.7: Packing Data
Send comments

Unpacking Data

Unpacking reverses this process
- Read bytes from a “string” according to a format
- Use the data in these bytes to create Python data structures
Return the result as a tuple of values
Send comments

The struct Module

Use Python's struct module to pack and unpack

pack(fmt, v1, v2, …) packs the values v1, v2, etc. according to fmt, returning a string
unpack(fmt, str) unpacks the values in str according to fmt, returning a tuple

import struct

fmt = 'hh' # two 16-bit integers
x = 31
y = 65
binary = struct.pack(fmt, x, y)
print 'binary representation:', repr(binary)
normal = struct.unpack(fmt, binary)
print 'back to normal:', normal

binary representation: '\x1f\x00A\x00'
back to normal: (31, 65)

Send comments

Hexadecimal Characters

What's '\x1f\x00A\x00'?
- If Python finds a character in a string that doesn't have a printable representation, it prints a 2-digit hexadecimal (base-16) escape sequence
  - Uses the letters A-F (or a-f) to represent the digits from 10 to 15
- So this string represents the four bytes ['\x1f', '\x00', 'A', '\x00']
  - 1f₁₆ is (1×16 + 15), or 31
  - ASCII code for the letter "A" is 65₁₀
Send comments

Format Specifiers

Format	Meaning
`"c"`	Single character (i.e., string of length 1)
`"B"`	Unsigned 8-bit integer
`"h"`	Short (16-bit) integer
`"i"`	32-bit integer
`"f"`	32-bit float
`"d"`	Double-precision (64-bit) float
`"2"`	String of fixed size (see below)
Table 18.2: Packing Format Specifiers

Any format can be preceded by a count
- E.g., "4i" is four integers
How much data is packed is specified by the format
- Can pack the lowest 8 or 16 bits of an integer using "B" or "h" instead of the full 32
Send comments

Calculating Sizes

Must always specify the size of strings
- E.g., "4s" for a 4-character string
- Otherwise, how would unpack know how much data to use?
calcsize(fmt) calculates how large (in bytes) the data produced using fmt will be
- Data sizes can vary from platform to platform
- And the computer is better at doing arithmetic than you are
Send comments

Endianness

Note that the least significant byte of the integer comes first
- This is called little-endian, and is used by all Intel processors
- Other chips put the most significant byte first (big-endian)

If you move data from one architecture to another, it's your responsibility to flip the bytes…

…because the machine doesn't know what the bytes mean

import struct

packed = struct.pack('4c', 'a', 'b', 'c', 'd')
print 'packed string:', repr(packed)

left16, right16 = struct.unpack('hh', packed)
print 'as two 16-bit integers:', left16, right16

all32 = struct.unpack('i', packed)
print 'as a single 32-bit integer', all32[0]

float32 = struct.unpack('f', packed)
print 'as a 32-bit float', float32[0]

packed string: 'abcd'
as two 16-bit integers: 25185 25699
as a single 32-bit integer 1684234849
as a 32-bit float 1.67779994081e+22

Send comments

Packing Variable-Length Data

How to store a variable-length vector of integers?
- Store the number of elements in a fixed-size header
- Then store that many integers one by one

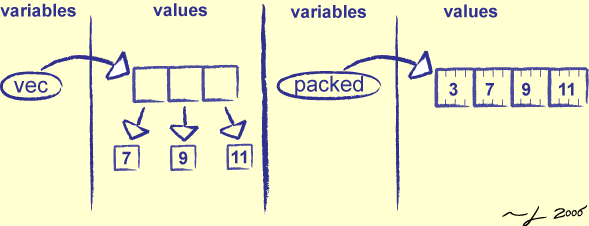

- Figure 18.8: Packing a Variable-Length Vector

Packing is easy:

def pack_vec(vec):
    buf = struct.pack('i', len(vec))
    for v in vec:
        buf += struct.pack('i', v)
    return buf
def unpack_vec(buf):

    # Get the count of the number of elements in the vector.
    int_size = struct.calcsize('i')
    count = struct.unpack('i', buf[0:int_size])[0]

    # Get 'count' values, one by one.
    pos = int_size
    result = []
    for i in range(count):
        v = struct.unpack('i', buf[pos:pos+int_size])
        result.append(v[0])
        pos += int_size

    return result

Send comments

Unpacking Variable-Length Data

Unpacking is a little harder

Have to step up to the right location in the packed string on each pass through the unpacking loop

def unpack_vec(buf):

    # Get the count of the number of elements in the vector.
    int_size = struct.calcsize('i')
    count = struct.unpack('i', buf[0:int_size])[0]

    # Get 'count' values, one by one.
    pos = int_size
    result = []
    for i in range(count):
        v = struct.unpack('i', buf[pos:pos+int_size])
        result.append(v[0])
        pos += int_size

    return result

Send comments

Dynamic Formats

Problem: what if you want to pack strings, but don't know their length in advance?
Solution: create the format string on the fly, and save the string's length as well as its characters

def pack_strings(strings):
    result = ''
    for s in strings:
        length = len(s)
        format = 'i%ds' % length
        result += struct.pack(format, length, s)
    return result
def unpack_strings(buf):
    int_size = struct.calcsize('i')
    pos = 0
    result = []
    while pos < len(buf):
        length = struct.unpack('i', buf[pos:pos+int_size])[0]
        pos += int_size
        format = '%ds' % length
        s = struct.unpack(format, buf[pos:pos+length])[0]
        pos += length
        result.append(s)
    return result

Send comments

Unpacking Dynamic Formats

Unpacking is the same as it was for vectors

def unpack_strings(buf):
    int_size = struct.calcsize('i')
    pos = 0
    result = []
    while pos < len(buf):
        length = struct.unpack('i', buf[pos:pos+int_size])[0]
        pos += int_size
        format = '%ds' % length
        s = struct.unpack(format, buf[pos:pos+length])[0]
        pos += length
        result.append(s)
    return result

Send comments

Metadata

Metadata literally means “data about data”
- I.e., data that describes other data, such as the date it was collected, or its format
When creating binary files, put a header at the start of the file that describes the format of the data the file contains
- Advantages:
  - One parser handles all data files
  - Can't lose the format: programs come and go, but data is forever
- Disadvantages:
  - Slower (generality always is)
  - Reader is more complicated than a single special-purpose reader would be…
  - …but simpler than the sum of all the special-purpose readers you'd have to write…
  - …and you only have to debug it once
Send comments

Metadata File Structure

Files have a three-part structure:
- Integer (fixed size) recording the length of the metadata
- Metadata (N bytes) describing the format of the records in the file
- The records themselves
- Figure 18.9: Structure of a Binary File With Metadata
Send comments

Packing with Metadata

First step is to store a list of identically-structured records to a file

def store(outf, format, values):
    '''Store a list of lists, each of which has the same structure.'''
    length = struct.pack('i', len(format))
    outf.write(length)
    outf.write(format)
    for v in values:
        temp = [format] + v
        binary = struct.pack(*temp)
        outf.write(binary)

Notice how struct.pack is called
- It takes each value to be packed as a separate argument, rather than taking a list of values
- First argument has to be the format
- So create a list with the format, and the values to be packed, and apply struct.pack to it
- Common pattern when using variable number of arguments
Send comments

Unpacking with Metadata

Second step is to unpack the bytes created by store

Read the size of the metadata, then the metadata, then the data

def retrieve(inf):
    '''Retrieve data from a self-describing file.'''
    data = inf.read(struct.calcsize('i'))
    format_length = struct.unpack('i', data)[0]
    format = inf.read(format_length)
    record_size = struct.calcsize(format)
    result = []
    while True:
        data = inf.read(record_size)
        if not data:
            break
        values = list(struct.unpack(format, data))
        result.append(values)
    return result

Send comments

Testing

Final step is to test that everything works

Just as important as steps 1 and 2

from cStringIO import StringIO
tests = [
    ['i',  [[17]]],
    ['ii', [[17, 18]]],
    ['ii', [[17, 18], [19, 20], [21, 22]]],
    ['if', [[17, 18.0], [19, 20.0]]]
]
for (format, original) in tests:
    storage = StringIO()
    temp = store(storage, format, original)
    storage.seek(0)
    final = retrieve(storage)
    assert original == final

Note that there's no output: tests should only ask for attention when something goes wrong

Send comments

Summary

Binary data is to programming what chemistry is to biology
- You don't want to spend any more time thinking at its level than you have to…
- …but when you do have to, there's no substitute
Remember: libraries already exist to handle (almost) every binary format ever created
- The easiest code to debug is the code you didn't actually have to write
Send comments
