Surface Distance

September 5, 2006

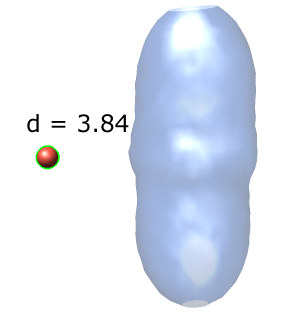

This tool reports the distance from selected atoms or markers to the nearest point on a displayed surface. Distances are calculated using the keyboard accelerator "sd". Keyboard acclerators are activated with menu entry Tools / General Controls / Accelerators On. Distances between each selected atom or marker and each displayed surface model are reported to the Reply Log. The reply log can be shown using menu entry Favorites / Reply Log. The main window status line also reports the distance, although if multiple distances are calculated, only the last is shown.

Example Distance Report

Distance from #0:18.water@O to surface MSMS main surface of 1a0m.pdb
 d = 2.09, surface point (3.14, -1.28, 7.85), side 1

The coordinates of the nearest surface point and the side of the surface the point lies on (+1 = outside, -1 = inside) are given.

Technical Notes and Limitations

Closest point definition. The closest surface point may lie within a triangle, on a triangle edge, or at a triangle vertex of the triangulated surface. If multiple surface points are equidistant only one is reported.

Slow calculation. The closest point is calculated in Python and is rather time consuming (~1 second for one distance to a 10,000 triangle surface on a 2006 desktop PC). The distance calculation code may be rewritten in C++ in the future.

Reported precision. Three significant digits are reported for distance values and nearest point positions.
