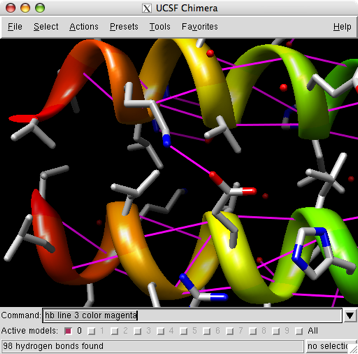

Molecular structures and other 3D data are displayed in the graphics window. The background color can be changed:

There is normally a menu bar across the top: A pop-up version of the menu can be obtained with the F8 key, the application key on a Windows keyboard, or a mouse button assigned to this function in the Mouse preferences.

The Chimera window may also include a toolbar for icons, a command line, and a status line. The initial appearance of the window depends on any startup files and predefined preferences.

The toolbar is only shown when it contains one or more icons, as specified in the Tools preferences. Toolbar location and orientation can be controlled in the General preferences.

When fullscreen mode (Windows only) is specified with the startup option --fullscreen or in the General preferences, the graphics window without borders will occupy an entire screen. The menu bar and any other components (tool bar, command line, and status line) can then be opened as a separate window with the F2 key, or just a pop-up menu can be used.

Command Line icon

Command Line

Chimera commands are entered at the Command Line. There are several ways to start the Command Line, a tool in the General Controls category. Command targets are indicated with atom specification strings, which can include names, properties, zones, and combinations of these.

Below the command entry area, the number of each open model is shown in bold and a checkbox shows whether the model is activated for motion. Clicking the box toggles between the activated (default) and deactivated states. Checking All activates all open models. Model activation status can also be controlled in the Model Panel and with the command select.

Ctrl-u erases the command line contents; the list of past commands can be traversed with up arrow and down arrow or Ctrl-p and Ctrl-n. In addition, the most recent commands and a full Command History can be accessed from the pulldown menu (marked with a black inverted triangle).

Status Line

Status Line

The display of a line for status messages can be controlled in the Messages preferences and the Keyboard Shortcuts dialog. The selection status button on the right reports what items are selected; clicking it opens the Selection Inspector.
