Movie

Movie replays molecular dynamics trajectories. There are several ways to start Movie, a tool in the Molecular Dynamics category.

Several formats are supported:

All or a contiguous subsegment of a trajectory can be loaded.

A further option is a metafile, simply a text file that specifies the input files/parameters. The first line designates trajectory type (such as amber or gromos, where case is unimportant) and optionally, starting and ending frame numbers of the range to be loaded. If no frame numbers are supplied, the entire trajectory will be loaded; however, if "?" is given for both the starting and ending frame numbers, a dialog for entering this information will appear. The remaining lines specify input files and parameters in the same order as in the dialog. For example:

amber 500 1000
dna.prmtop
dna.mdcrd

pdb
single
108d.pdb

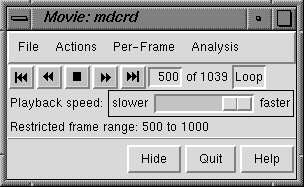

After input files and parameters have been specified, the first set of coordinates will be displayed and a movie controller will appear:

If a subsegment was specified, a message about the restricted frame range will be displayed temporarily. The total number of frames in the trajectory (whether loaded or not) will continue to be reported. Note that the coordinates for a given frame will not be read until that frame is viewed.

From left to right, the buttons mean: play backward continuously; go back one frame; stop; go forward one frame; and play forward continuously. The Loop button toggles between on and off states; when the option is on, forward play can wrap from the end to the beginning of the loaded trajectory and reverse play can wrap from the beginning to the end. The rate of continuous play can be adjusted with the Playback speed slider.

The Movie File menu allows the current frame or all frames that have been viewed to be saved as a PDB file. The Actions menu allows the view to be steadied based on selected atoms. The Per-Frame menu allows the definition of scripts to be executed at each trajectory frame update. The Analysis menu enables calculation and display of root-mean-square deviation (RMSD) maps.

Hide closes the interface without exiting from Movie; the interface can be reopened using the Tools menu entry for the instance of Movie. Quit exits from Movie and removes the structure from the Chimera window. Help opens this manual page in a browser window.

• Save PDB... open a dialog to save the current frame or all frames that have been viewed as a PDB file

• Hold selection steady - transform subsequent trajectory frames to keep the selected atoms in the same place and orientation, as much as possible (since the atoms may move relative to one another). For best results, the selection should include at least three atoms, not linearly arranged, to define a frame of reference. If the selection is changed, Hold selection steady must be chosen again to start using the new selection.


• Stop holding steady - return to the default behavior of only transforming the coordinates according to user manipulations and commands

• Define script... open a dialog for entering a script to be executed after each trajectory frame update.

  Scripts can consist of Chimera commands or Python code, and the frame number can be incorporated. Python scripts can also access the molecule model instance. Script contents can be entered directly or inserted from a text file, and a script can be saved to a file for later use.

  OK and Apply execute the script with and without closing the dialog, respectively. If the movie is playing, the script will continue to be executed for each trajectory frame until Stop running script is chosen; if the movie is halted on a single frame, the script will be executed for that frame and will not be executed again until a different frame is shown. Python scripts do not need to import the chimera module since it is automatically imported. Clear deletes the contents of the script area.

• Stop running script - do not run the script after subsequent trajectory frame updates

• RMSD map... calculate a two-dimensional RMSD map containing all-by-all comparisons among specified frames:
  • Starting frame (first frame loaded, by default) - number of the first frame to include in RMSD calculations; must be within the range originally loaded
  • Use every [n]th frame - level of sampling within the indicated range
  • Ending frame (last frame loaded, by default) - number of the last frame to possibly include in RMSD calculations (if not skipped by sampling); must be within the range originally loaded
  • Lower RMSD threshold (white) (0.5 by default) - lower RMSD threshold for coloring, in angstroms; white will be used for this value and lower
  • Upper RMSD threshold (black) (3.0 by default) - upper RMSD threshold for coloring, in angstroms; black will be used for this value and higher. RMSD values between the thresholds will be mapped to grayscale.
  • Restrict map to current selection, if any (true/false) - whether to use only the selected atoms, when a selection exists
  • Ignore solvent/ions (true/false) - whether to omit atoms classified as solvent and ions from the calculations

  For each frame-to-frame comparison, the least-squares-fit RMSD between the indicated sets of atoms will be calculated, without applying any transformation.

  OK and Apply initiate the RMSD calculations with and without closing the dialog, respectively. The calculations may require additional frames to be read (frames within the loaded range are not actually read until viewed or otherwise used) and may take several minutes, depending on the size of the system and the number of frames. The Abort button on the RMSD map dialog allows termination of a calculation in progress.

  The following approaches are recommended for examining long trajectories or long trajectory segments:

  • using sparser sampling
  • limiting the calculation to fewer atoms, such as the backbone only; the calculation can be limited by including only selected atoms and/or omitting solvent/ions

  Multiple RMSD maps can be open at the same time. When the cursor is placed over a map, the corresponding frame numbers and RMSD value are given near the bottom of the dialog. Clicking on a map places the corresponding frame numbers in the Frame fields. Clicking Go changes the graphics display to the corresponding frame.
