CGLAUTH Implementation Information

Outline

  1. Background
  2. Requirements
  3. Architecture
  4. Components
    1. Authentication
      1. Kerberos
      2. SIA plugin
      3. mod_auth_kerb
      4. SSH Support
      5. Password Change Web Page
      6. Client support
      7. Periodic scripts
      8. Administration procedures
    2. Authorization
      1. OpenLDAP
      2. mod_authz_ldap
      3. LDAP Group Web Page
      4. Periodic scripts
      5. Administrators' Instructions
    3. Directory Services/Identity
      1. OpenLDAP
      2. Nightly Update Scripts
      3. Client support
      4. LDAP Lookup Web Page

I. Background

This document describes the current implementation of "CGLAUTH", which is the name I am using to encompass the identity, authentication, and authorization system implemented for the CGL computing environment. The system utilizes two key open source technologies: Kerberos and OpenLDAP. These technologies provide the fundamental underpinnings of the environment with a variety of other tools and technologies used as integration points or to provide interfaces to end users. The document outlines the requirements that were used to drive the design and implementation of the system, followed by the details of each major component and each key technology.

II. Requirements

The Computer Graphics Laboratory is an academic research computing environment that hosts two resources, the Resource for Biocomputing, Visualization, and Informatics (RBVI), an NIH NCRR Research Resource; and the Sequence Analysis and Consulting Service (SACS), a subscription service for UCSF researchers providing. As a result, there is limited support for administrative or technical resources to support the infrastructure. At the same time, there is a strong desire to provide an improved computing experience to the various users of the environment, and reduce the overhead of maintaining the environment. This is strongly reflected in the project requirements and some of the decisions made for what to implement and (more importantly), what not to implement.

CGLAUTH Requirements
  1. Constant or decreased administrative ongoing load on staff
    This is a fundamental and strict requirement (as discussed above). As part of the migration to the new system, it was allowed that there might be some increased adminsitrative overhead, but it should be of limited duration and additional load. This is probably more strictly a constraint that a requirement, but it works either way.
  2. Limit the ongoing development resources required
    Another constraint. While initial development was expected, the system must be implemented in such a way as to limit any ongoing development requirements.
  3. Single password for all CGL services
    This is the ultimate goal, and represents one part of the user experience improvements. The idea is to allow the user to use their CGLAUTH password to authenticate to their desktop, laptop, CGL resources such as the socrates cluster, CGL and lab web content, shared disk infrastructures, E-Mail, Calendar, and any other service that requires authenticateion to the CGL infrastructure.
  4. Single sign-on where feasible and consistent with requirements 1 & 2
    Single sign-on is a feature which limits the number of times a user needs to provide their username and password to gain services, ideally to a single network login. Kerberos provides the capabilities for single sign-on, but it requires support from the various applications and operating environments. The idea is to facilitate single sign-on when its available, but not to attempt to take the development task on ourselves to support single sign-on in applications where it is not currently available.
  5. Delegated administration of web groups
    In the CGL environment before implementation of CGLAUTH all group web authorization was handled by the manual administration of htpasswd files in the apache configuration tree. This added to the overall administrative load because these files often used separate passwords and had to be maintained by local administrative staff. Often their are designated users who act as "owners" for a web page are the authoritative maintainers anyway. This will provide those users with resources to maintain access to authenticated websites themselves.
  6. Integratable with future UCSF identity management system
    UCSF is in the process of designing and implementing an enterprise-wide identity management system that will include identity information as well as a global authentication system. If this proves to be successful, it will be important for CGL to be able to integrate in a meaningful way.
  7. Increased (or at least no decrease) in security
    Athentication and authorization are security technologies designed to prevent unauthorized access to systems and resources. Any changes to the implementation of security technologies, even for solid resource and user experience reasons must be balanced against the potential exposure such changes might bring. This system should serve to increase security.
  8. Very high reliability and availability
    If an identity management system is also providing authentication or authorization services, then an outage of that system results in an outage for all applications and services which require authentication or authorization. This implies that the impact of an outage is very high to the organization and must be minimized by building the system with built-in redundancy or in a highly available manner.

III. Architecture

This section discusses the overall architecture of the major components and how they interact. This is necessarily high level and the idea is to provide a context for the more detailed discussion of each component that is discussed below. The major components of the system are MIT Kerberos and OpenLDAP. These were chosen because they were both open source, widely deployed, and are under active development. At the core of the system is MIT's Kerberos secret key network authentication system. This system was designed to provide single sign-on in a potentially hostile academic environment and is widely supported on Mac, PC, and Linux desktops. The key idea behind Kerberos is the idea that a trusted third party can provide mutual authentication between clients and servers without passing passwords over the network. The way this works is that the trusted third party generates a special token (called a ticket) and encrypts the ticket with the password for the user or service (called a principal). If the user or application can decrypt it, then they have the proper password and have been correctly authenticated. The initial step in the process is for the client to obtain a Ticket Granting Ticket (TGT) which provides for the initial authentication. The TGT is an encrypted credential that can be used to request service tickets from the Kerberos server, which is acting as the trusted third party. The service tickets are encrypted in the service principal's password as well as the client's. The client can then decrypt the resulting ticket and present it to the service. If the service can decrypt it, then it can trust the client because only the client could have gotten the ticket. This is a simplification of the actual algorithm, which includes a number of features to defend against man-in-the-middle attacks, network snooping, etc. A good concise reference that describes the Kerberos protocol can be found in Designing an Authentication System: a Dialogue in Four Scenes by Bill Bryant or The Moron's Guide to Kerberos by Brian Tung.

From the above discussion, some of the components of Kerberos are clear. There must be a server that is available on the network to destribute the tickets, there must be a data store of information about principals and their associated keys, and there must be some secure means of synchronizing the keys stored by the server and stored by the service (or in the user's memory). Less obvious is that Kerberos requires all of the clocks on the client, server, and service to be synchronized. This requirement comes from one of the approaches Kerberos uses to defeat network interception attacks. Another obvious requirement is for tools to maintain the Kerberos repository, which might be the same as whatever is used to synchronize keys.

High availability is provided by both Kerberos and LDAP through a replication process. While the details of the process differ, both technologies provide means to replicate all or selected data to other nodes, which can provide the functionality in the event of a primary server outage. The replication technologies employed by both Kerberos and LDAP are not dependent on highly available servers. In the case of Kerberos, the client libraries support a list of Kerberos servers, and will failover to the next server in the list if the first one is unavailable. In the case of LDAP, the recommended approach is to use round-robin DNS to cycle between the multiple LDAP servers.

The overall system architecture is shown in Figure 1. As can be seen in the figure, the underlying core is the authentication functionality provided by Kerberos. Kerberos depends on a number of important technologies such as NTP, DNS, etc., but does not depend on any of the other components in CGLAUTH. Kerberos maintains its own database of principals and keys, and does not rely on either the system nor the LDAP repositories for information during normal operations. Note however, that during the initial configuration and "bootstrap" of the Kerberos repository, local account information was used to set up user principals.

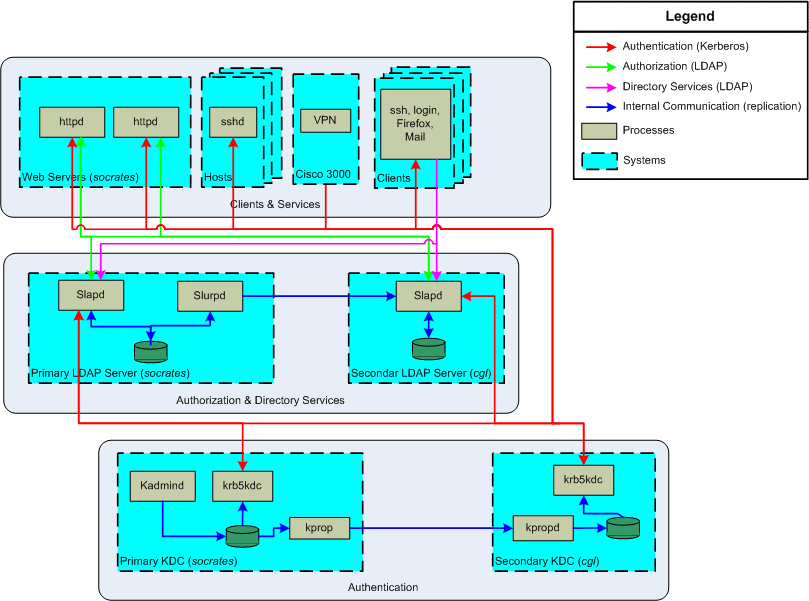

CGLAUTH Architecture Diagram

Figure 1. CGLAUTH High-Level Architecture

Kerberos provides the main authentication layer in the CGLAUTH system, but it is not the only authentication technology. For login services to socrates, our main server, CGLAUTH will attempt to authenticate the user using Kerberos first. If that does not succeed, CGLAUTH will fallback to the standard Tru64 UNIX SIA mechanism. This approach is also taken for access to secure web services provided on socrates, which also acts as our primary web server platform. The fallback approach should is a temporary, transitional mechanism, particularly for web services, however, there is no extreme urgency to deprecate it.

One additional authentication mechanism that should be mentioned are the passwords stored as part of our SAMBA implementation. At this point, due to the form of the one-way crypt utilized by Microsoft for their SMB implementation, SAMBA is not compatible with Kerberos or any other plug-in technology in the absence of a Windows 2000 domain controller. As a result a separate password repository must be used. A future version of SAMBA will support Kerberos by providing support for Windows 2000 domain services as part of SAMBA itself, removing the need for a separate domain controller.

The next layer up in the system is the authorization and directory services technologies provided by LDAP. Note that while LDAP provides both of these services, they are logically separate, and are, in fact, implemented in separate parts (trees) within LDAP. LDAP is fundamentally a hierarchical database, providing a protocol for access, searching, and updating the information within the repository. CGLAUTH utilizes LDAP primarily to support Web authorization groups. Other information is stored within LDAP for access by E-mail and address book clients. LDAP is maintained in two ways: automated scripts, and manual updates. These are discussed in more detail below.

IV. Components

This section presents the details of each of the major components in the CGLAUTH system. As shown in Figure 1, the lowest layer is the authentication component, with the authorization component layered on top of that. The directory services/identity component is used mostly for user convenience at CGL, and is not currently a critical component, but is presented here in case general directory services becomes more important to the resource operation over time.

A. Authentication

1. Kerberos

Kerberos forms the core of our authentication environment. We currently run Kerberos on two servers. The first is our main Tru64 cluster: socrates and we have implemented the Kerberos KDC and admin servers as cluster services using the Tru64 CAA capability. The master KDC service is called kdc and the admin server is called kadmin. These services are designed to failover to other nodes in the cluster with no loss in service. The failover is handled entirely by the Tru64 CAA mechanism. For the purposes of our kerberos implementation, we have provided an IP alias: kdc-1.cgl.ucsf.edu that points to socrates should we ever change hosts, or want to migrate these services off of the cluster.

The second host is cgl.ucsf.edu, our primary gateway, and it has an IP alias: kdc-2.cgl.ucsf.edu for the reaons stated above. This is our secondary server and is available to answer requests should our primary server fail for some reason. These servers are pointed to by the /etc/krb5.conf file, which is shown below.

[logging]
 default = FILE:/var/adm/krb5libs.log
 kdc = FILE:/var/adm/krb5kdc.log
 admin_server = FILE:/var/adm/kadmind.log

[libdefaults]
 ticket_lifetime = 24000
 default_realm = CGL.UCSF.EDU
 dns_lookup_realm = false
 dns_lookup_kdc = false
 noaddresses = true

[realms]
 CGL.UCSF.EDU = {
  kdc = kdc-1.cgl.ucsf.edu:88
  kdc = kdc-2.cgl.ucsf.edu:88
  admin_server = kdc-1.cgl.ucsf.edu:749
  default_domain = cgl.ucsf.edu
 }

[domain_realm]
 .cgl.ucsf.edu = CGL.UCSF.EDU
 cgl.ucsf.edu = CGL.UCSF.EDU
 .compbio.ucsf.edu = CGL.UCSF.EDU
 compbio.ucsf.edu = CGL.UCSF.EDU

/etc/krb5.conf

The /etc/krb5.conf file shown above is used for Unix and Linux sytems. MacOS X uses a file with the exact same format, but has a different name and location: /Library/Preferences/edu.mit.Kerberos. Windows 2000 and Windows XP systems use a different mechanism to support a "kerberized" workstation.

The key components for all of the platforms are the presence of the two entries for kdc's and the default_realm of CGL.UCSF.EDU. It is important to include both kdc entries since the Kerberos libraries use these to manage the software failover process. In practice the constraint that there can be only one admin server should not be problematic for two reasons. First, the admin server is only used for password or account changes, which is not as time critical as authentication requests. Second, in our environment, the admin server is running on a cluster of computers and is relatively immune to a hardware failure on any single computer. In the event of a major problem on the cluster, the secondary, or slave server, can be "upgraded" to a master server with full admin functionality very easily.

From a Tru64 cluster standpoint, Kerberos runs as a pair of CAA services, kdc and kadmin. The scripts for these services are maintained in the standard CAA path: /var/cluster/caa/script/. There are no resource depencies and while we attempt to keep the kdc and kadmin services on the same node, that is certainly not required, and there are no node depencies in the implementation so these services can be run on any node within the cluster.

The database for both the master and slave nodes is stored in the standard path: /usr/local/var/krb5kdc/. The database itself is in the file principal and the configuration file kdc.conf is shown below.

[kdcdefaults]
  kdc_ports = 88
  kdc_tcp_ports = 88

[realms]
  CGL.UCSF.EDU = {
    kadmind_port = 749
}

[logging]
  kdc = FILE:/var/adm/kdc.log
  admin_server = FILE:/var/adm/kadmind.log

/usr/local/var/krb5kdc/kdc.conf

Other key files in the /usr/local/var/krb5kdc/ directory are the access control list for the admin server (/usr/local/var/krb5kdc/kadm5.acl), the Kerberos keytab file for the admin services, and the script used to replicate the kerberos database, /usr/local/var/krb5kdc/propogate.

Replication for Kerberos is handled by a process that runs out of periodic, currently every ten minutes. Periodic just runs a small script, /usr/local/etc/periodic/scripts/kdc_prop that calls the propogate script. propogate starts by using a Kerberos utility program to create an encrypted dump of the database, then using a list of slave servers, it uses the kprop program to send the database to each of the slave servers. The slave servers must be running the kpropd service, and must be configured with the same master key as the master server. Once the new database is received on a slave, it replaces the database on the slave server.

One additional note about the ongoing operation of the Kerberos component. The Kerberos logs provide all of the information about authentication to all CGLAUTH components. As such they are both critical and grow very large. In order to rotate the logs, it is necessary to "convince" the processes to close and reopen their logs. This is handled by a weekly periodic script: 10.rotlog.system which actually stops and restarts the services using the CAA commands.

2. SIA plugin

Kerberos forms the key component of the authentication portion of CGLAUTH but not all applications are Kerberized. The main server computing platform at CGL is our Tru64 Cluster, socrates, and seemless authentication on this platform is critical to our ongoing operation. Tru64 provides a security plug-in technology similar in intent to the Linux and Solaris PAM. In Tru64, the technology is known as the Secutiry Integration Architecture, or SIA. As an overall part of CGLAUTH, we have implemented an SIA module which delegates authentication to Kerberos. Because all system authentication goes through SIA (due to conflicting encryption algorithms, SAMBA does not use SIA or PAM), this provides "instant" integration with Kerberos. The SIA plugin is configured through the file: /etc/sia/matrix.conf. The previous CGL configuration relied heavily on the Tru64 "Enhanced" Security, which can be made to be C2 compliant. The configuration file is shown below, showing how the Kerberos plugin (KRB5) is added before the C2 component (OSFC2) so that Kerberos authentication would be attempted first, followed by the "normal" Tru64 Enhanced Security.

#
# *****************************************************************
# *                                                               *
# *   Copyright 2002 Compaq Information Technologies Group, L.P.  *
# *                                                               *
# *   The software contained on this media  is  proprietary  to   *
# *   and  embodies  the  confidential  technology  of  Compaq    *
# *   Computer Corporation.  Possession, use,  duplication  or    *
# *   dissemination of the software and media is authorized only  *
# *   pursuant to a valid written license from Compaq Computer    *
# *   Corporation.                                                *
# *                                                               *
# *   RESTRICTED RIGHTS LEGEND   Use, duplication, or disclosure  *
# *   by the U.S. Government is subject to restrictions  as  set  *
# *   forth in Subparagraph (c)(1)(ii)  of  DFARS  252.227-7013,  *
# *   or  in  FAR 52.227-19, as applicable.                       *
# *                                                               *
# *****************************************************************
#
# HISTORY
#
# @(#)$RCSfile: CGLAUTH_Internal_Documentation.html,v $ $Revision: 1.1 $ (DEC) $Date: 2005/08/05 17:19:13 $
#

# sia matrix configuration file (BSD only)

siad_setpwent=(BSD,libc.so)
siad_endpwent=(BSD,libc.so)
siad_getpwent=(BSD,libc.so)
siad_getpwnam=(BSD,libc.so)
siad_getpwuid=(BSD,libc.so)
siad_chg_finger=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_chg_password=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_chg_shell=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_chk_user=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_setgrent=(BSD,libc.so)
siad_endgrent=(BSD,libc.so)
siad_getgrent=(BSD,libc.so)
siad_getgrnam=(BSD,libc.so)
siad_getgrgid=(BSD,libc.so)
siad_ses_init=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_chk_invoker=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_ses_authent=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_ses_suauthent=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_ses_reauthent=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_ses_estab=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_ses_launch=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_ses_release=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)
siad_init=(KRB5,/usr/shlib/libsiakrb5.so) (OSFC2,/usr/shlib/libsecurity.so)

/etc/sia/matrix.conf

3. mod_auth_kerb

In today's environment, the web has become a critical component of any IT system or infrastructure. An authentication environment must provide support for all of the various web activities which require user's to authenticate. Ideally, this support should provide a single-sign on capability, freeing users from having to reauthenticate to multiple web sites without constraining the rules for authorizing specific users access to specific web sites. The apache web software provides an extensive plug-in architecture that allows for a cascade of authentication and authorization modules to be traversed. For authentication (see the LDAP discussion for web authorization) Kerberos interaction is provided by mod_auth_kerb, an open-source module that supports Kerberos, GSS-API, as well as SPNEGO, the web single sign-on mechanism that was proposed by Microsoft and is supported by Internet Explorer, Firefox, and (more recently) Safari.

In addition to mod_auth_kerb CGL had already deployed a custom module that supports SIA for authentication. The SIA plug-in was used in a manner that combed authentication as well as authorization. Authorized users were placed in an htaccess file, and if a password was not included, the SIA plug-in would authenticate the user using the SIA api. If a password was included in the file, the user was authenticated against that password. If, on the other hand, a user's login id was not included in the file, they were not provided access. Enabling authentication and authorization is handled using the apache require valid-user primitive.

For the purposes of authenticating using Kerberos, authentication and authorization have been separated. Authentication is provided by Kerberos and authorization by LDAP. This implies that rather than using the presence or absence of a user's name in a file, authorization is handled by the require group primitive.

There are a number of configuration options to mod_auth_kerb that are set using the standard apache configuration approach. To simplify the use of both Kerberos and LDAP, a separate configuration directory has been created to all inclusion of the "standard" set of configuration options. The standard configuration file for Kerberos is shown below, and has been annotated to describe the function for each configuration option.

# Kerberos authentication
AuthType Kerberos		# Enables Kerberos authentication
AuthName "Kerberos Login"	# User prompt
KrbAuthRealms CGL.UCSF.EDU	# Kerberos Realm
KrbSaveCredentials on		# Save credentials for child processes
KrbDelegateBasic off		# Whether or not to delegate basic auth to another process
KrbAuthoritative off		# Whether or not we are the only mechanism
KrbMethodNegotiate on		# Whether or not to use SPNEGO and/or GSSAPI
Krb5Keytab /etc/web.keytab	# The location of the keytab file
KrbStripRealm on		# LOCAL: strip the realm of the principal name
KrbTransition on		# LOCAL: set up transition between SIA and Kerberos
NoNegotiate Safari		# LOCAL: disable negotiation for certain broken browsers

conf.d/Auth/krbAuth.conf

This file is included for each site or directory for which authentication is required. To make things simple, all of the authorization and authentication stanzas are combined into files appropriate to their function. To implement the "normal" authentication and authorization functions, a file conf.d/Auth/standardAuth.conf brings together all of the files and configuration stanzas into a single file, shown below.

# Standard way of doing authentication/authorization

# Enable Kerbeos
Include conf.d/Auth/krbauth.conf
# Enable SIA
Include conf.d/Auth/sia.conf
# Enable SIA failover to Kerberos
SIAAlternativeAuthType "Kerberos"

# Enable LDAP
Include conf.d/Auth/ldapauthz.conf

# We want to make LDAP authoritative for groups
AuthzLDAPAuthoritative On

conf.d/Auth/standardAuth.conf

A sample configuration stanza for an authenticated group of web pages is shown below. This configuration shows the use of standardAuth.conf to enable authentication and authorization. In this case, the web site allows any authenticated user.

    <Location "/admin/chpass.py">
        Include conf.d/Auth/standardAuth.conf
        require valid-user
    </Location>

Sample Authenticated Web Directory

The single sign-on capability of mod_auth_kerb is based on the use of an extention to the HTTP authentication protocol: WWW-Negotiate. This extension allows a browser to include information in the authentication header passed to the web server. If the underlying protocol is the Kerberos 5 version of the GSSAPI (Generic Security Services API) the information provided in the authentication header provides a service ticket that provides authentication credentials for a specific user. If the web server is able to decrypt that service ticket, then the user's authenticity is proven. In order for the server to be able to decrypt the service ticket provided by the browser it must have access to its private key. This key can be provided by either specifying it when the kerberos web service principal (HTTP/fqdn@CGL.UCSF.EDU) is created, and then providing it in a file or at startup, or by saving the key in a file. The latter mechanism allows us to create the service principals with a random key, which is much more difficult to guess. The file containing an encrypted version of the private key is called a keytab file (see the Krb5Keytab configuration parameter in the mod_auth_kerb configuration above).

There are three different approaches to determining exactly which fqdn to include in the ticket request. The browser could request a ticket for the fully resolved fqdn. For example, consider a web server that responds to URLs beginning with wwwtest.cgl.ucsf.edu. The address wwwtest.cgl.ucsf.edu is an alias for www.cgl.ucsf.edu, which resolves to IP addresses 169.230.22.3 and 169.230.22.49. The host that serves this web server is socrates.cgl.ucsf.edu, which also has IP addresses 169.230.22.3 and 169.230.22.49. Given this situation, the browser could send tickets for three possible principals:

  • HTTP/wwwtest.cgl.ucsf.edu@CGL.UCSF.EDU
  • HTTP/www.cgl.ucsf.edu@CGL.UCSF.EDU
  • HTTP/socrates.cgl.ucsf.edu@CGL.UCSF.EDU

The first principal is formed by taking the reported name of the web site. The second principal is formed by determining the canonical name of the web site by resolving any alias names. The third is formed by determining the canonical name of the web site by resolving any names to the underlying IP address and then by doing a reverse DNS lookup to determine the canonical name.

In practice, only two of these are ever used. Browsers running on Microsoft based operating systems will request and send a ticket for the second ticket. Browsers running on Unix (including Linux) or Macintosh operating systems will send the third. In order to provide single sign-on for Windows XP as well as Unix and Macintosh the web server much have keys for both principals within the keytab file. The original version of the mod_auth_kerb module only supported the third form of the web principal. As a result, Macintosh and Linux users were able to achieve web single sign-on, but Windows users were not. The current version has been modified to try both versions before failing.

One of the side benefits of utilizing Kerberos for authentication is that mod_auth_kerb includes the ability to save the user's credentials on the web server. In this manner, services that are themselves Kerberized are able to act on behalf of the user without requiring additional authentication steps or sophisticated priviledged applications. This can be used to greatly simplify the development of web-based applications and infrastructures.

4. SSH

Another important application that is in broad use within the CGL environment is SSH. SSH is used to provide access to all of our systems for both staff and users. Historically, staff has utilized SSH agents and pairs of public/private keys to allow single sign-on to systems. New versions of SSH include the capability to utilize GSSAPI to authenticate users. As in the discussion above reguarding web authentication, the SSH client must utilize the user's initial ticket (Ticket Granting Ticket, or TGT) in order to obtain a ticket for the service. In the case of utilizing either SSH or telnet to access a host, the service ticket must be for the principal: host/fqdn@CGL.UCSF.EDU. As before, the key for this principal must be stored on the server, traditionally in /etc/krb5.keytab. In order for GSSAPI authentication to be enabled the client and server must both support it, and it must be enabled in their respective configuration files, traditionally sshd_config and ssh_config. Sample configuration files are shown below.

# This is the sshd server system-wide configuration file.  See sshd(8)
# for more information.

Port 22
Protocol 2,1
PidFile /var/run/sshd.pid
HostKey /etc/openssh/ssh_host_key
HostKey /etc/openssh/ssh_host_dsa_key
ServerKeyBits 1024
LoginGraceTime 600
KeyRegenerationInterval 3600
PermitRootLogin yes
# Don't read ~/.rhosts and ~/.shosts files
IgnoreRhosts no
StrictModes yes
X11Forwarding yes
X11DisplayOffset 10
PrintMotd yes
KeepAlive yes

# Logging
SyslogFacility AUTH
LogLevel INFO

# For this to work you will also need host keys in /usr/local/etc/ssh_known_hosts
RhostsRSAAuthentication yes
RSAAuthentication yes

# To disable tunneled clear text passwords, change to no here!
PasswordAuthentication yes
PermitEmptyPasswords no

# Uncomment to disable s/key passwords
ChallengeResponseAuthentication no

# To change Kerberos options
KerberosAuthentication yes
KerberosOrLocalPasswd yes
KerberosTicketCleanup yes

# Enable single sign-on through GSSAPI
GSSAPIAuthentication yes
GSSAPICleanupCredentials yes

Subsystem       sftp    /usr/local/libexec/sftp-server
UsePrivilegeSeparation no

Sample SSH Server Configuration File

# This is ssh client systemwide configuration file.  See ssh(1) for more
# information.  This file provides defaults for users, and the values can
# be changed in per-user configuration files or on the command line.

# Site-wide defaults for various options

Host *
    ForwardX11 yes
    UsePrivilegedPort yes
    RhostsAuthentication yes
    RhostsRSAAuthentication yes
    RSAAuthentication yes
    PasswordAuthentication yes
    Protocol 2,1
    StrictHostKeyChecking no
    GSSAPIDelegateCredentials yes
    GSSAPIAuthentication yes

Sample SSH Client Configuration File

5. Password Change Web Page

All of the previous discussion has focused on the underlying architecture utilized to support authentication to CGL services. Of course, this all hinges on the users' ability to provide their username and Kerberos password in order to obtain their initial ticket. One of the first steps is for the user to set their Kerberos password. This represents a transitional challenge, since initially all users have SIA passwords, but not Kerberos passwords, yet the web page that changes passwords must necessarily be authenticated. The password change page ( https://www.cgl.ucsf.edu/admin/chpass.py) is configured to accept either Kerberos or SIA authentication. The user may then provide a new password, which is utilized to set both their Kerberos as well as their SAMBA password. If a SAMBA account does not exist for the user, it is created as part of this process. Of course, particularly in a single sign-on environment, the user is required to provide their current password again to avoid the circumstance where a user leaves their workstation and another person attempts to hijack their account by changing their password.

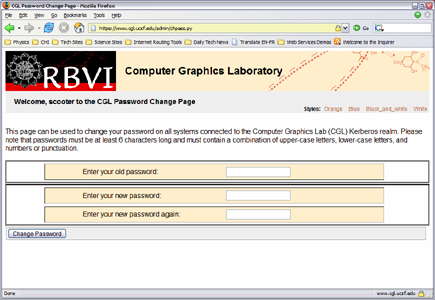

CGL Password Change Page

Figure 2. CGL Password Change Page

6. Client support

The major clients have already been discussed, but enabling single sign-on for the web browsers: Internet Explorer, Firefox, and Safari have not been presented here. The detailed instructions are included in the user's configuration instructions, which is available on line.

One other main category of application that has not been discussed are E-mail clients. While the IMAP server utilized by CGL supports single sign-on using GSSAPI, none of the available E-mail clients support it. This is something that we hope is rectified as new versions of the clients become available.

7. Periodic scripts

There are relatively few scripts that run for the specific support of the Kerberos authentication environment. The Kerberos logs ( /var/adm/krb5kdc.log and /var/adm/kadmind.log) are rotated as part of the normal log rotation procedures. The script to replicate the database between the master and slave Kerberos servers has already been discussed. The last of the scripts that run on an ongoing basis is the script that harvests information about user's successful and unsuccessful authentication attempts. This script reads the /var/adm/krb5kdc.log log and looks for entries of the form PREAUTH_FAILED and ISSUE. A PREAUTH_FAILED entry indicates that a user (or service) did not have the key necessary to decrypt an initial "preauthentication" challenge. This is an unsuccessful authentication attampt. The ISSUE entry indicates that the user or service did have the correct key and that authentication was successful. The script is run nightly and updates two databases that are keyed by the user's name: /usr/local/etc/kerbauth.db which includes the user's last successful authentication and /usr/local/etc/kerbnoauth.db, which has the user's last unsuccessful authentication.

8. Administration procedures

The following procedures are provided as quick-reference guides only. It is assumed that operational administrators of the Kerberos environment are familiar with the management and operation of Kerberos enough to be able to perform any of thse operations with little assistance. Each of these procedures (except the last two) require Kerberos administrative priviledges.

  • Resetting a forgotten password
  • Adding a new user principal
    • kadmin -q 'addprinc -password ChanGeMe -policy default username' or
    • kadmin -q 'addprinc -password ChanGeMe -policy sacs username' for a SACS user
      • Again, the user should be directed to immediately go to https://www.cgl.ucsf.edu/admin/chpass.py to change their password to a personal password.
  • Adding a new host or service principal
    • kadmin -q 'addprinc -randkey -policy hosts host/fqdn' or
    • kadmin -q 'addprinc -randkey -policy hosts HTTP/fqdn' for a web principal
  • Adding a new agent principal
    • kadmin -q 'addprinc -randkey -policy agent name'
  • Deleting a principal
    • kadmin -q 'delprinc principal'
  • Locking an account
    • kadmin -q 'modprinc -pwexpire yesterday principal'
  • Unlocking a locked account
    • kadmin -q 'modprinc -pwexpire never principal'
  • Determining when a user last changed their password
    • kadmin -q 'getprinc principal'
      This will list all of the information about that principal. One of the pieces of information is the date and time the principal password was set. If it was set by the user, it will state that it was changed by webadmin
  • Determining the last time a user authenticated
    • krbauth principal
  • Determining the last time a failed attempt was made on a user's account
    • krbauth -f principal

B. Authorization

1. OpenLDAP

As Kerberos forms the basis of our approach to authentication, LDAP forms the basis of our approach to authorization. The LDAP technology we use is the OpenLDAP server, which can be found at http://www.openldap.org. This open source package is extremely robust and forms the core of many commercial products and is explicitly supported by several vendors. This broad level of support and ongoing development by a significant community results in a variety of documented uses on the Internet, including serveral "HOWTO's". For our implementation, we have deployed the OpenLDAP servers on two hosts, similar to our deployment approach to Kerberos. Like Kerberos, our master server runs on socrates.cgl.ucsf.edu in a clustered environment under CAA control. The division of functionality is somewhat different in an LDAP environment than in a Kerberos environment. OpenLDAP provides two different servers, slapd, which answers all LDAP queries, including updates and new entries, and slurpd, which replicates data between the master server and the slave. All functions are controlled by the main configuration file, slapd.conf, which is shown below.

#
# See slapd.conf(5) for details on configuration options.
# This file should NOT be world readable.
#
loglevel	256
#
# Load all schemas
#
include		/usr/local/etc/openldap/schema/core.schema
include		/usr/local/etc/openldap/schema/misc.schema
include		/usr/local/etc/openldap/schema/cosine.schema
include		/usr/local/etc/openldap/schema/inetorgperson.schema
include		/usr/local/etc/openldap/schema/nis.schema
include		/usr/local/etc/openldap/schema/kerberosobject.schema
include		/usr/local/etc/openldap/schema/eduPerson.schema
include		/usr/local/etc/openldap/schema/ucsfPerson.schema
include		/usr/local/etc/openldap/schema/cglaccount.schema
include		/usr/local/etc/openldap/schema/mozilla.schema

# Define global ACLs to disable default read access.

# Global directives
allow bind_v2
sizelimit 10000

pidfile		/var/run/slapd.pid
argsfile	/var/run/slapd.args

# Load dynamic backend modules:
modulepath	/usr/local/libexec/openldap
moduleload	pw-kerberos.so

# Sample security restrictions
#	Require integrity protection (prevent hijacking)
#	Require 112-bit (3DES or better) encryption for updates
#	Require 63-bit encryption for simple bind
# security ssf=1 update_ssf=56 simple_bind=56

defaultsearchbase dc=cgl,dc=ucsf,dc=edu

# SASL directives
# srvtab	/etc/krb5.keytab
sasl-realm CGL.UCSF.EDU
sasl-host socrates.cgl.ucsf.edu

# TLS directives
TLSCertificateFile /usr/local/etc/openldap/slapd.crt/server.crt
TLSCertificateKeyFile /usr/local/etc/openldap/slapd.key/server.key

#
# Provide ability for owners to edit their own group
#
access to dn.subtree="ou=Web Groups,ou=Groups,dc=cgl,dc=ucsf,dc=edu" attr=memberUid,owner,description,entry
       by dnattr=owner write
       by group="cn=LDAPAdmin,dc=cgl,dc=ucsf,dc=edu" write
       by * read

# Access control for private fields in People
# Should be readable by staff, writable by LDAPAdmin or the user
access to dn.subtree="ou=UCSF,ou=People,dc=cgl,dc=ucsf,dc=edu"
	filter=(cglPrivate=TRUE)
	attr=homePhone,homeTelephoneNumber,mobile,mozillaHomeCountryName,mozillaHomeLocalityName,mozillaHomePostalCode,mozillaHomeState,mozillaHomeStreet,mozillaHomeStreet2,mozillaHomeUrl,mozillaNickname
	by dnattr=seeAlso write
	by group="cn=LDAPAdmin,dc=cgl,dc=ucsf,dc=edu" write
	by group="cn=staff,ou=UNIX Groups,ou=Groups,dc=cgl,dc=ucsf,dc=edu" read
	by users none
	by anonymous none

# Access control for private fields in People that are set as non-Private
access to dn.subtree="ou=UCSF,ou=People,dc=cgl,dc=ucsf,dc=edu"
	filter=(cglPrivate=FALSE)
	attr=homePhone,homeTelephoneNumber,mobile,mozillaHomeCountryName,mozillaHomeLocalityName,mozillaHomePostalCode,mozillaHomeState,mozillaHomeStreet,mozillaHomeStreet2,mozillaHomeUrl,mozillaNickname
	by dnattr=seeAlso write
	by group="cn=LDAPAdmin,dc=cgl,dc=ucsf,dc=edu" write
	by * read

# Sample access control policy:
#	Root DSE: allow anyone to read it
#	Subschema (sub)entry DSE: allow anyone to read it
#	Other DSEs:
#		Allow self write access
#		Allow authenticated users read access
#		Allow anonymous users to authenticate
#	Directives needed to implement policy:
access to dn.base="" by * read
access to dn.base="cn=Subschema" by * read
access to *
	by self write
	by group="cn=LDAPAdmin,dc=cgl,dc=ucsf,dc=edu" write
	by users read
	by anonymous read

sasl-regexp
  uid=(.*),cn=cgl.ucsf.edu,cn=gssapi,cn=auth
  uid=$1,ou=Accounts,dc=cgl,dc=ucsf,dc=edu
#
# if no access controls are present, the default policy
# allows anyone and everyone to read anything but restricts
# updates to rootdn.  (e.g., "access to * by * read")
#
# rootdn can always read and write EVERYTHING!

#######################################################################
# ldbm database definitions
#######################################################################

database	bdb
suffix		"dc=cgl,dc=ucsf,dc=edu"
rootdn		"cn=Manager,dc=cgl,dc=ucsf,dc=edu"
# Cleartext passwords, especially for the rootdn, should
# be avoid.  See slappasswd(8) and slapd.conf(5) for details.
# Use of strong authentication encouraged.
rootpw		************************
# The database directory MUST exist prior to running slapd AND
# should only be accessible by the slapd and slap tools.
# Mode 700 recommended.
directory	/usr/local/var/openldap-data
mode		700
# Indices to maintain
index	uid 		pres,eq,approx,sub
index	cn,sn,mail	pres,eq,approx,sub
index	eduPersonPrincipalName pres,eq,approx,sub
index	mailRoutingAddress pres,eq,approx
index	krbName		pres,eq,approx
index	givenName	pres,eq,sub
index	ucsfIDNumber	pres,eq
index	objectClass	eq
index	memberUID	eq
index	gidNumber	eq
#
# Tuning
#
cachesize 5000
# Checkpoint every 10K or 60 minutes
checkpoint 10000 60
idlcachesize 5000
# Don't use memory mapped files
shm_key 119

#######################################################################
# Set up database replication
#######################################################################
replica uri=ldap://cgl.ucsf.edu:389
	bindmethod=sasl saslmech=GSSAPI

replogfile /usr/local/var/openldap-data/replog

CGL LDAP Configuration File (/usr/local/etc/openldap/slapd.conf)

The LDAP schema employed by CGL is designed to provide for Web Authorization requirements as well possible future uses for system level authorization, user identity information, and possibly system and printer information. Some of the more general directory services and identity management functions are discussed in more detail below. This section will focus on web authorization, which was our primary requirement for LDAP.

An LDAP repository is essentially a hierarchically organized data store whose contents are restricted by a set of object classes. Each object class defines a set of required and optional attributes, which themselves are defined to adhere to a specific data format or content. The hierarchical organization is not enforced by any specific data elements, rather, the Distinguished Name (DN) of a record in the database is hierarchically defined. For example, the DN for the web group sacs is: cn=sacs,ou=Web Groups,ou=Groups,dc=cgl,dc=ucsf,dc=edu. All elements contained within the CGL LDAP repository end with dc=cgl,dc=ucsf,dc=edu, which is the BASE of the server. The ou (Organizational Unit) elements after that define the actual hierarchy. The data in the Web Groups organizational unit is keyed by the cn (Common Name), which in this case is sacs.

CGL LDAP Schema

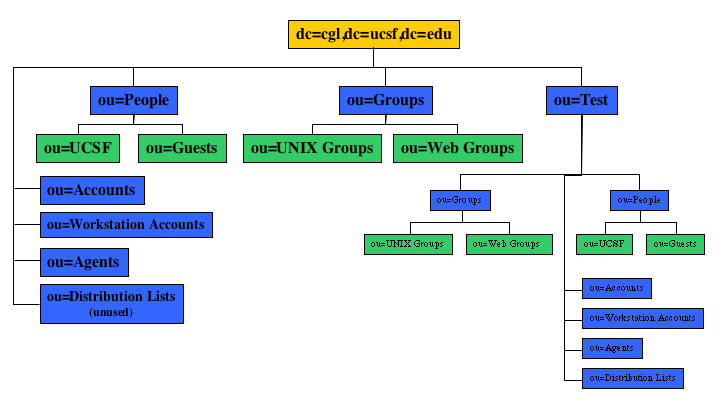

Figure 3 - CGL LDAP Schema

The organization of the CGL LDAP repository is shown in Figure 3. For the purposes of web authorization, we are only concerned with the Web Groups and the Accounts organizational units. These are the two branches of the LDAP repository that are referenced by the apache web server to determine if an authenticated user is a member of an authorized web group. An example Accounts data entry is shown below. The primary source for this data is the /etc/passwd file on socrates, but it has been enhanced with a number of additional data items, including the ucsfIDNumber, which provides a link into the People branch of the repository.

# scooter, Accounts, cgl.ucsf.edu
dn: uid=scooter,ou=Accounts,dc=cgl,dc=ucsf,dc=edu
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: inetOrgPerson
objectClass: inetLocalMailRecipient
objectClass: posixAccount
objectClass: cglAccount
objectClass: kerberosSecurityObject

# posixAccount attributes
uid: scooter
uidNumber: 170
gidNumber: 10
homeDirectory: /home/socr/a/scooter
gecos: Scooter Morris
loginShell: /usr/local/bin/bash

# person attributes
cn: Scooter Morris
cn: John "Scooter" Morris
givenName: Scooter
sn: Morris

# inetOrgPerson attributes
mail: scooter@cgl.ucsf.edu

# inetLocalMailRecipient attributes
mailRoutingAddress: scooter@cgl.ucsf.edu
mailHost: socrates.cgl.ucsf.edu

# kerberosSecurityObject attributes
krbName: scooter@CGL.UCSF.EDU

# cglAccount attributes
apple-authAuthority: ;Kerberosv5;;scooter@CGL.UCSF.EDU;CGL.UCSF.EDU;
isLocked: FALSE
irixHomeDirectory: /home/spin/scooter
ucsfIDNumber: 023387608

Example Accounts Data Entry

Each of the objectClass attributes enables certain data attributes within the entry, which have been designated with comments in the example. As much as possible the Accounts objectClass attributes reflect standard and excepted usage for Unix systems. Two additional object classes have been added to support specific applications at CGL. The first is the kerberosSecurityObject, which provides the definition for the krbName attribute to provide a link to the Kerberos principal that goes along with this account. The second object class is the cglAccount object class, which provides the definitions for some attributes which we use specifically within the CGL environment. The first of these is apple-authAuthority, which is defined by Apple Computer and is used to provide information to MacOS X computers that indicates how this user should be authenticated. The second is isLocked which is used to signal that this account has been disabled for administrative purposes. The third is irixHomeDirectory which is used to indicate where this user's home directory should reside on our Irix workstations. The final addition is the ucsfIDNumber which provides a link into the People branch, as well as providing a key which can be used to link into the UCSF LDAP repository.

# sacs, Web Groups, Groups, cgl.ucsf.edu
dn: cn=sacs,ou=Web Groups,ou=Groups,dc=cgl,dc=ucsf,dc=edu
objectClass: top
objectClass: posixGroup
gidNumber: 101
cn: sacs
owner: uid=johns,ou=Accounts,dc=cgl,dc=ucsf,dc=edu
owner: uid=scooter,ou=Accounts,dc=cgl,dc=ucsf,dc=edu
memberUid: tef
memberUid: conrad
memberUid: burling
memberUid: gerlt
memberUid: babbitt
memberUid: ortiz
memberUid: pett
memberUid: bic
memberUid: barondes
memberUid: brc
memberUid: ccwang
memberUid: craik
memberUid: zemin
memberUid: jengel
memberUid: faynboym
memberUid: inada
memberUid: goddard
memberUid: yoshi
memberUid: salter
memberUid: scanlan
memberUid: yizhang
memberUid: pcaldera
memberUid: valerie
      ...
description: SACS Web Group

Example Web Groups Data Entry

The Web Groups branch is simple in comparison to the Accounts or People branches. The posixGroup object class provides the definition for all of the attributes. The key attributes are the owner attributes, and memberUid attributes, and the description attribute. The entry is keyed by the cn attribute, as discussed above. The owner attributes and the description attribute are used by the LDAP group maintenance web page discussed below. The memberUid attributes are used to determine group membership. The LDAP server utilizes the SASL plug-in security architecture to authenticate users. One of the mechanisms supported by SASL is the KRB5-GSSAPI mechanism. This allows LDAP to utilize Kerberos to authenticate, and enables single sign-on for LDAP modifications and priviledges.

2. mod_authz_ldap

As with authentication, web authorization is mediated in the apache server through an apache module, mod_authz_ldap. Authorization is enabled when a require group clause is included in the configuration for a specific group of web pages. The LDAP portion of the conf.d/Auth/standardAuth.conf file is shown below.

# LDAP Authorization
AuthzLDAPAuthoritative off			# Other authorization mechanisms are allowed
AuthzLDAPServer     "socrates.cgl.ucsf.edu"	# The LDAP server
AuthzLDAPMethod ldap				# The method to use
AuthzLDAPSetAuthorization user			# How are we authorizing
AuthzLDAPMapUserToAttr uid			# What the user named is mapped to
AuthzLDAPGroupBase  "ou=Groups,dc=cgl,dc=ucsf,dc=edu" # The DN to get the group name
AuthzLDAPGroupScope subtree			# How to search for a group
AuthzLDAPGroupKey "cn"				# The group name
AuthzLDAPMemberKey "memberUID"			# How to find a member name

conf.d/Auth/ldapauthz.conf

To see how this might be used, an example set of web pages that require group membership is shown below.

<Location "/admin/nih-ar-admin.py">
     Include conf.d/Auth/standardAuth.conf
     require group nih-ar-admin
</Location>

Example Web Page Requiring Authorization

3. LDAP Group Maintenance Web Page

To facilitate management of Web authorization a web application was developed that allows users to easily add and delete users from Web Groups that they are designated as one of the owners. A special group, LDAPAdmin contains all of the CGL LDAP administrators, who are allowed to edit any group, including adding and deleting owners as well as creating new groups. This combination of capabilities allows CGL admininistrators to delegate maintenance of web authorization to the owners of the web site, which greatly reduces overhead. All access to LDAP through the web depends on delegated Kerberos credentials, so tickets must be proxiable on Linux and MacOS X and forwardable on Windows.

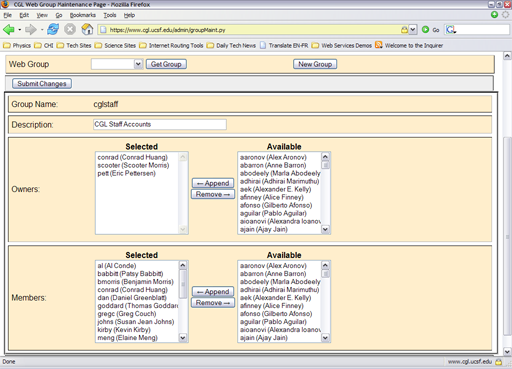

CGL LDAP Group Maintenance Page

Figure 4 - CGL LDAP Group Maintenance Page

4. Periodic scripts

There are two periodic scripts that run that are related to LDAP. The first of these is the LDAP update script. This script is run from periodic every night. As can be seen from the script code below, the script gets credentials, then runs a python program that reads the unix group file, the unix password file, and pulls information from the UCSF LDAP repository. This information is used to create updated Account, People, and unixGroup files, which are then imported into the LDAP repository. The results of all of the imports are stored in /var/adm/ldapUpdate.log.

#! /bin/ksh -p
# This script updates the cgl LDAP repository from the
# passwd, group, and UCSF LDAP store

# Get our identity
/usr/local/bin/kinit -k -t /usr/local/etc/.rootkeys -p ldapbot

# scribble in tmp
cd /tmp

# First, run the ldap script, this will output the files
# account.ldif, people.ldif, unixGroup.ldif, and wAccount.ldif
# At this point, we only use the first three

/usr/local/etc/ldap_getPeople.py -t ldap

# Now update the data
rm -f /var/adm/ldapUpdate.log
/usr/local/bin/ldapmodify -c -f account.ldif > /var/adm/ldapUpdate.log
/usr/local/bin/ldapmodify -c -f people.ldif >> /var/adm/ldapUpdate.log
/usr/local/bin/ldapmodify -c -f unixGroup.ldif >> /var/adm/ldapUpdate.log

/usr/local/etc/periodic/daily/05.ldapUpdate.local

The second important script is run directly from periodic to control the exact timing of its execution. This script stops both the slapd daemon (LDAP server) and the slurpd daemon (replication server) so that the log files can be reset, and the unused Berkeley DB database log files can be purged. This is important as these files have a tendency to build up over time, use a great deal of disk space.

#!/bin/sh

PATH=/usr/bin:/usr/sbin
export PATH

host=`caa_stat slapd | grep STATE=ONLINE | awk '{ print $NF }'`
caa_stop -f slapd
# Not sure why this sometimes needs to be run twice
rsh $host "/usr/local/BerkeleyDB.4.2/bin/db_recover -h /usr/local/var/openldap-data/"
rsh $host "/usr/local/BerkeleyDB.4.2/bin/db_recover -h /usr/local/var/openldap-data/"
rsh $host "/usr/local/BerkeleyDB.4.2/bin/db_archive -d -h /usr/local/var/openldap-data/"
caa_start slapd -c $host
caa_start slurpd -c $host

/usr/local/etc/periodic/scripts/ldap_clean

5. Administrators' instructions

Maintenance of the ldap server is relatively straightforward. The CAA commands caa_start and caa_stop can usually be relied on to stop and start the server. In rare circumstances, the database may need to be recovered to get the server to restart cleanly. As can be seen in the ldap_clean script above, this is usually done automatically, but occaisionally, the db_recover command may need to be run manually. In this circumstance, it may fail once or twice before it succeeds. It should always be run on the node you intend to start the slapd daemon on. This is because the Berkeley DB package uses shared memory to communicate and actually encodes the node name as part of the memory partition. The db_recover resets this value and allows things to continue.

  • Running db_recover:
    • /usr/local/BerkeleyDB.4.2/bin/db_recover -h /usr/local/var/openldap-data

In addition to the database maintenance, there are a couple of tools that are very useful for managing and maintaining LDAP. The first of these is ldapsearch which can be used, not surprisingly, to search the LDAP repository. Any user can run ldapsearch, but they must have authenticated with Kerberos, or they will receive an error. LDAP administrators should all be in the LDAPAdmin group within LDAP. Members of this group have permission to modify any entry in LDAP. The second tools is ldapmodify which can be used to modify (or add) ldap entries. Some examples of using these tools are shown below:

  • Searching for web group members:
    • /usr/local/bin/ldapsearch -b 'ou=Web Groups,ou=Groups,dc=cgl,dc=ucsf,dc=edu' '(cn=sacs)'
      The -b flag provides a restriction for the search. This is optional -- without it the entire repository will be searched and both the Web Group 'sacs' and the Unix Group 'sacs' will be returned. Note that wildcarding can also be used in the search pattern.
  • Searching using wildcards:
    • /usr/local/bin/ldapsearch '(cn=sacs*)'
      This command will return the 'sacs' Web Group as above, but will also return the Unix Groups 'sacs', 'sacstaff', and 'sacsdev'. This can also be used to search for people
  • Searching for people using wildcards:
    • /usr/local/bin/ldapsearch '(cn=*morris)'
      This command will return 'People' and 'Account' entries for 'Scooter Morris', 'Benjamin Morris', and 'Steve Morris'. Searches for can also be made for account names:
  • Searching for account names:
    • /usr/local/bin/ldapsearch '(uid=scooter)'
      This command will the account entry for 'Scooter Morris'.
  • Modifying LDAP entries:
    • /usr/local/bin/ldapsearch '(attribute=search string)' > ldif file
      This command will store the output of a search in a file. By default, the format of the output is ldif, which can be used by ldapmodify to reinsert records. After running the above command, edit the ldif file and remove any '#' comment lines, the 'search:' and 'result:' lines, and make any changes you want to make, then:
    • /usr/local/bin/ldapmodify -f ldif file
      This will actually modify the entry in the repository. Note that you only need to include the fields you are actually changing in ldif file. If this is an entirely new record, the -a flag must be added to ldapmodify to add the record insted of modifying it.

C. Directory Services/Identity

1. OpenLDAP

OpenLDAP has been described in some detail above as the basis for Web authorization. The same OpenLDAP repository contains information about UNIX Accounts, UNIX Groups, and entries providing information about people such as their department, phone number, office address, etc. Taken together, the information about who people are and what they can do is considered "Identity Management". We've already described how web authorization is handled. Identity information comes from a variety of different source. An example, annotated entry is provided below.

# 023387608, UCSF, People, cgl.ucsf.edu
dn: ucsfIDNumber=023387608,ou=UCSF,ou=People,dc=cgl,dc=ucsf,dc=edu
############################################################
# Provided as part of schema setup
############################################################
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: inetOrgPerson
objectClass: eduPerson
objectClass: ucsfPerson
objectClass: mozillaAddressBookEntry
############################################################
# These entries are pulled from the UCSF LDAP
# repository by searching for entries with
# matching 'mail' and matching 'cn'.
############################################################
uid: jhmorris
cn: Scooter Morris
ou: Pharmaceutical Chemistry (552501)
sn: Morris
givenName: John
ucsfIDNumber: 023387608
eduPersonNickname: Scooter
eduPersonPrincipalName: John.H.Morris@ucsf.edu
eduPersonAffiliation: staff
eduPersonPrimaryAffiliation: staff
eduPersonOrgUnitDN: ucsfDepartmentCode=552501,ou=departments,dc=ucsf,dc=edu
eduPersonPrimaryOrgUnitDN: ucsfDepartmentCode=552501,ou=departments,dc=ucsf,dc=edu
title: Programmer/Analyst V
mail: scooter@cgl.ucsf.edu
telephoneNumber: (415) 514-4406
ucsfCampusBox: 2240
ucsfBuildingCode: 3002
ucsfBuildingAddress: 600 16th street, San francisco, CA, 94143
############################################################
# These entries are derived from the UCSF entries and
# are provided to be consistent with applications that
# are not likely to deal with 'ucsfBuildingAddress' in
# a meaningful way
############################################################
displayName: Scooter Morris
postalAddress: 600 16th St.
street:: NjAwIDE2dGggU3RyZWV0IA==
postOfficeBox:: NjAwIDE2dGggU3RyZWV0IA==
o: University of California
st: California
l: San Francisco
postalCode: 94143
############################################################
# The next two entries are CGL-specific.  The
# first is a linking entry the provides information
# about the account (or accounts) this user is
# responsible for.  The second entry has to
# do with the visibility of private information
############################################################
seeAlso: uid=scooter,ou=Accounts,dc=cgl,dc=ucsf,dc=edu
cglPrivate: FALSE
############################################################
# User-entered values, only visible if
# cglPrivate is FALSE, or if this record
# belongs to the requesting user
############################################################
facsimileTelephoneNumber: (415) 502-1755
roomNumber: N476A
nsAIMid: scootermorris3
mozillaHomeStreet: xxxx SomeStreet St.
mozillaHomeLocalityName: Pacifica
mozillaHomePostalCode: 94044
mozillaHomeCountryName: US
homePhone: (650) 555-0000
mobile: (650) 555-0000
mozillaHomeState: CA

Example person entry in LDAP

Most of this information results from a nightly script that executes the program /usr/local/etc/ldap_getPeople.py. This program reads information from /etc/passwd, /etc/group, and the UCSF LDAP repository to output three files:

  • account.ldif: which contains entries for all accounts on socrates.
  • unixGroup.ldif: which contains entries for UNIX groups on socrates.
  • people.ldif: which contains entries for all people who have accounts on socrates.
These files are then inserted into the LDAP repository using ldapmodify as described above. The /usr/local/etc/ldap_getPeople.py program also provides seeAlso links in the ou=People entries as well as ucsfIDNumber entries in the ou=Account entries that serve to link the two entries together.

2. Nightly Update Scripts

The nightly update script mentioned above is shown below. This script is run out of periodic as part of the daily script execution.

#! /bin/ksh -p
# This script updates the cgl LDAP repository from the
# passwd, group, and UCSF LDAP store

# Get our identity
/usr/local/bin/kinit -k -t /usr/local/etc/.rootkeys -p ldapbot

# scribble in tmp
cd /tmp

# First, run the ldap script, this will output the files
# account.ldif, people.ldif, unixGroup.ldif, and wAccount.ldif
# At this point, we only use the first three

/usr/local/etc/ldap_getPeople.py -t ldap

# Now update the data
rm -f /var/adm/ldapUpdate.log
/usr/local/bin/ldapmodify -c -f account.ldif > /var/adm/ldapUpdate.log
/usr/local/bin/ldapmodify -c -f people.ldif >> /var/adm/ldapUpdate.log
/usr/local/bin/ldapmodify -c -f unixGroup.ldif >> /var/adm/ldapUpdate.log

/usr/local/etc/periodic/daily/05.ldapUpdate.local

3. Client support

Detailed instructions on how to use various clients with the CGL LDAP repository is beyond the scope of this document. We have tested Thunderbird, Apple's Address Book, and a couple of other address book and LDAP clients and all work quite well. In general, in order to configure your client, you will need the following information:

  • Server: socrates.cgl.ucsf.edu
  • Search Base: ou=People,dc=cgl,dc=ucsf,dc=edu
  • Port: the default (389) is fine
  • Scope: Subtree

Apple's Directory Services and we're told, the new version of the Thunderbird address book features will provide the ability to map entries to the various fields in user Cards. The attributes are described above in the sample entry.

4. LDAP Lookup Web Page

One of the requirements for operation of the Identity portion of CGLAUTH is the ability for users to maintain their own information -- i.e. so-called self-service. This capability is provided through the LDAP Lookup page shown below. The two images show the top and bottom half of the page, respectively.

CGL LDAP Lookup Page (top)

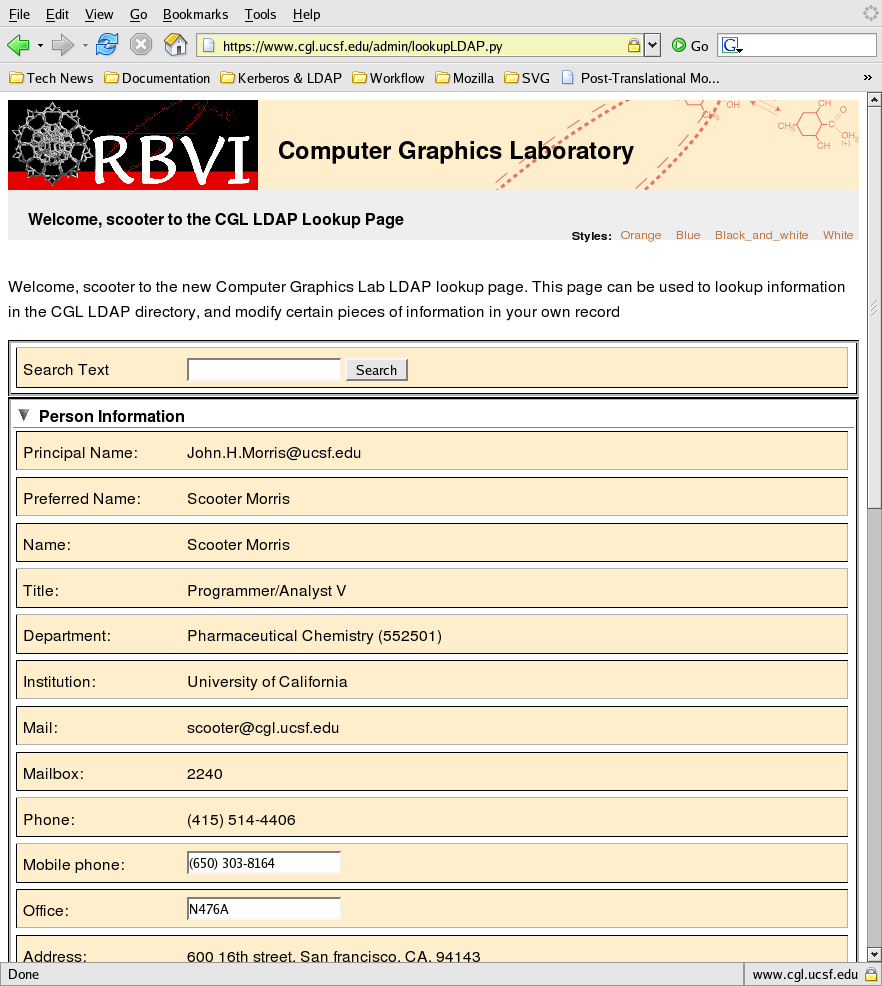

Figure 5 - CGL LDAP Lookup Page (top half)

CGL LDAP Lookup Page (bottom)

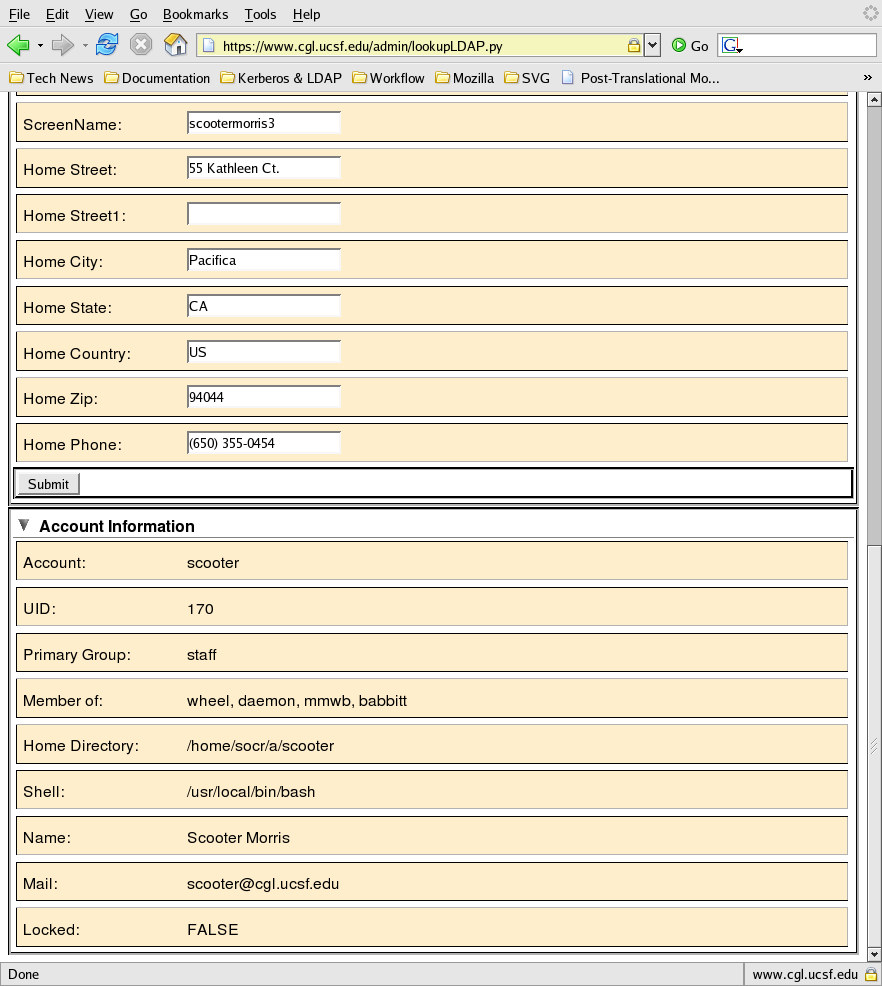

Figure 6 - CGL LDAP Lookup Page (bottom half)

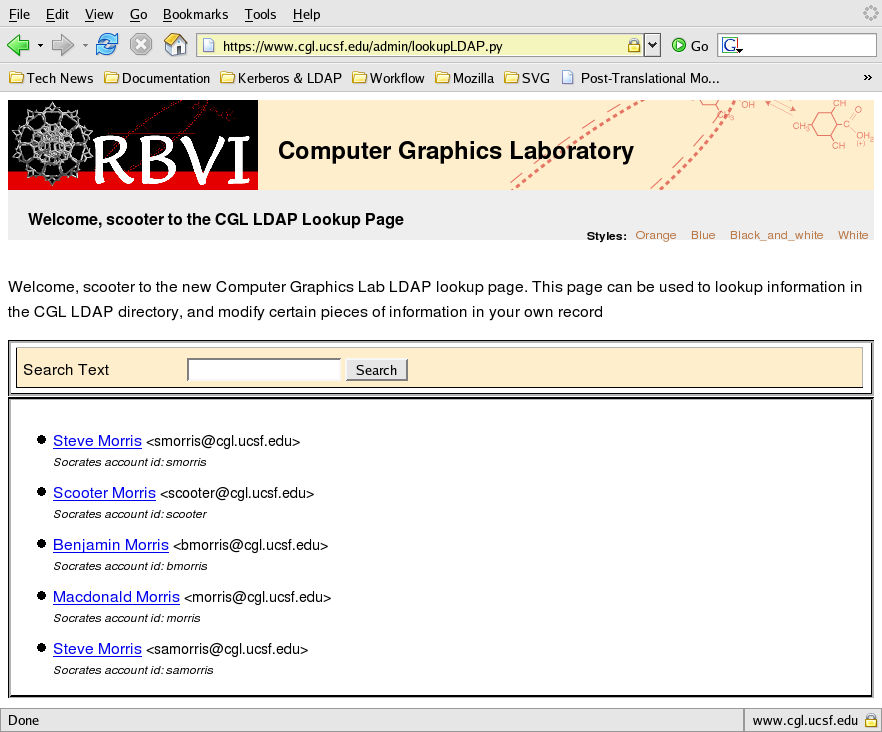

The next image demonstrates that lookups do not have to be unique. If the LDAP server returns multiple entries, the entries are presented as a link along with some identifying information. Pressing on the link will take you to the appropriate page for that entry.

CGL LDAP Lookup Page - Multiple Hits

Figure 7 - CGL LDAP Lookup Page (Multiple hits)
