Relational Database Technology

Relational Database Technology

John "Scooter" Morris

March 29, 2012

Overview

  • Data modeling review
  • Relational algebra
  • SQL
  • From model to schema

Limitations

  • What am I not telling you about?
    • database normalization
    • object-based approaches to database design
    • object-relational mapping
    • .... too much more to mention ....
  • Ask questions!

Example Problem

A system to automate the tracking and documentation of plasmid construction

  • Terminology:
    • fragment: a length of double-stranded DNA
    • plasmid: a circular fragment
    • recipe: a series of manipulations of the DNA to produce a new plasmid with cDNA of interest inserted
    • ACL: access control list
  • Needs:
    • Data processing -- convert raw data into results
    • Visualization -- a way to visualize the results
    • Data storage -- store the results (and perhaps the raw data)

Example problem

Data Modeling

  • The FIRST Step

  • Structured way to understand the data semantics

  • Independent of underlying platform

  • Way to communicate with team members (including users)

  • Excellent (minimal?) documentation

  • Example: ER Diagrams

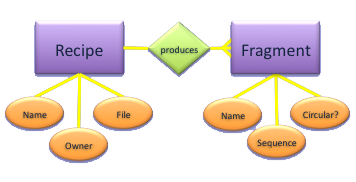

ER Diagrams

Types of Databases

  • Flat-file
  • Hierarchical
  • Network
  • Relational
  • Object
  • Object-Relational

Flat-File Databases

  • No database-enforced (or provided) linkage between records
  • Excellent for small or special-purpose databases
  • Might include support for single or multiple indexes
  • Major feature: ease of use (Filemaker, Access)
  • Major drawback: scalability & flexibility
  • e.g.:
    • ndbm
    • Berkeley DB (Sleepycat DB)
    • vi, grep, sed
    • FileMaker
    • Access

Hierarchical Databases

    • Relationship between Recipe and Fragment is one-to-many (master-detail)
    • Assume two recipes: r1.cr and r2.cr
      • r1.cr produces 2 plasmids and 1 fragment:
        • r1.p1, r1.p2, and r1.f1
      • r2.cr produces 2 fragments:
        • r2.f1, and r2.f2

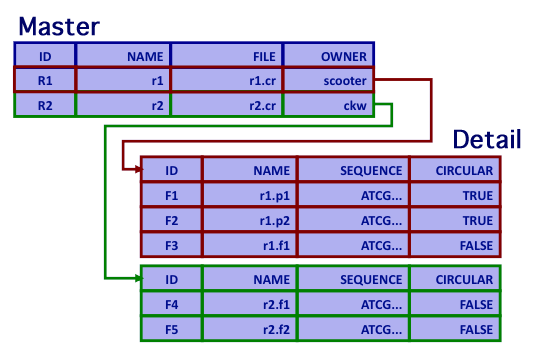

Hierarchical Databases

Hierarchical Databases

  • Database provides explicit master-detail support
  • Ideal for many business applications
  • Restricted to a strict hierarchy
  • Queries down the hierarchy are very efficient
  • Any other queries are very expensive
  • e.g.
    • IMS
  • What about many-to-many relationships?

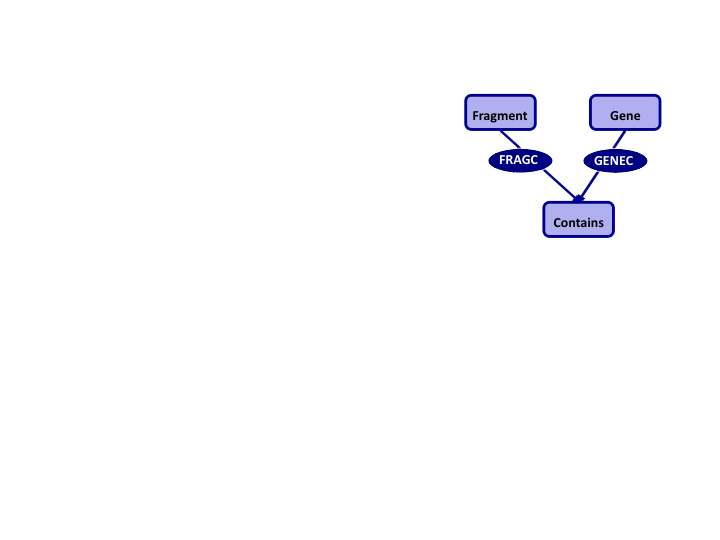

Networked Databases

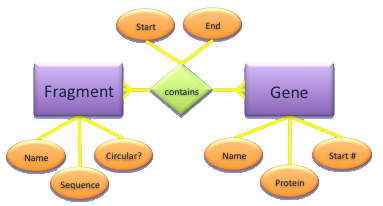

    • Fragment and Gene have a many-to-many relationship
    • Not represented well by hierarchical databases

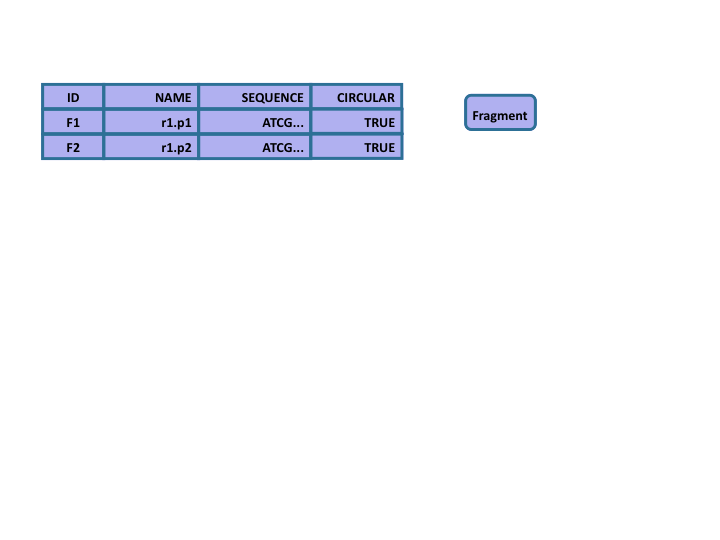

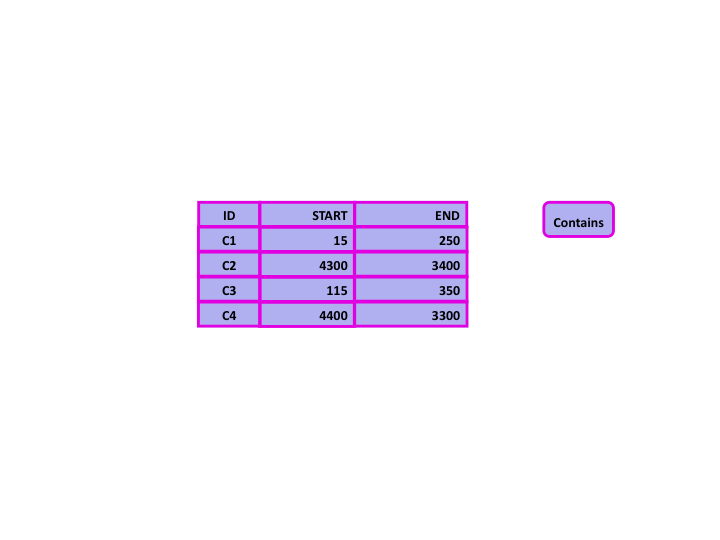

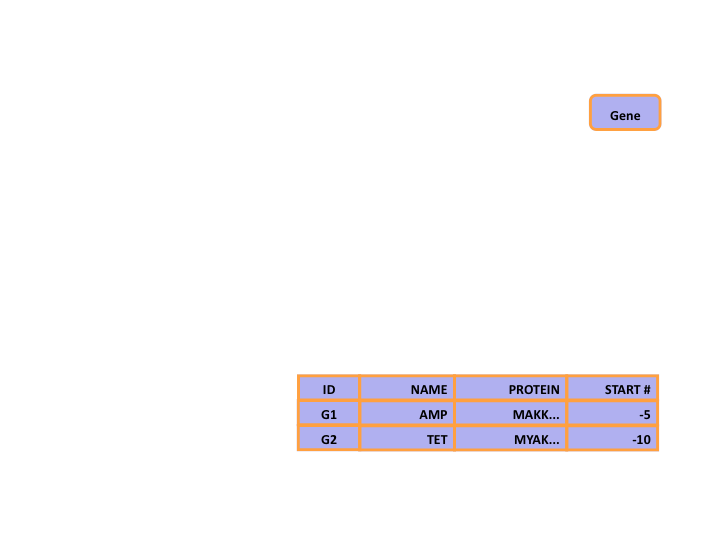

Networked Databases

Networked Databases

  • Based on set theory
  • Database provides explicit linkage support
  • Very significant design costs
  • Queries along the connection path are very efficient
  • Any other queries are very expensive
  • e.g.
    • CODASYL
  • What if I want to "discover" other relationships?

Relational Databases

  • Foundation of most production databases
  • Based on relational calculus and relational algebra
  • Allows ad-hoc query capability across record types
  • Supports a standard query language (SQL)
  • Can support either hierarchical or network models
  • Attributes are limited to basic types
  • e.g.
    • SQLite
    • MySQL
    • Derby
    • Oracle
    • DB2

Relational Databases

  • Based on relational views (tables)
  • Associations are based on data values, not expressed linkages
  • All data is expressed in tables
  • Terminology:
    • Rows are called tuples
    • Columns (attributes) are of a common domain (type)

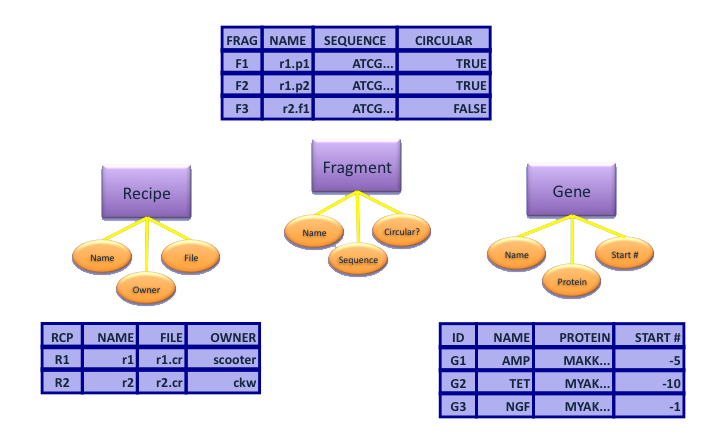

ER → Relational Schema

    • First, combine any entities with a one-to-one relationship
    • Next define tables for our entities:
    • Note that we've added a new attribute to serve as the primary key for each entity

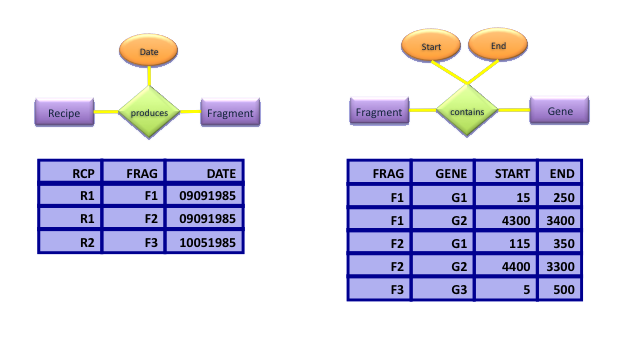

ER → Relational Schema

    • Now define tables for relationships, adding attributes for the associations:

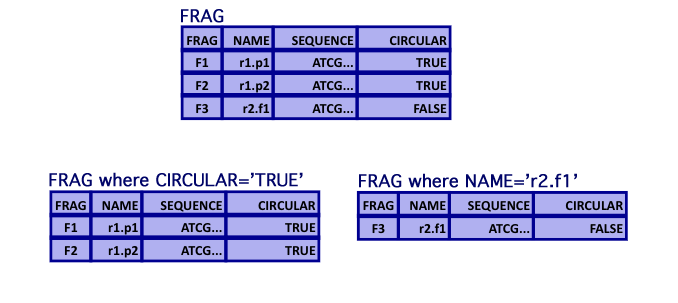

Relational Algebra: Selection

    • Selection
      • Selection of tuples based on Boolean criteria

Relational Algebra: Projection

    • Projection
      • Selection of attributes

Relational Algebra: Inner Join

    • Inner Join
      • Matrix product of two relations based on a given join predicate, where each record in the two joined tables has a matching record.
    • EquiJoin
      • Inner join where the join predicate is based on an equality.
    • Natural Join
      • Inner join where the join predicate is implicitly based on attributes with the same name in each of the join tables

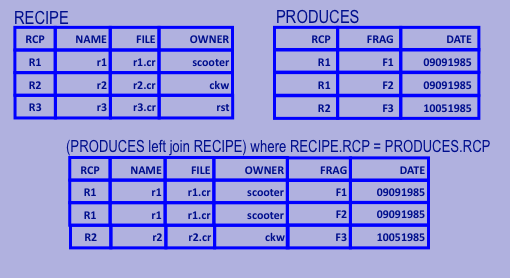

Relational Algebra: Outer Join

    • Left Outer Join
      • Join where the result contains all records from the left table, but not necessarily from the right.

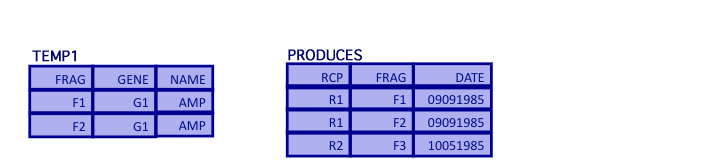

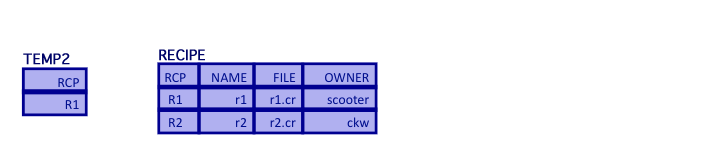

Relational Algebra: Example Query

  • Query: What recipes produce the AMP gene?
    • First, select the AMP gene from the GENE relation and join it to CONTAINS
      TEMP1 = (CONTAINS[FRAG,GENE] times GENE[ID,NAME])
              where GENE.ID=CONTAINS.GENE and GENE.NAME='AMP'

Relational Algebra: Example Query

  • Query: What recipes produce the AMP gene?
    • Second, join the result to the PRODUCES relation and select the RCP attribute
      TEMP2 = (TEMP1 join PRODUCES)[RCP]*

Relational Algebra: Example Query

  • Query: What recipes produce the AMP gene?
    • Finally, join the result to the RECIPES relation
      ANSWER =
         (TEMP2 join RECIPES) where TEMP2.RCP=RECIPES.RCP

Structured Query Language (SQL)

  • ANSI standard syntax for relational algebra
  • Supported by all major commercial relational databases
  • Also supported by many open-source efforts
    • e.g. mysql, perl's DBI/DBD
  • Will only cover:
    • CREATE
    • INSERT
    • SELECT
    • JOIN
    • UPDATE

SQL - CREATE

  • Creates database objects (databases, tables, indices)
    • SYNOPSIS:
      CREATE DATABASE database_name

      CREATE TABLE table_name
(
  column_name1 data_type,
  column_name2 data_type,
  ......
[PRIMARY KEY (column_name),]
[FOREIGN KEY (column_name) REFERENCES table_name(column_name),]
)

      CREATE [UNIQUE] INDEX index_name
      ON table_name (column_name)

SQL - CREATE

    • Examples:
      CREATE TABLE "GENE"
(
ID char(16),
NAME varchar(20),
PROTEIN varchar,
START# int,
PRIMARY KEY (ID)
);

      CREATE TABLE "PRODUCES"
(
RCP char(16),
FRAG char(16),
DATE date,
FOREIGN KEY (RCP) REFERENCES RECIPE(RCP),
FOREIGN KEY (FRAG) REFERENCES FRAG(ID)
);

      CREATE UNIQUE INDEX on GENE (ID);

SQL - INSERT

  • Inserts data into a table row
    • SYNOPSIS:
      INSERT INTO "tablename" (first_column,...last_column)
           VALUES(first_value,...last_value);
    • Example:
      INSERT INTO GENE (ID, NAME, PROTEIN, START#)
            VALUES ('G1', 'AMP', 'MAKK...', -5);

SQL - SELECT

  • Selects data from relational tables
  • Key syntax for expressing relational algebra
    • SYNOPSIS
      SELECT [DISTINCT] column1[,column2] FROM table1[,table2]
    [WHERE "conditions"]
    [GROUP BY "column-list"]
    [HAVING "conditions]
    [ORDER BY "column-list" [ASC | DESC] ]

SELECT - Selection

  • Selection
    • Selection of tuples based on Boolean criteria

SELECT - Projection

    • Projection
      • Selection of attributes

SELECT - Implicit Equijoin

  • Join (equijoin)
    • Matrix product of two relations based on equality of an attribute with the same domain

SQL - JOIN

  • Joins two or more tables together based on a join predicate. Note that the JOIN keyword is actually part of the SELECT syntax
    • SYNOPSIS:
      SELECT column1[,column2] FROM table1
           INNER JOIN table2 ON join_predicate;
      SELECT column1[,column2] FROM table1
           INNER JOIN table2 USING ( column_name);
      SELECT column1[,column2] FROM table1
           NATURAL JOIN table2;
      SELECT column1[,column2] FROM table1
           LEFT OUTER JOIN table2 ON join_predicate;
    • Where:
      • join_predicate is an equality for an Equijoin, or a comparison for any other join

SQL - INNER JOIN Examples

    • Examples:
      SELECT * FROM PRODUCES NATURAL JOIN;
      R1|F1|1985-09-09|r1|r1,cr|scooter
R1|F2|1985-09-09|r1|r1,cr|scooter
R2|F3|1985-10-05|r2|r2.cr|ckw
      SELECT * FROM PRODUCES INNER JOIN RECIPE ON PRODUCES.RCP=RECIPE.RCP;
      R1|F1|1985-09-09|R1|r1|r1,cr|scooter
R1|F2|1985-09-09|R1|r1|r1,cr|scooter
R2|F3|1985-10-05|R2|r2|r2.cr|ckw
      SELECT * FROM PRODUCES JOIN RECIPE USING(RCP);
      R1|F1|1985-09-09|r1|r1,cr|scooter
R1|F2|1985-09-09|r1|r1,cr|scooter
R2|F3|1985-10-05|r2|r2.cr|ckw

SQL - OUTER JOIN Examples

    • Assume we add a new row (R3) into the RECIPE relation
    • Outer join examples:
      SELECT * FROM PRODUCES LEFT OUTER JOIN RECIPE ON PRODUCES.RCP=RECIPE.RCP;
      R1|F1|1985-09-09|R1|r1|r1,cr|scooter
R1|F2|1985-09-09|R1|r1|r1,cr|scooter
R2|F3|1985-10-05|R2|r2|r2.cr|ckw
      SELECT * FROM RECIPE LEFT OUTER JOIN PRODUCES ON PRODUCES.RCP=RECIPE.RCP;
      R1|r1|r1,cr|scooter|R1|F1|1985-09-09
R1|r1|r1,cr|scooter|R1|F2|1985-09-09
R2|r2|r2.cr|ckw|R2|F3|1985-10-05
R3|r3|r3.cr|rst|||

SELECT -- Query Example

  • Query: What recipes produce the AMP gene?
    • First, select the AMP gene from the GENE relation and join it to CONTAINS
      CREATE TABLE TEMP1 AS
     SELECT CONTAINS.FRAG,CONTAINS.GENE,GENE.NAME FROM CONTAINS, GENE
          WHERE GENE.ID=CONTAINS.GENE AND GENE.NAME="AMP";
    • Note we're doing an implicit Equi-JOIN. To do the same thing more explicitly:
      CREATE TABLE TEMP1 AS
     SELECT CONTAINS.FRAG,CONTAINS.GENE,GENE.NAME FROM CONTAINS
     INNER JOIN GENE ON GENE.ID = CONTAINS.GENE WHERE GENE.NAME="AMP";

SELECT -- Query Example 2

  • Query: What recipes produce the AMP gene?
    • Second, join the result to the PRODUCES relation and select the RCP attribute
      CREATE TABLE TEMP2 AS
     SELECT PRODUCES.RCP FROM TEMP1,PRODUCES WHERE TEMP1.FRAG=PRODUCES.FRAG;
    • Note we're again doing an implicit Equi-JOIN. The explicit syntax would be:
      CREATE TABLE TEMP2 AS
     SELECT PRODUCES.RCP FROM TEMP1
     INNER JOIN PRODUCES ON TEMP1.FRAG = PRODUCES.FRAG;

SELECT -- Query Example 3

  • Query: What recipes produce the AMP gene?
    • Finally, join the result to the RECIPES table
      SELECT DISTINCT RECIPE.RCP, RECIPE.NAME, RECIPE.FILE, RECIPE.OWNER
     FROM TEMP2, RECIPE WHERE TEMP2.RCP = RECIPE.RCP;
      • Note the DISTINCT keyword to remove duplicate rows

SQL - Query Example (shorthand)

  • Most modern relational databases have good query optimizers
    • Usually no need to create intermediate tables:
      SELECT DISTINCT RECIPE.RCP, RECIPE.NAME, RECIPE.FILE, RECIPE.OWNER
     FROM GENE, CONTAINS, PRODUCES, RECIPE
          WHERE GENE.NAME = 'AMP' AND GENE.ID = CONTAINS.GENE
               AND CONTAINS.FRAG = PRODUCES.FRAG
               AND PRODUCES.RCP = RECIPE.RCP;

SQL - UPDATE

  • Updates data in a database
    • SYNOPSIS:
      UPDATE tablename
    SET columnname="newvalue"[,nextcolumn="newvalue2"...]
        WHERE columnname OPERATOR "value"
            [AND|OR column OPERATOR "value"];

    • Example:
      UPDATE GENE SET NAME='AMP' WHERE ID='G1';

SQL - Other Useful Commands

    • ALTER - Alter a table after it has been created
      • Add or drop columns
      • Add or drop primary or foreign keys
    • DELETE - Delete a row from a table. Syntax is similar to SELECT.
    • DROP - Delete an entire table or database
    • SQL Functions - aggregation functions that operate on the results from a select
      • Include basic statistics (STDEV,AVG,SUM,VAR), and counting functions like COUNT(column)
      • Example:
        SELECT COUNT(*) FROM RECIPE,PRODUCES
 	   WHERE RECIPE='scooter' AND RECIPE.RCP=PRODUCES.RCP;

SQL - References

Object-Relational Databases

  • Essentially an extension of the relational database model
  • Preserves the tabular (relational) organization of the data
  • Allows developers to define more complex data types (User Defined Types, UDTs)
  • No support for encapsulation or inheritance
  • Some support for methods is provided (User Defined Functions, UDFs)
  • SQL object extensions already standardized (SQL3)
  • e.g.
    • postgres
    • Oracle

Object Databases

  • Provides persistent storage of objects
  • Most useful in conjunction with object-based applications
  • Primarily a programmer's tool, although vendors are providing SQL3 and ODBC interfaces
  • e.g.
    • Objectivity

Types of Databases

  • Questions?

  • Recommended Reading:
    • Date, C.J. An Introduction to Database Systems. Reading, Mass.: Addison-Wesley (1981)
    • Codd, E.F. A Relational Model of Data for Large Shared Data Banks. CACM 13, No. 6 (June 1970)

Uses of Databases

  • ...or why do I [should you] care about this stuff?
  • Three major computing issues in bioinformatics:
    • Data processing -- convert raw data into results
    • Visualization -- a way to visualize the results
    • Data storage -- store the results (and perhaps the raw data)

Questions?

Database Access with Python

  • SQL provides a way to interact with a relational database...
  • ... but how do I access my database programmatically?
  • Lots of ways, but we're going to discuss sqlite3
  • sqlite3:
    • Provides access to SQLite from python scripts
    • Simple (maybe too simple...)
    • Basic idea is to execute SQL commands and return the response as a python list
    • Installed on socrates2

sqlite3 Example

#! /usr/bin/python

import sys
import sqlite3

try:
	# Open a connection to the database
	conn = sqlite3.connect ('bmi280.db')
	cursor = conn.cursor()

	# Execute an SQL statement -- can be pretty much any SQL
	cursor.execute("SELECT NAME, PROTEIN from GENE")
	# fetchall returns a list of lists
	rows = cursor.fetchall()
	for row in rows:
		print "%s, %s"%(row[0], row[1])

	# Close the cursor and commit any changes to the database
	cursor.close()
	conn.commit()
	conn.close()

except sqlite3.Error, e:
	# Handle any errors
	print "Error %d: %s" % (e.args[0], e.args[1])
        sys.exit (1)

AMP, MAKK...
TET, MYAK...
NGF, MYAK...

Larger sqlite3 Example

#! /usr/bin/python
import sys
import sqlite3

try:
  conn = sqlite3.connect ('bmi280.db')

  # Get a cursor we can work with
  cursor = conn.cursor()

  # Use the execute method to pass SQL commands to the database
  cursor.execute("DROP TABLE IF EXISTS `GENE`")
  # Note that we use triple quotes when we need multiple lines
  cursor.execute("""
                CREATE TABLE 'GENE'
                (
                        'ID' char(16),
                        'NAME' varchar(20),
                        'PROTEIN' longtext,
                        'START#' int,
                        PRIMARY KEY (`ID`)
                )
  """)

  cursor.execute("""
                INSERT INTO 'GENE' VALUES
                  ('G1','AMP','MAKK...',-5)
  """)
  cursor.execute("""
                INSERT INTO 'GENE' VALUES
                  ('G2','TET','MYAK...',-10)
  """)
  cursor.execute("""
                INSERT INTO 'GENE' VALUES
                  ('G3','NGF','MYAK...',-1)
  """)

  print "Number of rows inserted: %d"%cursor.rowcount


  # OK, now lets try to get some data out
  cursor.execute("SELECT NAME, PROTEIN from GENE")
  while (1):
    row = cursor.fetchone ()
    if row == None:
      break
    print "%s, %s"%(row[0],row[1])

  print "Number of rows returned: %d"%cursor.rowcount

  # Another way to do the same thing
  cursor.execute("SELECT NAME, PROTEIN from GENE")
  rows = cursor.fetchall ()
  for row in rows:
    print "%s, %s"%(row[0],row[1])

    print "Number of rows returned: %d"%cursor.rowcount

  cursor.close()
  conn.commit ()
  conn.close()

except sqlite3.Error, e:
  print "Error %d: %s" % (e.args[0], e.args[1])
  sys.exit (1)

SQLite3 Use

  • sqlite3 provides a good low-level interface
  • For most uses, probably want to wrap low-level SQL commands in Python objects
  • In the above example, a GENE might be an object
  • Might have methods to fetch (SELECT) or save (INSERT) a GENE
  • Provides some insulation from underlying SQL implementation
