Molecular Visualization with UCSF Chimera:
Getting Started
- Presentation (~30 mins):
- welcome and introductions
- UCSF Chimera, the big picture
- Hands-on tutorial:
- Getting Started - Menu Version (~35 minutes)
- Optional tutorial (available from Help menu):
- Getting Started - Command Version (~25 minutes)
General molecular visualization and analysis (sessions 1 & 2):
- many display styles and levels of abstraction
(from atomic detail to ribbons to surfaces)
- chemical perception, hydrogen addition, charge assignment
- high-quality H-bond, contact, and clash detection
- measurements: distances, angles, surface areas, RMSDs
- amino acid rotamers, Ramachandran plot
- bond rotation, structure building, multimer assembly
- structure superposition and morphing
- showing properties with colors and “worms”
- molecular dynamics trajectory playback and analysis
- interface for screening docking results
- web fetch from numerous databases,
including PDB, EDS, EMDB, ModBase, CASTp, Pub3D, VIPERdb, and UniProt
Sequence-structure tools (session 3):
- display of individual sequences and multiple sequence alignments
- sequences automatically associate with structures
- superimposing structures with or without pre-existing alignments
- generating structure-based sequence alignments from superpositions

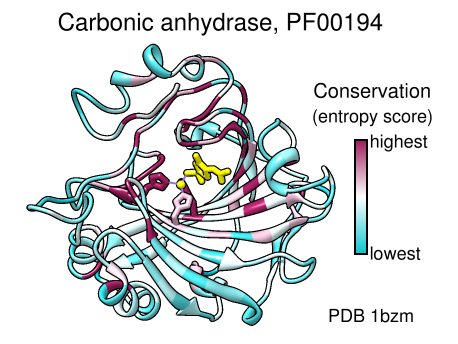

- calculation of sequence and structure conservation per alignment column
- protein BLAST search via web service
- Modeller comparative modeling via web service or local installation
Electron density maps and other “volume data” (session 5):
- many formats, display as mesh or solid isosurfaces
- interactive threshold adjustment
- map zoning around atoms of interest or pseudoatomic “markers”
- many options for smoothing, filtering, segmenting, and editing maps
- fitting of atomic coordinates to maps and maps to maps
- measurements: isosurface area, enclosed volume, map symmetry
- volume planes, time series playback, morphing
Images and movies for presentation and publication (sessions 6 & 7):
- visual effects including fog, silhouettes, shadows, and special backgrounds
- convenient presets (combinations of display settings)
- 2D labels: text, symbols, arrows, and color keys
- structure-derived geometric objects: axes, planes, centroids, ellipsoids

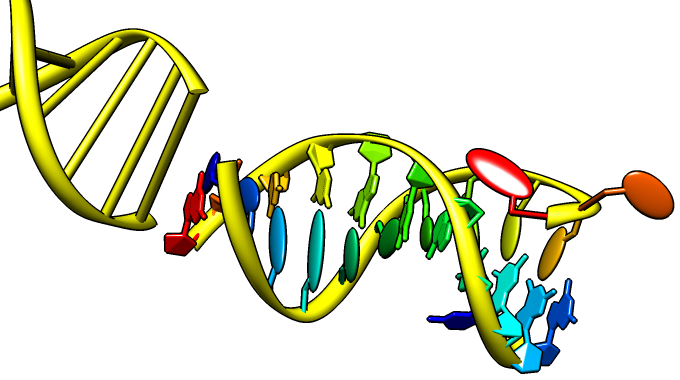

- special nucleotide representations
- morphing and trajectory playback integrated with movie recording
